Strona główna Sklep Kola Non-marking thermoplastic rubber wheel, swivel castor with a top plate and a brake — TR-38-SRP-FRA

Výrobce: Tellure Rôta

Non-marking thermoplastic rubber wheel, swivel castor with a top plate and a brake — TR-38-SRP-FRA

35,97 zł bez DPH / ks

44,24 złbrutto

Rozměr (Ø×šířka)

Ø40×18 mm

Ø50×18 mm

Ø60×25 mm

Ø75×23 mm

Ø80×24 mm

Ložisko

Plain bore

Kod produktu:

SKU:388200

Cena jednostkowa: 35,97 zł netto

Wartość netto (1 szt.) 35,97 zł

Podatek VAT (23%) 8,27 zł

Razem brutto 44,24 zł

Zobrazit veškeré podrobnosti

The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a top plate and a brake. The bracket is made of pressed galvanised steel. The variants of this version cover diameters of 40–80 mm and widths of 18–25 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-38-S
Design	swivel castor / top plate / brake
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

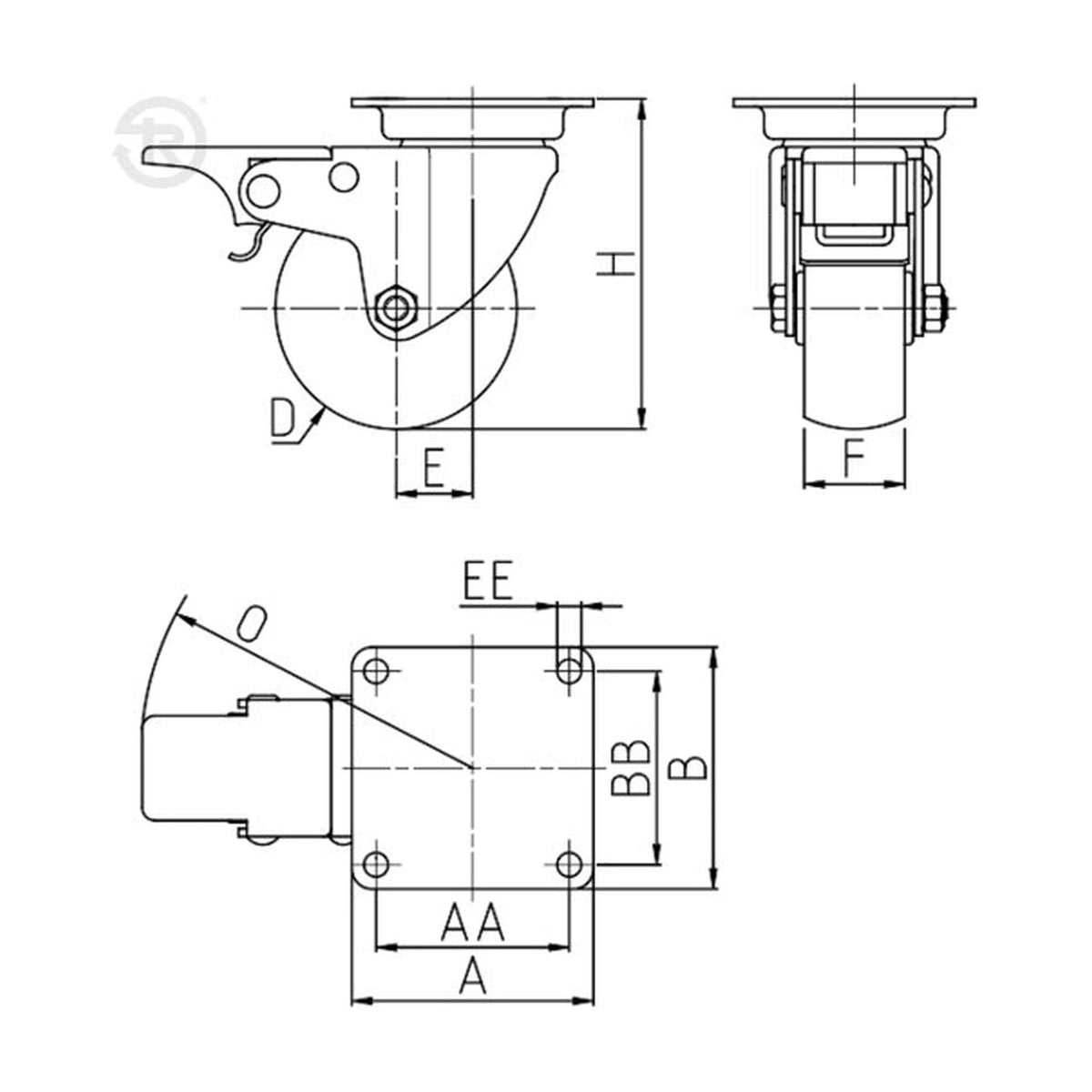

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
388200	40	18	59	42X42	31X31	5	24	—	Plain bore	0.12
388201	50	18	66	55X55	40X40	6	22	—	Plain bore	0.145
388202	60	25	83	60X60	45X45	6	21	—	Plain bore	0.26
388303	75	23	101	60X60	45X45	6	30	—	Plain bore	0.315
388203	80	24	104	60X60	45X45	6	30	—	Plain bore	0.332
