Strona główna Sklep Kola TR polyurethane wheel, swivel castor EP with a top plate — TR-65-ALL-CC-SRP-EP

Výrobce: Tellure Rôta

TR polyurethane wheel, swivel castor EP with a top plate — TR-65-ALL-CC-SRP-EP

419,81 zł bez DPH / ks

516,37 złbrutto

Rozměr (Ø×šířka)

Ø100×30 mm

Ø125×35 mm

Ø150×40 mm

Ø160×50 mm

Ø200×50 mm

Ložisko

Hub with ball bearings

Kod produktu:

SKU:657802

Cena jednostkowa: 419,81 zł netto

Wartość netto (1 szt.) 419,81 zł

Podatek VAT (23%) 96,56 zł

Razem brutto 516,37 zł

Zobrazit veškeré podrobnosti

The wheel has a TR polyurethane tread and an aluminium centre. This is a swivel castor with a top plate. This version is available in diameters of 100–200 mm and widths of 30–50 mm. The load capacity is 250–850 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65AL-EP
Design	swivel castor / top plate
Tread material	TR polyurethane
Centre material	aluminium

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

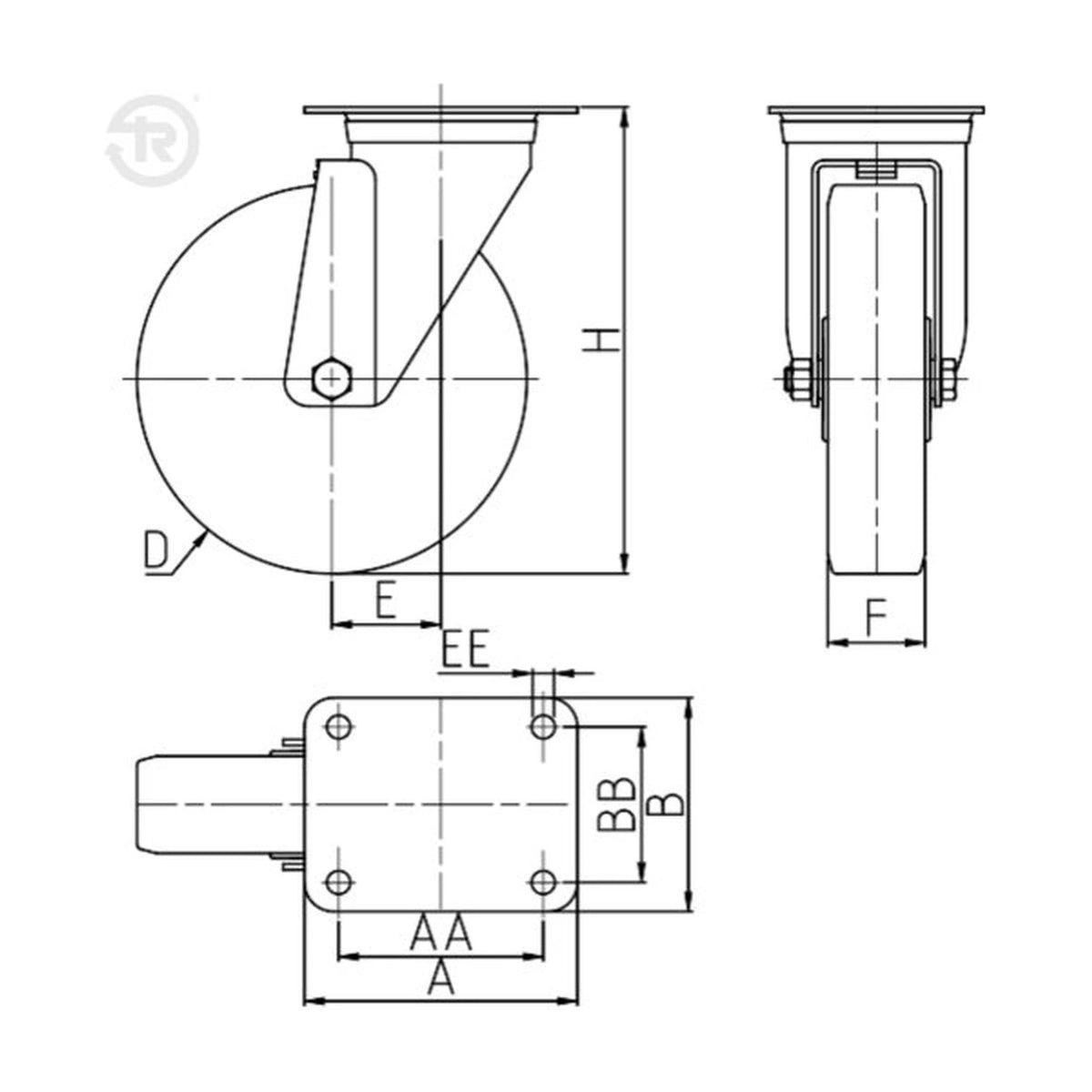

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
657802	100	30	140	100X85	80X60	9	46	250	Hub with ball bearings	1.38
657803	125	35	164	100X85	80X60	9	48	350	Hub with ball bearings	1.585
657704	150	40	200	135X110	105X80	11	70	600	Hub with ball bearings	3.44
657714	160	50	205	135X110	105X80	11	70	800	Hub with ball bearings	3.777
657706	200	50	250	135X110	105X80	11	70	850	Hub with ball bearings	4.19
