Strona główna Sklep Kola TR polyurethane wheel, fixed castor with a top plate — TR-65HT-SF-MOL

Výrobce: Tellure Rôta

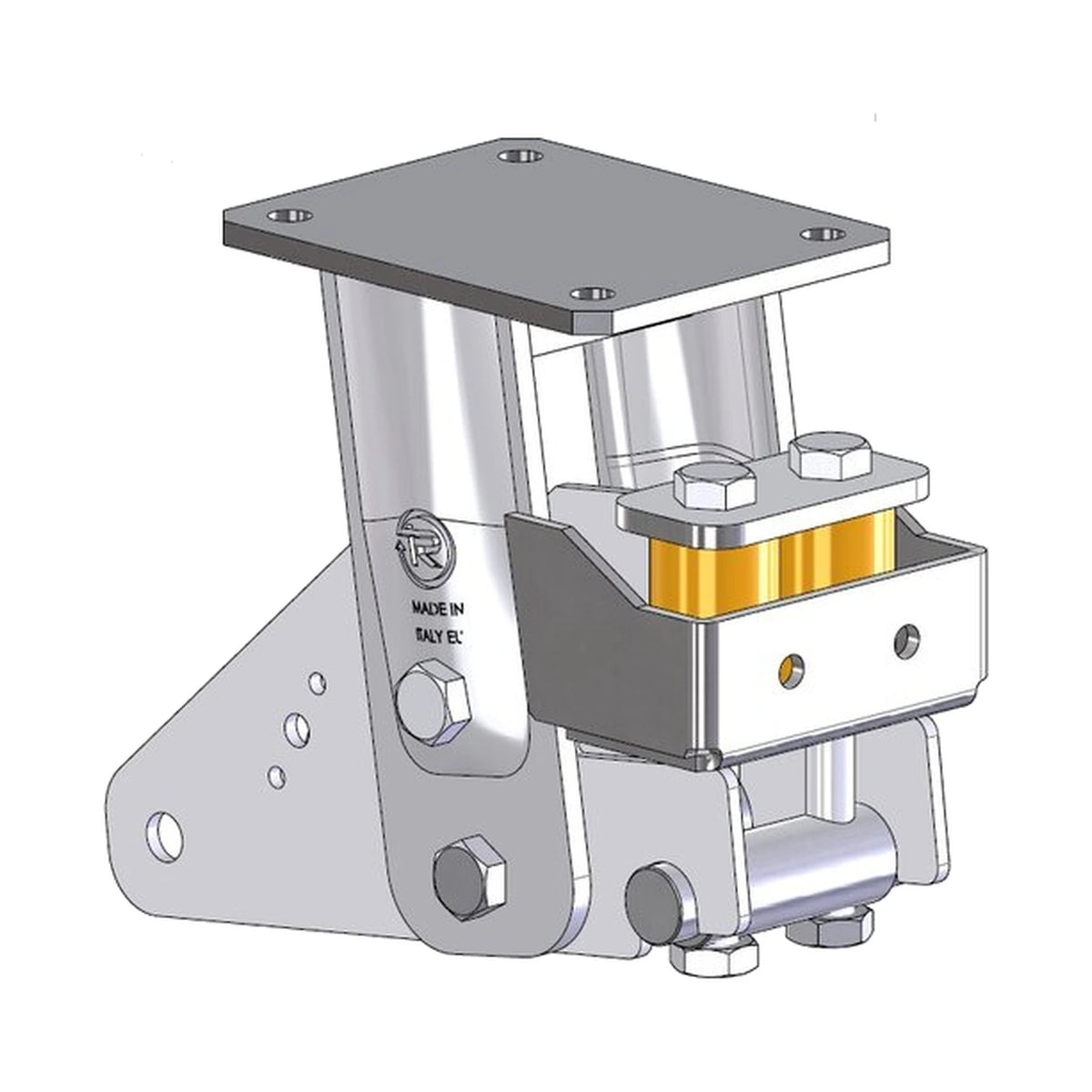

TR polyurethane wheel, fixed castor with a top plate — TR-65HT-SF-MOL

1.048,10 zł bez DPH / ks

1.289,16 złbrutto

Rozměr (Ø×šířka)

Ø160×50 mm

Ø200×50 mm

Ø250×50 mm

Ložisko

Hub with ball bearings

Kod produktu:

SKU:657104

Cena jednostkowa: 1.048,10 zł netto

Wartość netto (1 szt.) 1.048,10 zł

Podatek VAT (23%) 241,06 zł

Razem brutto 1.289,16 zł

Zobrazit veškeré podrobnosti

The wheel has a TR polyurethane tread and an aluminium centre. This is a fixed castor with a top plate. The variants of this model cover diameters of 160–250 mm, widths of 50 mm and load capacities of 700–1000 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65HT-EESMHD
Configuration	fixed castor / top plate
Tread material	TR polyurethane
Centre material	aluminium

Selection table — item specifications

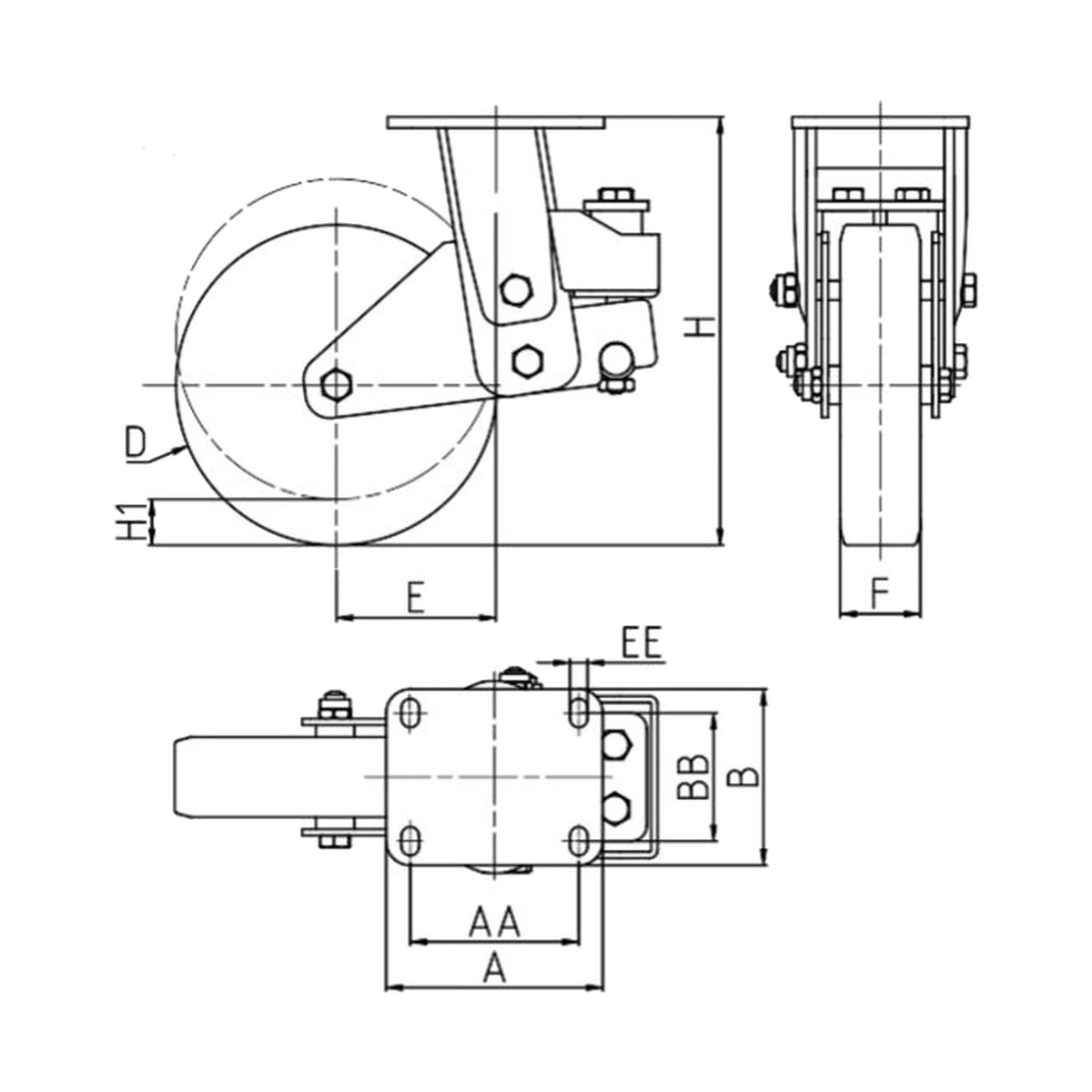

Code	Ø D (mm)	Width F (mm)	Overall height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
657104	160	50	248	135X110	700	Hub with ball bearings	5.82
657106	200	50	268	135X110	800	Hub with ball bearings	6.42
657108	250	50	316	135X110	1000	Hub with ball bearings	7.54
