Strona główna Sklep Kola Thermoplastic rubber wheel, swivel castor NL with a top plate and a brake — TR-71-SRP-NL-FR

Výrobce: Tellure Rôta

Thermoplastic rubber wheel, swivel castor NL with a top plate and a brake — TR-71-SRP-NL-FR

79,10 zł bez DPH / ks

97,29 złbrutto

Rozměr (Ø×šířka)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×35 mm

Ø150×45 mm

Ø200×50 mm

Ložisko

Plain bore

Hub with roller bearings

Kod produktu:

SKU:716601

Cena jednostkowa: 79,10 zł netto

Wartość netto (1 szt.) 79,10 zł

Podatek VAT (23%) 18,19 zł

Razem brutto 97,29 zł

Zobrazit veškeré podrobnosti

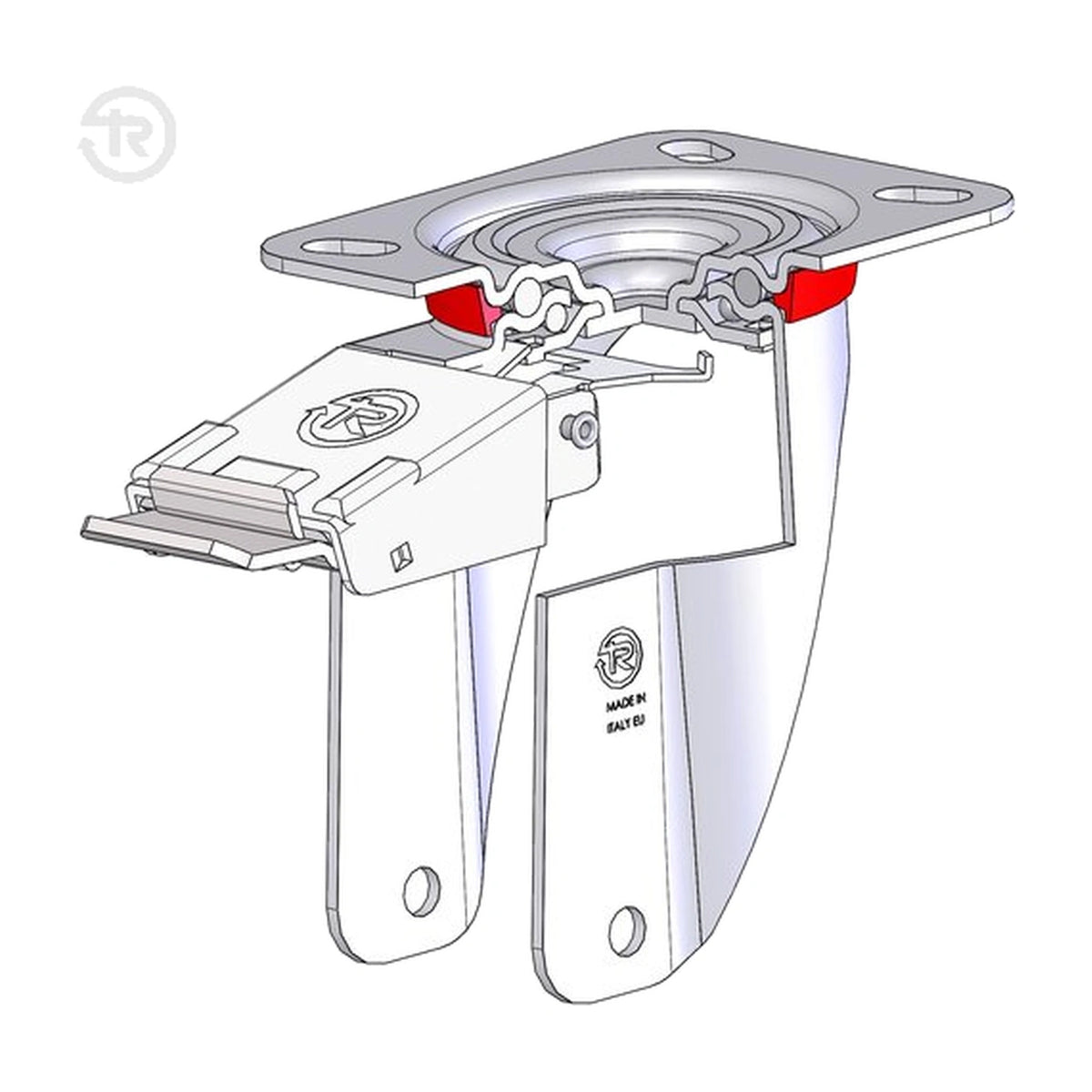

A grey, non-marking thermoplastic rubber tread with a hardness of 85 Shore A is paired with a polypropylene centre. The swivel NL bracket of pressed, zinc-plated steel has a greased double ball race; the front brake locks both wheel rotation and swivel rotation. This castor is intended for trolleys used in internal logistics and lean operations. This version is available with diameters of 80–200 mm, widths of 30–50 mm and load capacities of 70–225 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-71-NL
Configuration	swivel castor / top plate / brake
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Height H (mm)	Plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
716601	80	30	107	100X85	80X60	9	40	70	Plain bore	0.79
716621	80	30	107	100X85	80X60	9	40	70	Hub with roller bearings	0.82
716602	100	30	128	100X85	80X60	9	35	100	Plain bore	0.85
716622	100	30	128	100X85	80X60	9	35	100	Hub with roller bearings	0.86
716603	125	35	156	100X85	80X60	9	37	120	Plain bore	1
716623	125	35	156	100X85	80X60	9	37	120	Hub with roller bearings	1.03
716604	150	35	182	100X85	80X60	9	34	140	Plain bore	1.14
716624	150	35	182	100X85	80X60	9	34	140	Hub with roller bearings	1.16
716611	150	45	194	140X110	105X80	11	56	180	Plain bore	2
716631	150	45	194	140X110	105X80	11	56	180	Hub with roller bearings	2.05
716606	200	50	240	140X110	105X80	11	56	225	Plain bore	2.35
716626	200	50	240	140X110	105X80	11	56	225	Hub with roller bearings	2.34
