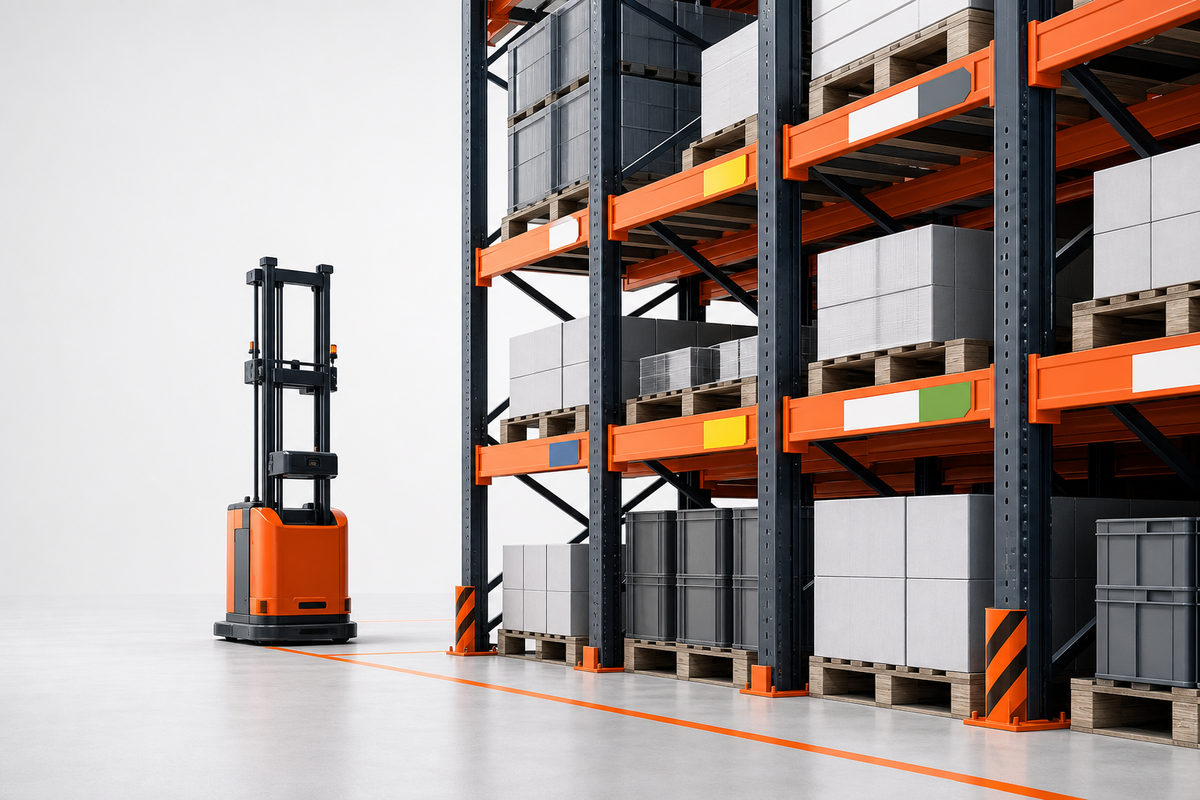

A legible rack before automation rolls in — addressing and colour coding

Before an automated system rolls onto the shop floor — an autonomous truck, an inventory drone or an AMR — the rack has to be readable. Rack addressing, a uniform colour code and clear marking of exceptions are the physical language of the warehouse, which determines whether technology will genuinely speed up work or merely show faster where the process is falling apart. An automated system does not interpret intentions — it reads what it sees, and if a location is ambiguous, the error becomes repeatable.

Automation does not fix an illegible rack — it exposes it

This is well illustrated by the deployment of the Corvus Robotics drone inventory system at the distributor Southern Glazer's, extended to nine distribution centres. After around 5,000 flights, the system detected more than 35,000 inventory discrepancies, and the company moved from quarterly to fortnightly stocktaking and recorded a productivity gain of around 100 basis points in cases per hour (Modern Materials Handling).

The conclusion for every warehouse is simple: more frequent and more accurate stock validation genuinely increases productivity — but only if the machine has something to read. A drone, camera or AMR scanner does not "guess" which location it is standing at. It reads the address, the zone colour and the status marking. If these signals are weak, the device will not so much put the warehouse in order as expose every gap in its visual standard. That is why rack legibility is not cosmetic work done after implementation, but a precondition that needs to be settled beforehand.

Rack addressing that reads from a distance and at an angle

The most common mistake is a label that is correct close up but useless from a distance or at a different angle — which is exactly how most automated systems and operators on the move "look". Effective rack addressing meets several conditions, regardless of the technology that reads it.

• Unambiguous address logic. Row, column, level and slot should form one predictable pattern for the whole shop floor, not the dialects of individual departments. A person learns such an address once, and the system does not have to handle exceptions to the rule.
• Visibility from a distance. The address should be readable from across the aisle, not at arm's length. Characters that are too small lengthen picking and multiply mistakes, because the operator or sensor confirms the location only from close up.
• Contrast and durability. A dark character on a light background stays legible in poorer light and after months of use. A faded or worn label is a location the machine will not confirm unambiguously.
• Consistent placement. A label always at the same point on the beam means that both the person and the scanner know where to look for it, instead of scanning the entire rack.

An address that meets these conditions shortens the response time to a discrepancy. In practice, this means durable, high-contrast rack labels in a consistent format across the whole shop floor — because automation rewards the warehouse that speaks with one voice, not several at once.

A uniform colour code instead of visual noise

Colour is the fastest carrier of information on the shop floor — provided it follows a rule. If every department marks things "its own way", colours stop carrying meaning and turn into visual noise that slows down both people and autonomous systems. A scalable standard starts with one decision: assigning a specific meaning to a specific colour and maintaining it throughout the facility.

A colour code works best where it organises categories that a person must recognise in a split second: set-down zones versus buffers, traffic routes versus work areas, released material versus blocked material. Colour does not replace the address — it complements it, providing the first, instant signal of "where am I and what is allowed here". For an automated system, a consistent zone code is an additional, unambiguous layer of context; for an operator, it is the difference between moving with confidence and having to ask.

It is worth extending the same standard from the rack to the floor. Coloured floor marking tapes and floor markers mark out routes and areas in the same colour logic as the markings on the beams, so that the "language of the shop floor" is one and the same — from floor level to the highest storage level.

Marking exceptions — or what happens when something doesn't match

Regular, more frequent stocktaking — such as the fortnightly counts at Southern Glazer's instead of quarterly ones — reveals discrepancies much more often. That is only good news if the warehouse has a ready language for exceptional situations. Simply detecting 35,000 discrepancies achieves nothing if, once they are found, nobody knows who responds, within what time and how the problem zone is marked.

A mature standard describes an exception just as precisely as the normal state:

• Location block. A visible marking that the slot is excluded from picking until the matter is resolved — so that nobody picks from a location affected by a discrepancy.
• Quarantine or verification zone. A separate, unambiguously marked area where material requiring checking is placed, instead of being set down "temporarily" next to it.
• Response rule. A simple record: who checks, within what time, and how the marking is removed once the matter is closed. Without this, the exception marking takes on a life of its own and stops meaning anything.

An exception that is named and visible shortens the response time to a discrepancy. An exception kept "in the supervisor's head" comes back as the same error at the next stocktake.

The physical language of the warehouse has several layers

A legible rack is not the result of a single element, but of a consistent set of layers that all say the same thing. The location address answers the question "where", the colour code answers "what is allowed here", and exception marking answers "what to do when it doesn't match". On top of this comes legibility in poorer light — this is where photoluminescent signs play a role, keeping critical markings visible regardless of lighting conditions on the night shift.

The order matters: first put the labels and zones in order, then add automation. Implementations that start with the physical language of the warehouse give the machine a stable, unambiguous picture to read — and only then do the drone, AMR or scanner genuinely shorten the stocktaking cycle, instead of producing an endless list of discrepancies.

Rack legibility checklist before automation

• Is the location address readable from across the aisle, rather than only from close up?
• Is the address logic (row–column–level–slot) identical across the whole shop floor?
• Are the labels high-contrast, and do they stay legible in poorer light?
• Does the colour code have one rule for the whole facility, rather than a separate one per department?
• Are set-down zones, buffers and routes visually separated on the rack and on the floor?
• Is there a visible marking for a location block and a verification zone?
• For an exception, is it written down who responds, within what time and how the marking is removed?

If the answer to even one question is "no", that is the place where automation will first show the cost of the mess before it starts generating savings.

FAQ

Is rack addressing needed if the AMR uses a digital map anyway?

A digital map describes the route, not the contents of the slot. Verifying stock — whether a given location holds what it should — still requires reading a physical marking. A legible, consistent address shortens this reading and reduces discrepancies that the automated system would catch anyway, only later and at greater cost.

Where should you start when putting a colour code in order?

With a single table of meanings: a colour assigned to a specific category (e.g. set-down zone, buffer, blocked material) that applies throughout the facility. Only then roll it out on the racks and the floor in the same logic, so that the markings do not start contradicting each other between departments.
