Strona główna Sklep Kolesá Non-marking thermoplastic rubber wheel, swivel castor with a top plate and a brake — TR-38NX-SRP-FR

Výrobca: Tellure Rôta

Non-marking thermoplastic rubber wheel, swivel castor with a top plate and a brake — TR-38NX-SRP-FR

113,38 zł bez DPH / ks

139,46 złbrutto

Rozmer (Ø×šírka)

Ø75×23 mm

Ø50×24 mm

Ø60×25 mm

Ložisko

Plain bore

Kod produktu:

Jednotka SKU:388303NX

Cena jednostkowa: 113,38 zł netto

Wartość netto (1 szt.) 113,38 zł

Podatek VAT (23%) 26,08 zł

Razem brutto 139,46 zł

Zobraziť všetky podrobnosti

The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a top plate and a brake. The bracket is made of stainless steel. The variants of this version cover diameters of 50–75 mm and widths of 23–25 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-38-X
Design	swivel castor / top plate / brake
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

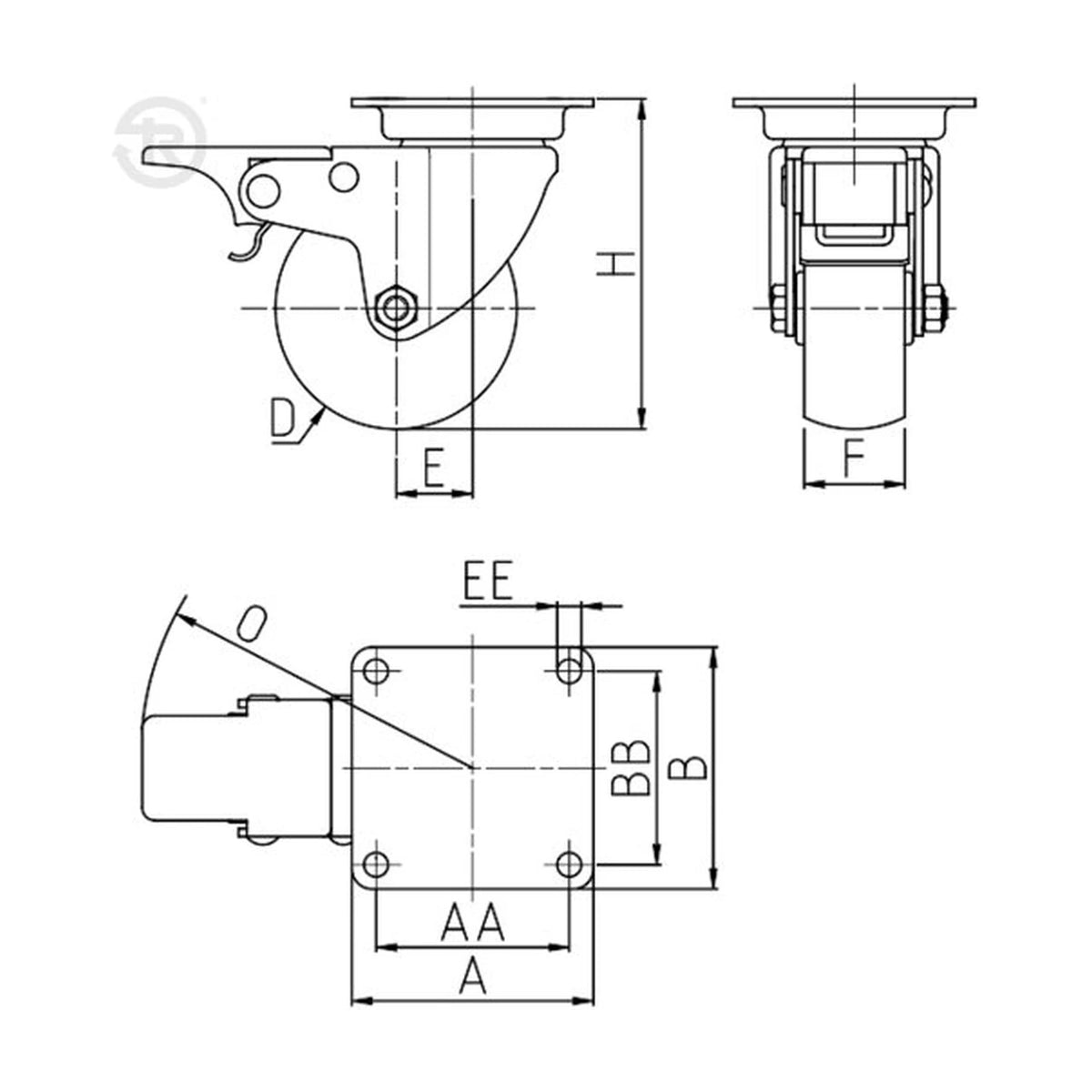

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
388303NX	75	23	101	60X60	45X45	6	30	—	Plain bore	0.3
388211NX	50	24	71	60X60	45X45	6	22	—	Plain bore	0.24
388202NX	60	25	83	60X60	45X45	6	21	—	Plain bore	0.26
