Strona główna Sklep Kolesá TR-PowerHigh polyurethane wheel, electrowelded fixed castor with a top plate – TR-58-SF-EE-MHD

Výrobca: Tellure Rôta

TR-PowerHigh polyurethane wheel, electrowelded fixed castor with a top plate – TR-58-SF-EE-MHD

489,29 zł bez DPH / ks

601,83 złbrutto

Rozmer (Ø×šírka)

Ø125×50 mm

Ø150×50 mm

Ø160×50 mm

Ø200×50 mm

Ø250×50 mm

Ložisko

Hub with ball bearings

Kod produktu:

Jednotka SKU:588403

Cena jednostkowa: 489,29 zł netto

Wartość netto (1 szt.) 489,29 zł

Podatek VAT (23%) 112,54 zł

Razem brutto 601,83 zł

Zobraziť všetky podrobnosti

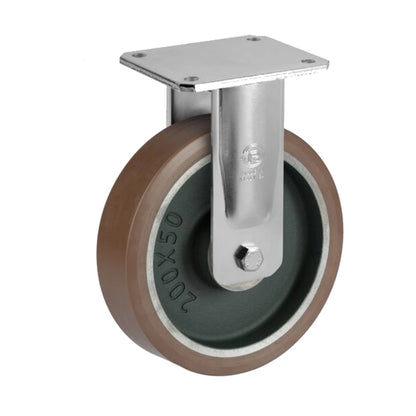

The wheel has a TR-PowerHigh polyurethane tread and a cast iron centre. This is a fixed castor with a top plate. This version is available in diameters of 125–250 mm, widths of 50 mm and load capacities of 750–1250 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-58GH-EEMHD
Design	fixed castor / top plate
Tread material	TR-PowerHigh polyurethane
Centre material	cast iron

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
588403	125	50	182	135X110	750	Hub with ball bearings	3.9
588404	150	50	210	135X110	900	Hub with ball bearings	4.51
588414	160	50	215	135X110	900	Hub with ball bearings	4.66
588406	200	50	252	135X110	1100	Hub with ball bearings	5.79
588437	250	50	300	135X110	1250	Hub with ball bearings	5.79
