Strona główna Sklep Kolesá Thermoplastic polyurethane wheel, swivel castor NL with a top plate — TR-61-SRP-NL

Výrobca: Tellure Rôta

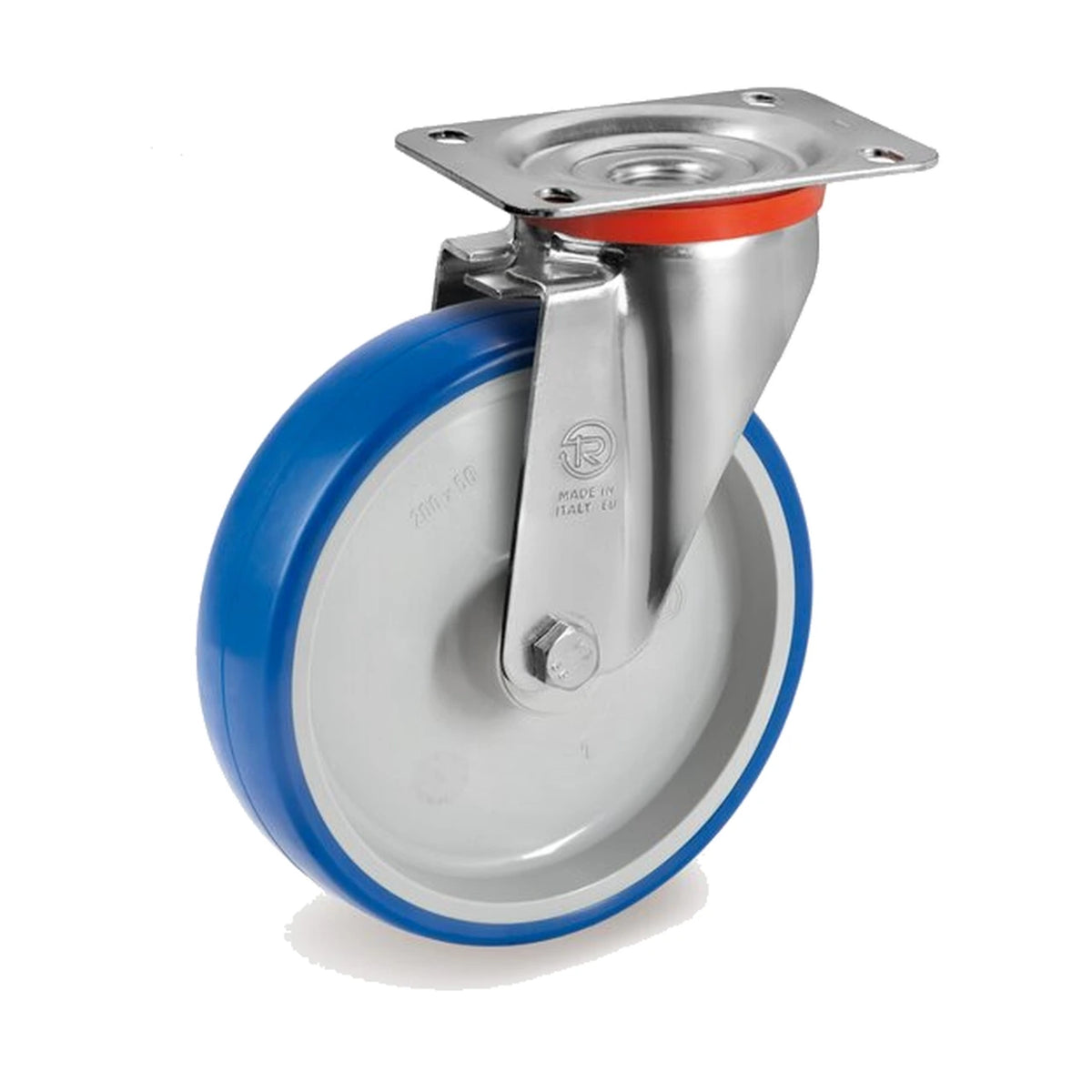

Thermoplastic polyurethane wheel, swivel castor NL with a top plate — TR-61-SRP-NL

53,87 zł bez DPH / ks

66,26 złbrutto

Rozmer (Ø×šírka)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×35 mm

Ø150×45 mm

Ø200×50 mm

Ložisko

Plain bore

Hub with roller bearings

Kod produktu:

Jednotka SKU:614201

Cena jednostkowa: 53,87 zł netto

Wartość netto (1 szt.) 53,87 zł

Podatek VAT (23%) 12,39 zł

Razem brutto 66,26 zł

Zobraziť všetky podrobnosti

The wheel has a thermoplastic polyurethane tread and a polyamide 6 centre. The swivel castor uses a top plate mounting. This version covers wheel diameters of 80–200 mm, widths of 30–50 mm and load capacities of 75–300 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-61-NL
Configuration	swivel castor / top plate
Tread material	thermoplastic polyurethane
Centre material	polyamide 6

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
614201	80	30	107	100X85	75	Plain bore	0.62
614501	80	30	107	100X85	75	Hub with roller bearings	0.63
614202	100	30	128	100X85	120	Plain bore	0.74
614502	100	30	128	100X85	120	Hub with roller bearings	0.75
614203	125	35	156	100X85	180	Plain bore	0.91
614503	125	35	156	100X85	180	Hub with roller bearings	0.92
614204	150	35	182	100X85	220	Plain bore	1.08
614504	150	35	182	100X85	220	Hub with roller bearings	1.11
614211	150	45	194	140X110	250	Plain bore	1.83
614511	150	45	194	140X110	250	Hub with roller bearings	1.98
614206	200	50	240	140X110	300	Plain bore	2.23
614506	200	50	240	140X110	300	Hub with roller bearings	2.27
