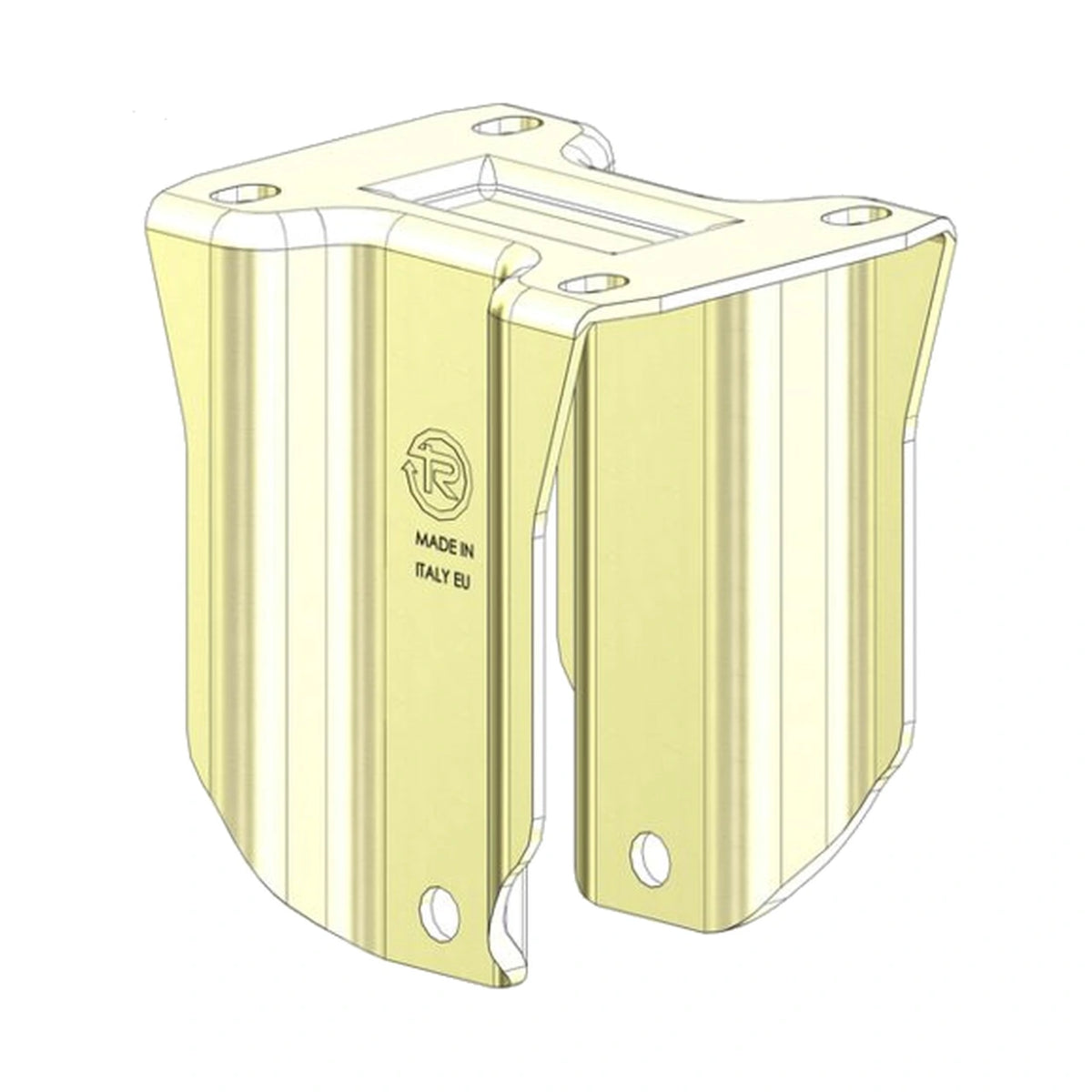

Thermoplastic polyurethane wheel, fixed castor P with a top plate — TR-60CC-SF-P

83,58 zł net / pc

102,80 złbrutto

Dimensions (Ø×width)

Ø100×30 mm

Ø125×35 mm

Ø150×45 mm

Ø160×50 mm

Ø200×50 mm

Ø250×50 mm

Rolling elements

Hub with ball bearings

Product code:

SKU:608222

Unit price: 83,58 zł netto

Net value (1 pcs) 83,58 zł

VAT (23%) 19,22 zł

Total gross 102,80 zł

View full details

The wheel has a thermoplastic polyurethane tread and a polyamide 6 centre. This is a fixed castor with a top plate. The variants of this model cover diameters of 100–250 mm, widths of 30–50 mm and load capacities of 200–750 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-60CC-P
Design	fixed castor / top plate
Tread material	thermoplastic polyurethane
Centre material	polyamide 6

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
608222	100	30	138	100X85	200	Hub with ball bearings	0.67
608223	125	35	161	100X85	250	Hub with ball bearings	0.76
608231	150	45	200	140X110	350	Hub with ball bearings	1.98
608230	160	50	205	140X110	400	Hub with ball bearings	2.08
608226	200	50	250	140X110	450	Hub with ball bearings	2.59
608228	250	50	298	140X110	750	Hub with ball bearings	3.3
