TR polyurethane wheel, fixed castor (P) with a top plate

Strona główna Sklep TR Polyurethane Wheels — TR-64-P-PT TR polyurethane wheel, fixed castor (P) with a top plate — TR-64-SF-P

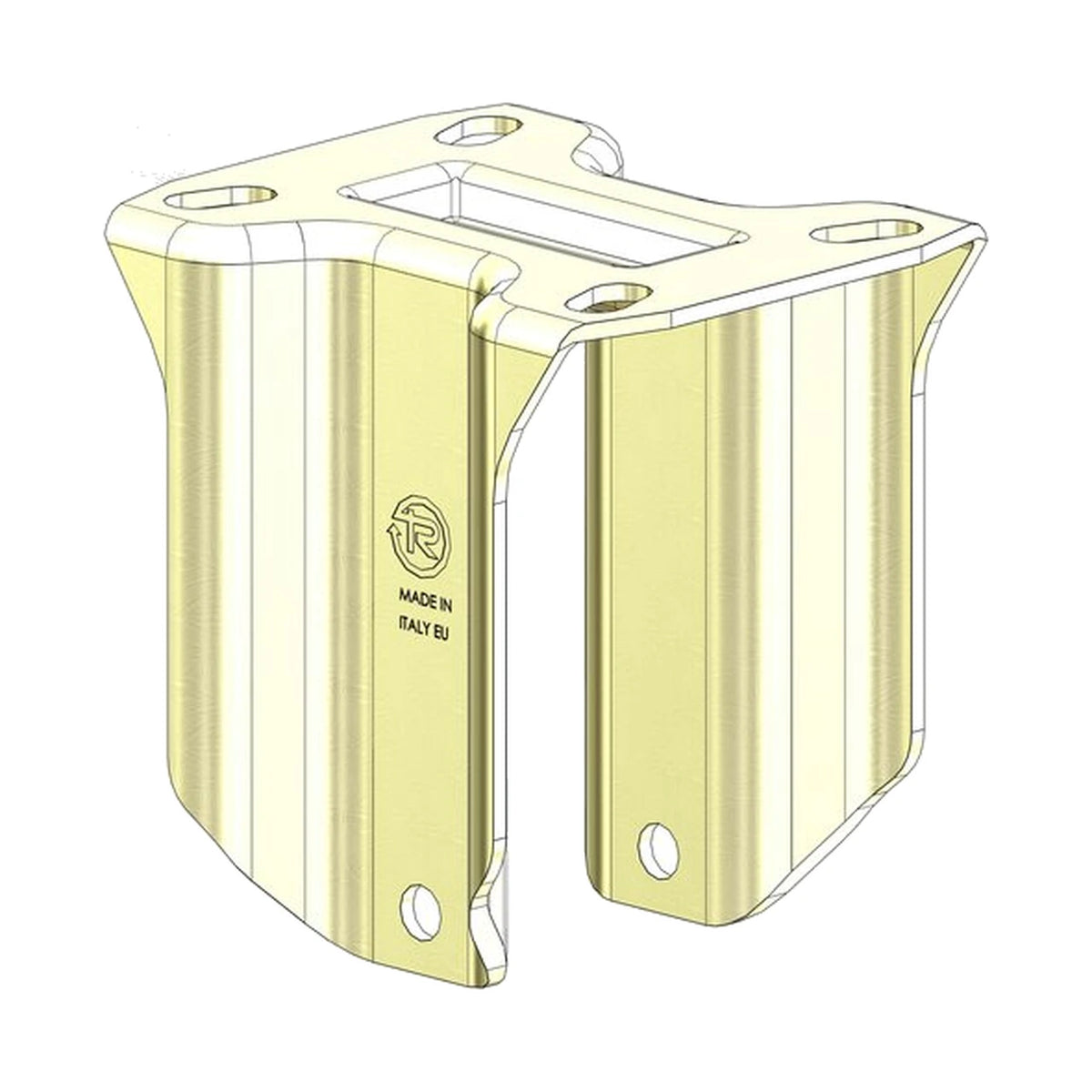

The wheel has a TR polyurethane tread and a cast iron centre. This is a fixed castor with a top plate. The variants of this model cover diameters of 80–250 mm, widths of 28–50 mm and load capacities of 280–900 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-64-P-PT
Design	fixed castor / top plate
Tread material	TR polyurethane
Centre material	cast iron

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
646851	80	28	128	100X85	280	Hub with ball bearings	0.96
646852	100	38	138	100X85	350	Hub with ball bearings	1.52
646853	125	38	161	100X85	350	Hub with ball bearings	2.04
646863	125	50	170	140X110	550	Hub with ball bearings	2.65
646854	150	50	200	140X110	750	Hub with ball bearings	3.55
646864	160	50	205	140X110	750	Hub with ball bearings	4.08
646855	180	50	228	140X110	900	Hub with ball bearings	4.45
646856	200	50	250	140X110	900	Hub with ball bearings	5.15
646867	250	50	298	140X110	900	Hub with ball bearings	5.15
