TR polyurethane wheel, fixed castor NL with a top plate — TR-65-ALL-CC-SF-NL

95,61 zł net / pc

117,60 złbrutto

Dimensions (Ø×width)

Ø80×25 mm

Ø100×30 mm

Ø125×35 mm

Ø150×40 mm

Ø160×50 mm

Ø200×50 mm

Rolling elements

Hub with ball bearings

Top plate

100×85 mm

140×110 mm

Product code:

SKU:658201

Unit price: 95,61 zł netto

Net value (1 pcs) 95,61 zł

VAT (23%) 21,99 zł

Total gross 117,60 zł

View full details

The wheel has a TR polyurethane tread and an aluminium centre. This is a fixed castor with a top plate. The variants of this model cover diameters of 80–200 mm and widths of 25–50 mm. The load capacity is 200–300 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65AL-NL
Design	fixed castor / top plate
Tread material	TR polyurethane
Centre material	aluminium

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

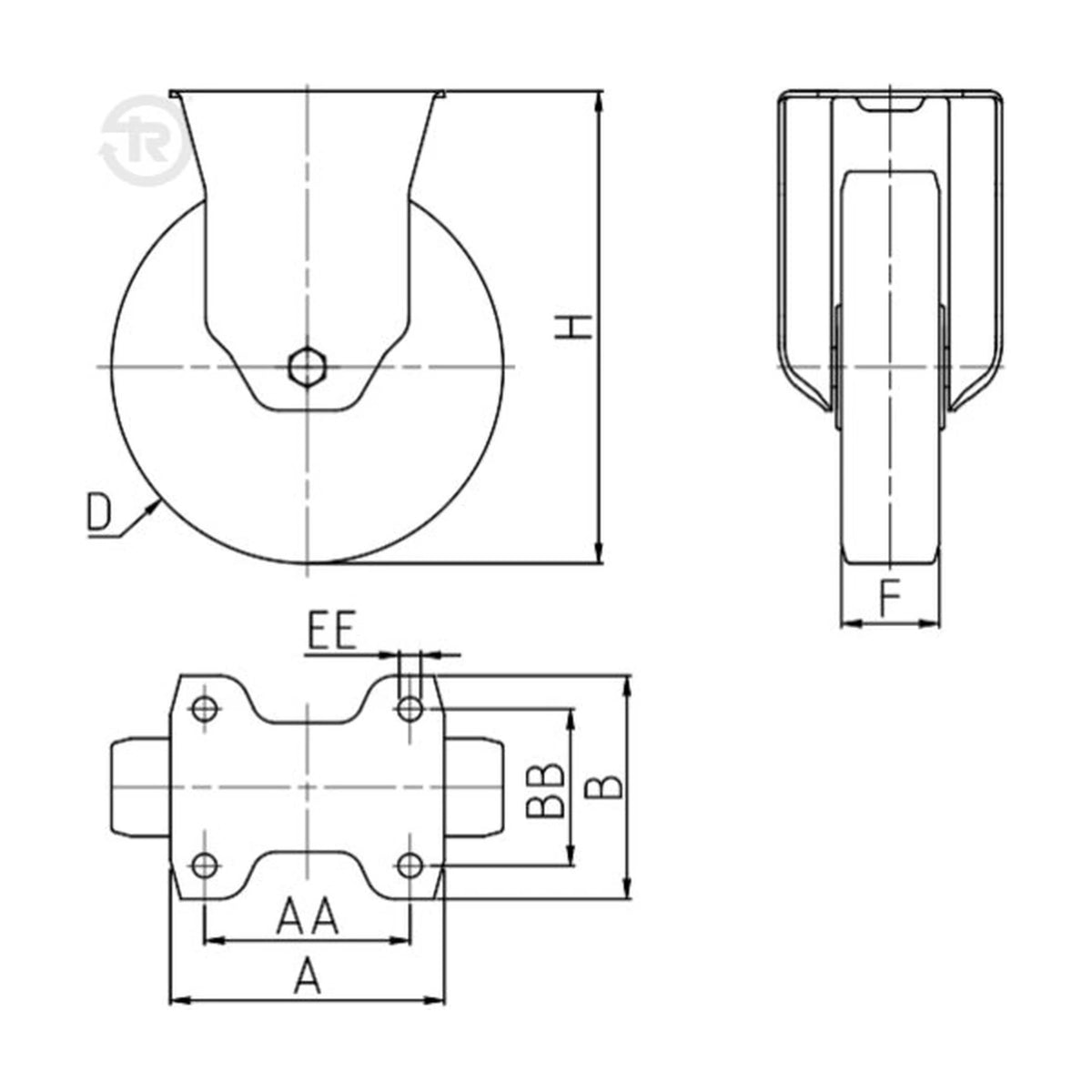

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
658201	80	25	107	100X85	80X60	9	—	200	Hub with ball bearings	0.49
658202	100	30	128	100X85	80X60	9	—	200	Hub with ball bearings	0.675
658203	125	35	156	100X85	80X60	9	—	220	Hub with ball bearings	0.82
658112	150	40	182	100X85	80X60	9	—	220	Hub with ball bearings	1.305
658104	150	40	194	140X110	105X80	11	—	300	Hub with ball bearings	2
658114	160	50	198	140X110	105X80	11	—	300	Hub with ball bearings	2.377
658106	200	50	240	140X110	105X80	11	—	300	Hub with ball bearings	2.9
