TR Polyurethane Wheels — TR-65HT-P-PT
TR polyurethane wheel, fixed castor (P) with a top plate — TR-65HT-SF-P
Manufacturer:
Tellure Rôta
TR polyurethane wheel, fixed castor (P) with a top plate — TR-65HT-SF-P
TR polyurethane wheel, fixed castor (P) with a top plate — TR-65HT-SF-P
Regular price
179,76 zł
net / pc
221,10 złbrutto
Product code:
SKU:655412
Unit price:
179,76 zł
netto
Net value (1 pcs)
179,76 zł
VAT (23%)
41,34 zł
Total gross
221,10 zł
The wheel has a TR polyurethane tread and an aluminium centre. This is a fixed castor with a top plate. The variants of this model cover diameters of 100–250 mm, widths of 40–50 mm and load capacities of 350–900 daN at 4 km/h.
| Manufacturer | Tellure Rôta (distributed by Myzer) |
| Series | TR-65HT-P-PT |
| Design | fixed castor / top plate |
| Tread material | TR polyurethane |
| Centre material | aluminium |
Selection table — item specifications

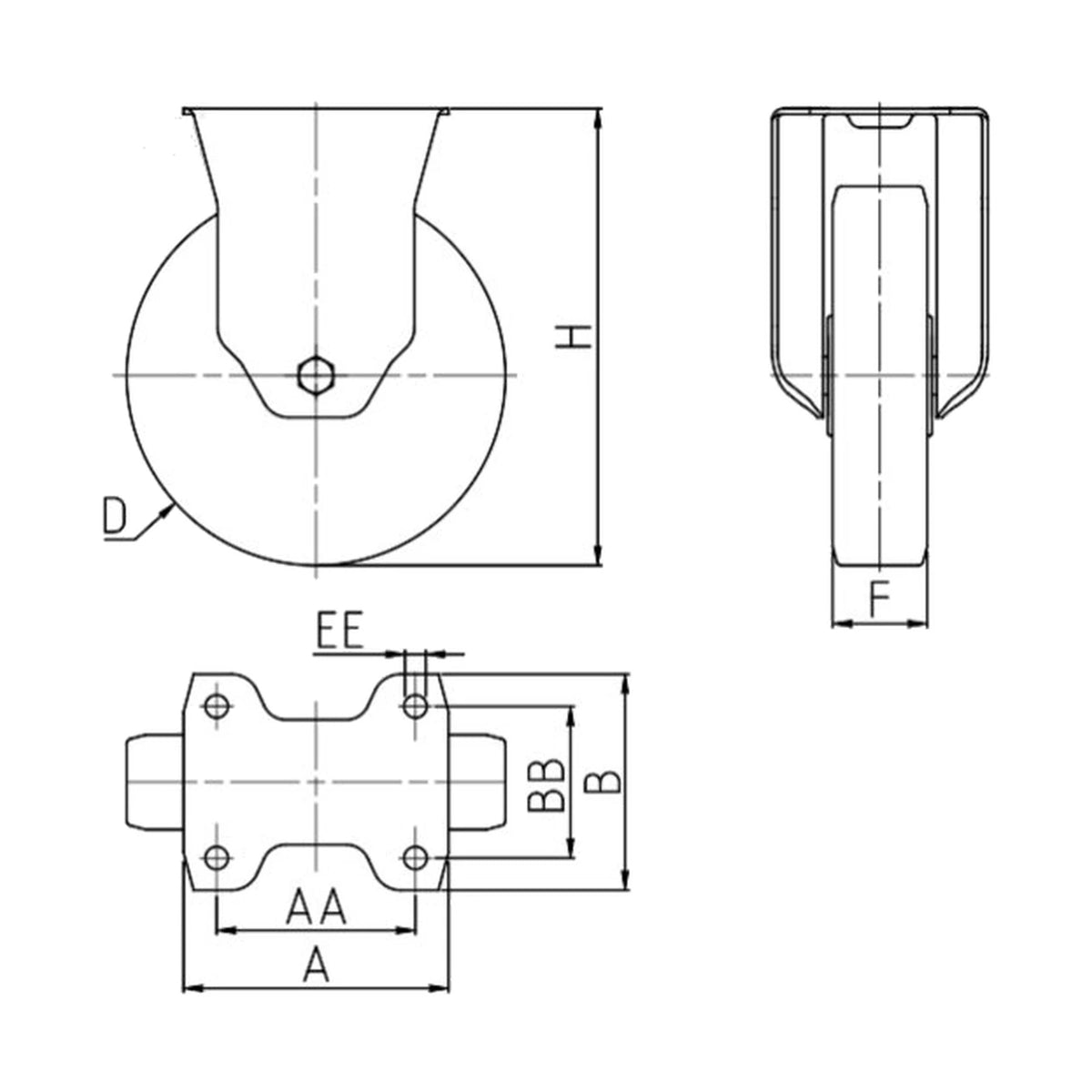

| Code | Ø D (mm) | Width F (mm) | Total height H (mm) | Top plate A×B (mm) | Load capacity at 4 km/h (daN) | Rolling elements | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 655412 | 100 | 40 | 138 | 100X85 | 350 | Hub with ball bearings | 0.83 |
| 655403 | 125 | 40 | 170 | 140X110 | 450 | Hub with ball bearings | 1.63 |
| 655414 | 160 | 50 | 205 | 140X110 | 700 | Hub with ball bearings | 2.04 |
| 655415 | 180 | 50 | 228 | 140X110 | 750 | Hub with ball bearings | 2.36 |
| 655416 | 200 | 50 | 250 | 140X110 | 800 | Hub with ball bearings | 2.76 |
| 655418 | 250 | 50 | 298 | 140X110 | 900 | Hub with ball bearings | 3.74 |
