Strona główna Sklep Ruedas Non-marking thermoplastic rubber wheel, swivel castor with a bolt hole and a brake — TR-38-SR-FP-FR

Fabricante: Tellure Rôta

Non-marking thermoplastic rubber wheel, swivel castor with a bolt hole and a brake — TR-38-SR-FP-FR

35,45 zł neto / ud.

43,60 złbrutto

Dimensiones (Ø×ancho)

Ø40×18 mm

Ø50×18 mm

Ø60×25 mm

Ø75×23 mm

Ø80×24 mm

Rodamiento

Plain bore

Orificio de montaje

Ø10 mm

Ø12 mm

Kod produktu:

SKU:387200

Cena jednostkowa: 35,45 zł netto

Wartość netto (1 szt.) 35,45 zł

Podatek VAT (23%) 8,15 zł

Razem brutto 43,60 zł

Ver todos los detalles

The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a bolt hole and a brake. The bracket is made of pressed galvanised steel. The variants of this version cover diameters of 40–80 mm and widths of 18–25 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-38-S
Design	swivel castor / bolt hole / brake
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

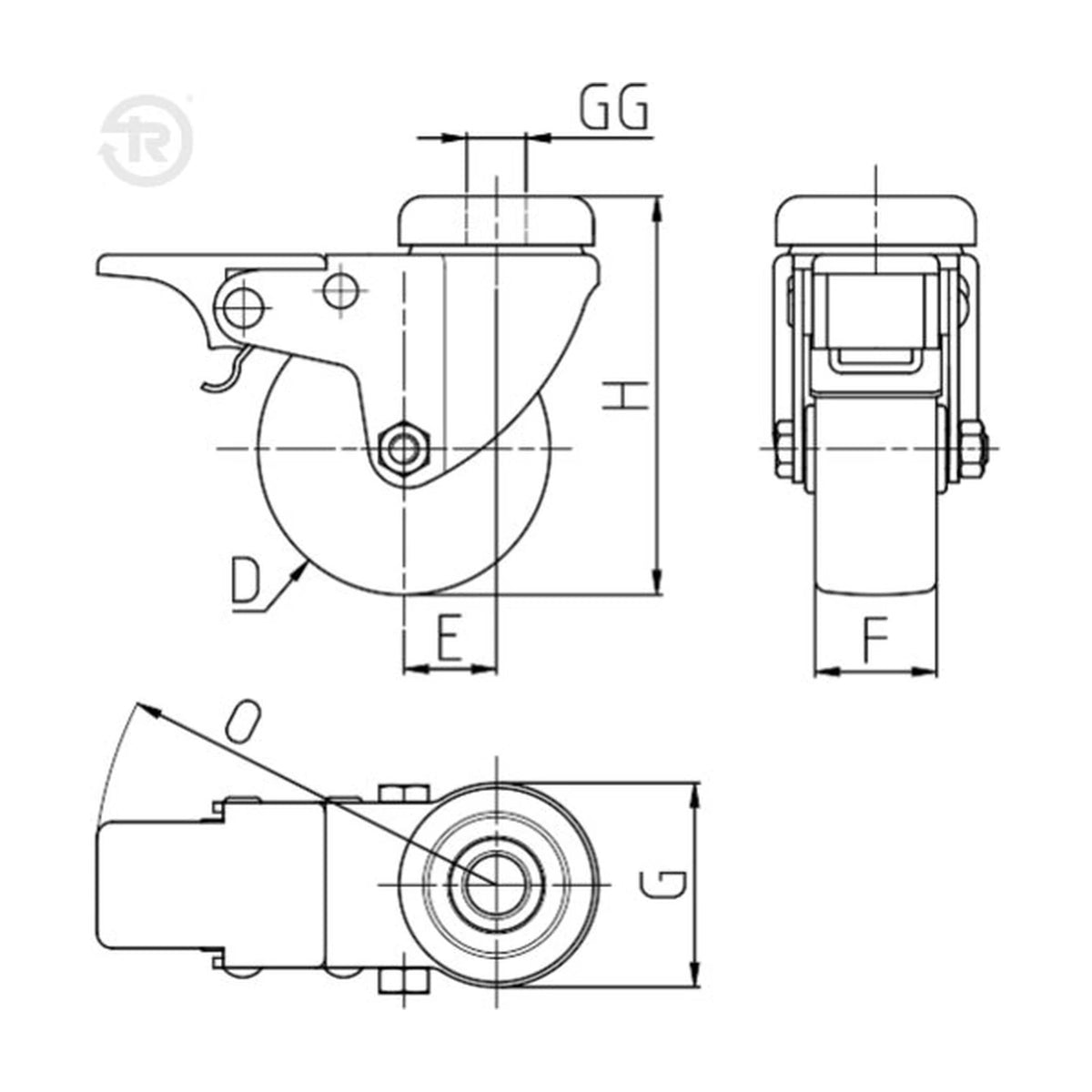

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
387200	40	18	59	—	—	10	24	—	Plain bore	0.11
387201	50	18	66	—	—	10	22	—	Plain bore	0.12
387212	60	25	83	—	—	10	21	—	Plain bore	0.22
387202	60	25	83	—	—	12	21	—	Plain bore	0.22
387313	75	23	101	—	—	10	30	—	Plain bore	0.28
387303	75	23	101	—	—	12	30	—	Plain bore	0.28
387213	80	24	104	—	—	10	30	—	Plain bore	0.29
387203	80	24	104	—	—	12	30	—	Plain bore	0.29
