Strona główna Sklep Ruedas Non-marking thermoplastic rubber wheel, swivel castor with a top plate — TR-38NX-SRP

Fabricante: Tellure Rôta

Non-marking thermoplastic rubber wheel, swivel castor with a top plate — TR-38NX-SRP

74,65 zł neto / ud.

91,82 złbrutto

Dimensiones (Ø×ancho)

Ø50×24 mm

Ø60×25 mm

Ø75×23 mm

Rodamiento

Plain bore

Kod produktu:

SKU:384211NX

Cena jednostkowa: 74,65 zł netto

Wartość netto (1 szt.) 74,65 zł

Podatek VAT (23%) 17,17 zł

Razem brutto 91,82 zł

Ver todos los detalles

The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a top plate. The bracket is made of stainless steel. The variants of this version cover diameters of 50–75 mm and widths of 23–25 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-38-X
Design	swivel castor / top plate
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

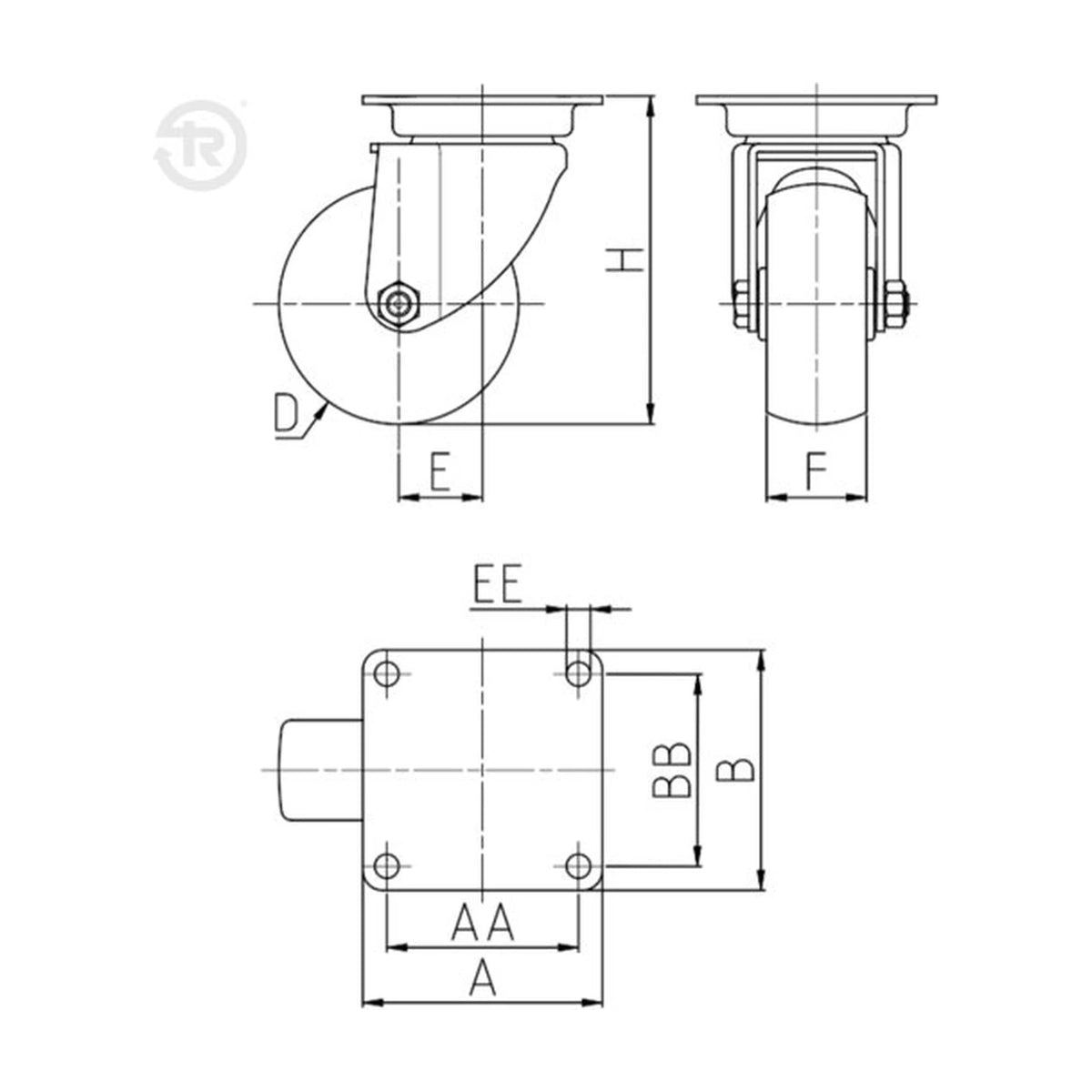

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
384211NX	50	24	71	60X60	45X45	6	22	—	Plain bore	0.2
384202NX	60	25	83	60X60	45X45	6	21	—	Plain bore	0.22
384303NX	75	23	101	60X60	45X45	6	30	—	Plain bore	0.24
