Strona główna Sklep Ruedas Thermoplastic polyurethane wheel, swivel castor P with a top plate — TR-60-SRP-P

Fabricante: Tellure Rôta

Thermoplastic polyurethane wheel, swivel castor P with a top plate — TR-60-SRP-P

119,25 zł neto / ud.

146,68 złbrutto

Dimensiones (Ø×ancho)

Ø100×30 mm

Ø125×35 mm

Ø150×45 mm

Ø200×50 mm

Rodamiento

Plain bore

Hub with roller bearings

Kod produktu:

SKU:607102

Cena jednostkowa: 119,25 zł netto

Wartość netto (1 szt.) 119,25 zł

Podatek VAT (23%) 27,43 zł

Razem brutto 146,68 zł

Ver todos los detalles

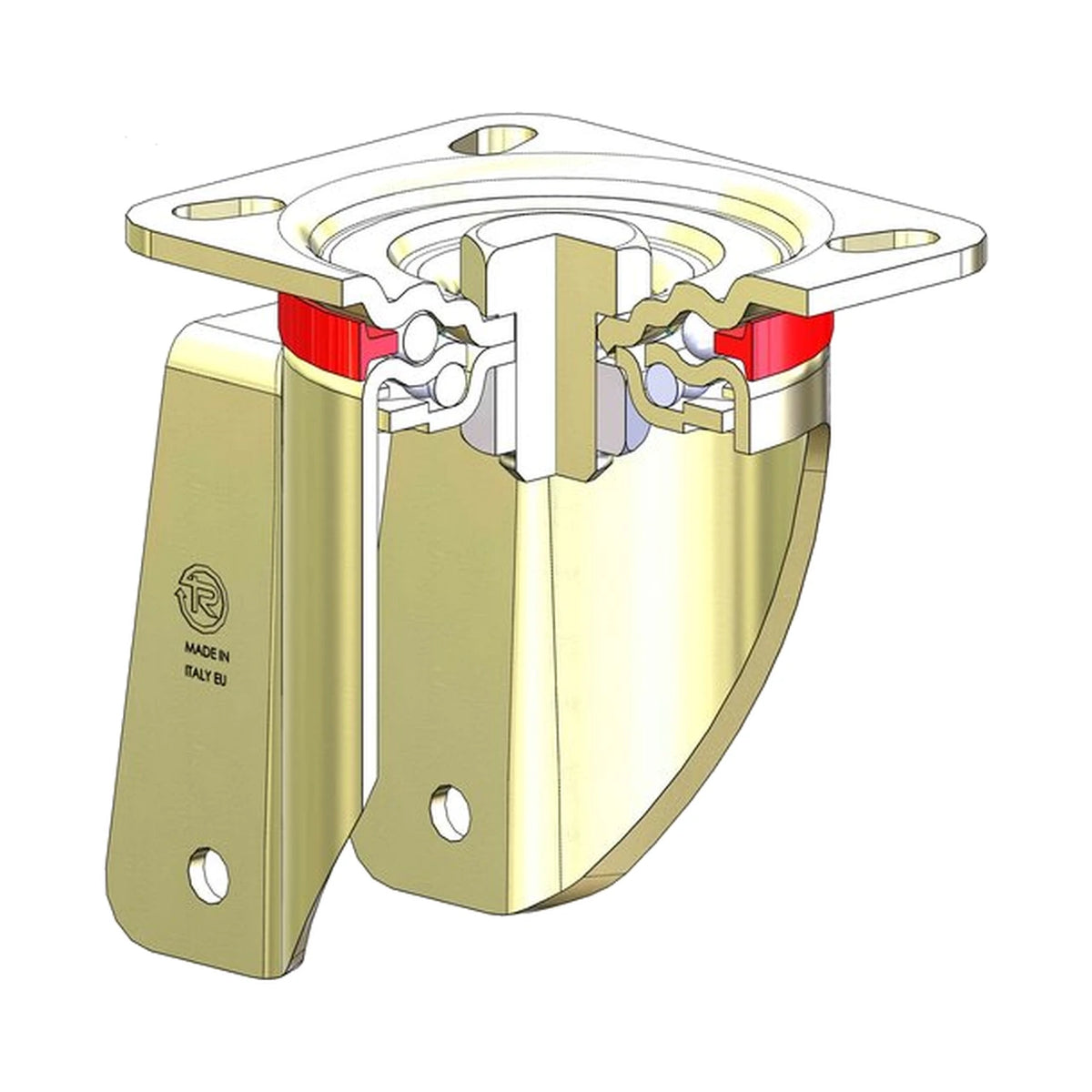

The wheel has a thermoplastic polyurethane tread and a polyamide 6 centre. This is a swivel castor with a top plate. The variants of this version cover diameters of 100–200 mm, widths of 30–50 mm and load capacities of 170–450 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-60-P
Design	swivel castor / top plate
Tread material	thermoplastic polyurethane
Centre material	polyamide 6

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
607102	100	30	138	100X85	170	Plain bore	1.03
607302	100	30	138	100X85	170	Hub with roller bearings	1.05
607103	125	35	161	100X85	230	Plain bore	1.17
607303	125	35	161	100X85	230	Hub with roller bearings	1.19
607604	150	45	200	140X110	350	Plain bore	2.81
607504	150	45	200	140X110	350	Hub with roller bearings	2.87
607606	200	50	250	140X110	450	Plain bore	3.2
607506	200	50	250	140X110	450	Hub with roller bearings	3.34
