Strona główna Sklep Ruedas Thermoplastic polyurethane wheel, fixed castor NL with a top plate — TR-61-SF-NL

Fabricante: Tellure Rôta

Thermoplastic polyurethane wheel, fixed castor NL with a top plate — TR-61-SF-NL

40,41 zł neto / ud.

49,70 złbrutto

Dimensiones (Ø×ancho)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×35 mm

Ø150×45 mm

Ø200×50 mm

Rodamiento

Plain bore

Hub with roller bearings

Kod produktu:

SKU:615701

Cena jednostkowa: 40,41 zł netto

Wartość netto (1 szt.) 40,41 zł

Podatek VAT (23%) 9,29 zł

Razem brutto 49,70 zł

Ver todos los detalles

The wheel has a thermoplastic polyurethane tread and a polyamide 6 centre. The fixed castor uses a top plate mounting. This version covers wheel diameters of 80–200 mm, widths of 30–50 mm and load capacities of 75–300 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-61-NL

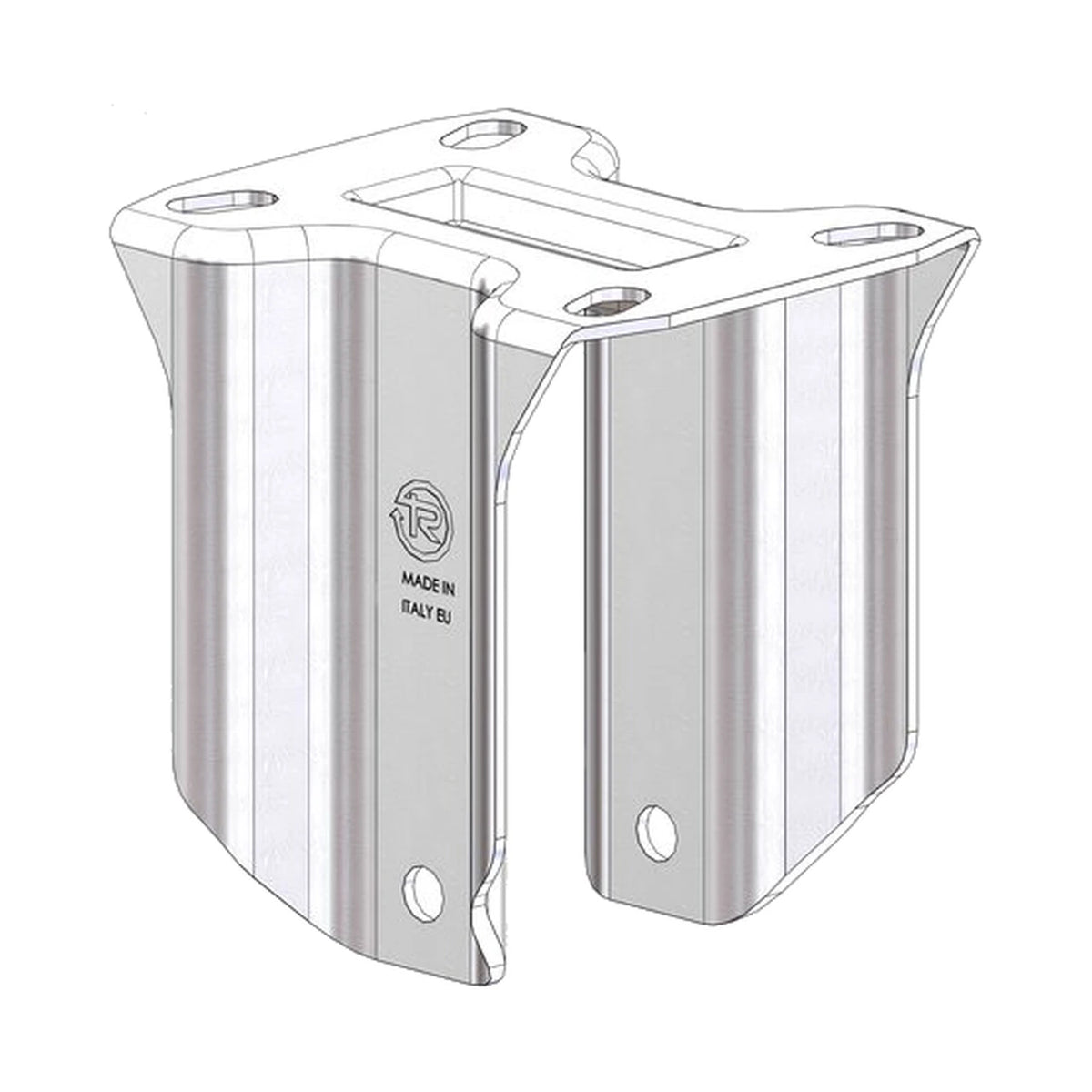

Configuration	fixed castor / top plate
Tread material	thermoplastic polyurethane
Centre material	polyamide 6

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
615701	80	30	107	100X85	75	Plain bore	0.38
615901	80	30	107	100X85	75	Hub with roller bearings	0.41
615702	100	30	128	100X85	120	Plain bore	0.43
615902	100	30	128	100X85	120	Hub with roller bearings	0.43
615703	125	35	156	100X85	180	Plain bore	0.66
615903	125	35	156	100X85	180	Hub with roller bearings	0.67
615704	150	35	182	100X85	220	Plain bore	0.8
615904	150	35	182	100X85	220	Hub with roller bearings	0.82
615711	150	45	194	140X110	250	Plain bore	1.46
615911	150	45	194	140X110	250	Hub with roller bearings	1.51
615706	200	50	240	140X110	300	Plain bore	1.81
615906	200	50	240	140X110	300	Hub with roller bearings	1.86
