Strona główna Sklep Ruedas TR-Roll polyurethane wheel, swivel castor (EE) with a top plate and a brake — TR-62GH-SRP-EE-HD-FR
Ir directamente a la información del producto
1 de 3
Fabricante: Tellure RôtaTellure Rôta

TR-Roll polyurethane wheel, swivel castor (EE) with a top plate and a brake — TR-62GH-SRP-EE-HD-FR

TR-Roll polyurethane wheel, swivel castor (EE) with a top plate and a brake — TR-62GH-SRP-EE-HD-FR

Precio habitual 1.551,44 zł neto / ud.
1.908,27 złbrutto
Dimensiones (Ø×ancho)

Dimensiones (Ø×ancho)

Rodamiento

Rodamiento

Kod produktu:

SKU:628906

Cena jednostkowa: 1.551,44 zł netto
Wartość netto (1 szt.) 1.551,44 zł
Podatek VAT (23%) 356,83 zł
Razem brutto 1.908,27 zł
Cantidad

Descuentos por volumen

El cliente registrado puede negociar condiciones individuales: escríbanos antes de realizar el pedido.

Wyślij zapytanie ofertowe
Ver todos los detalles

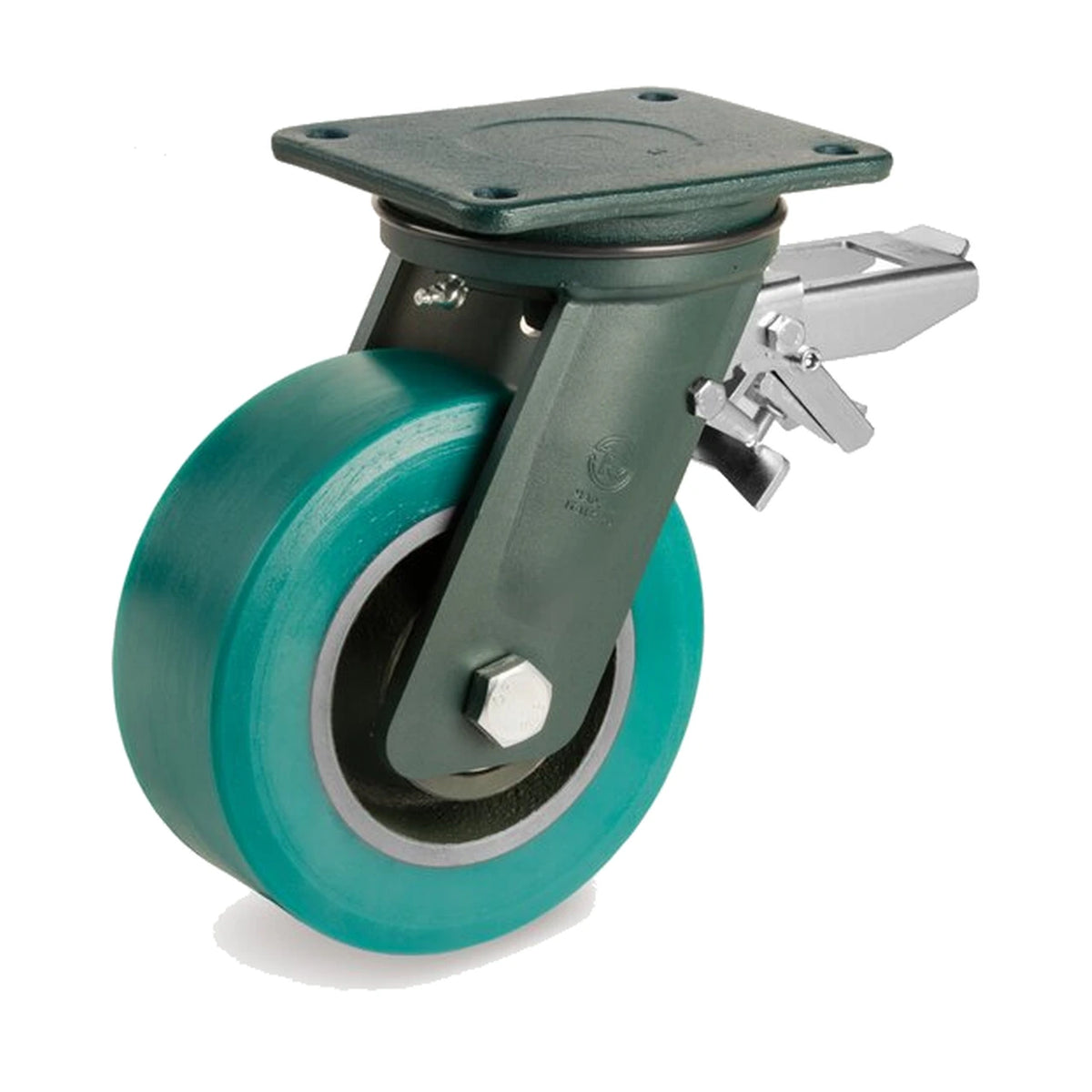

The wheel has a TR-Roll polyurethane tread and a cast iron centre. This is a swivel castor with a top plate and a brake. The variants of this model cover diameters of 200–300 mm, widths of 78 mm and load capacities of 900–1400 daN at 4 km/h.

Manufacturer Tellure Rôta (distributed by Myzer)
Series TR-62GH-HD
Configuration swivel castor / top plate / brake
Tread material TR-Roll polyurethane
Centre material cast iron

Selection table — item specifications

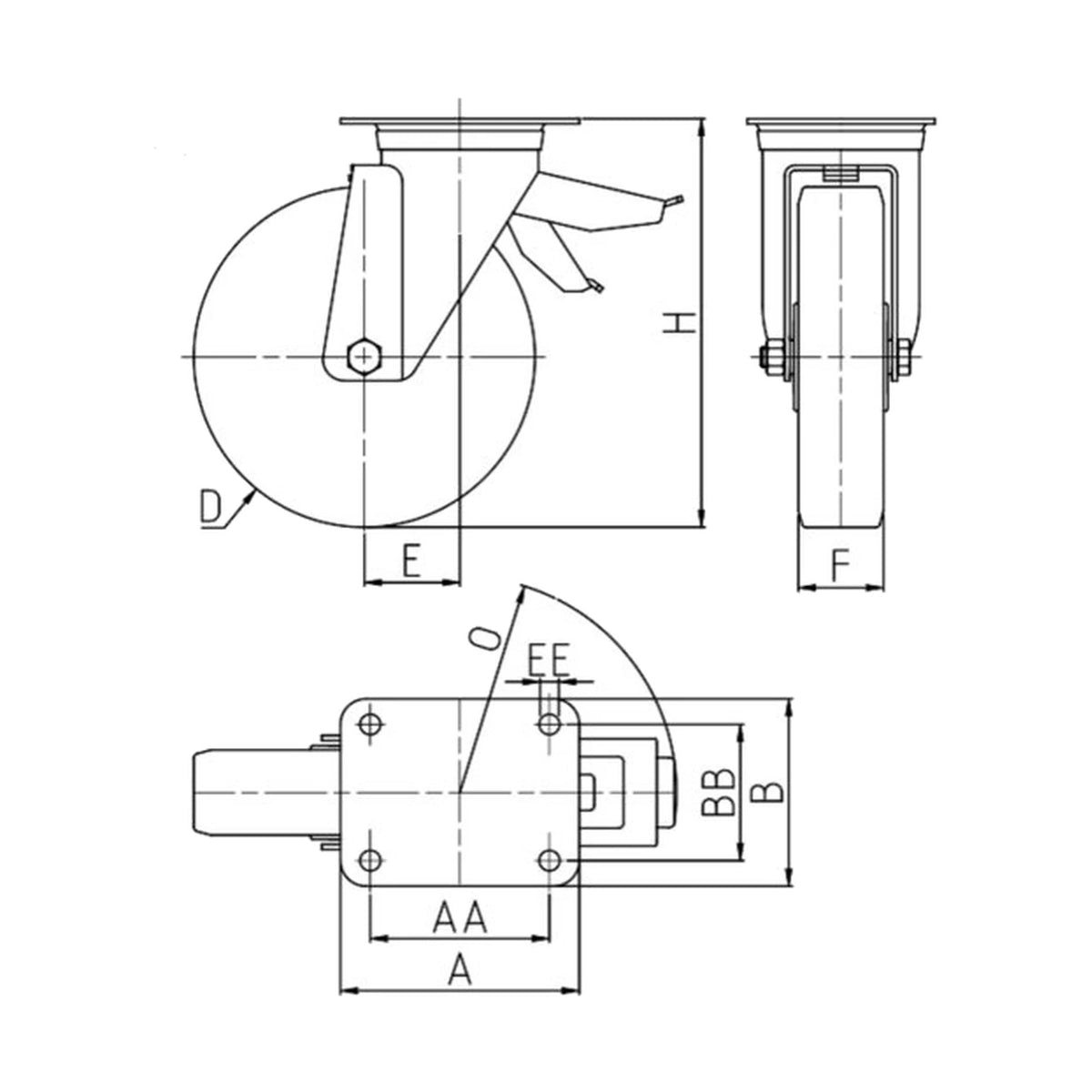

Code Ø D (mm) Width F (mm) Overall height H (mm) Top plate A×B (mm) Load capacity at 4 km/h (daN) Rolling elements Weight (kg)
628906 200 78 275 175X140 900 Hub with ball bearings 13.98
628908 250 78 320 175X140 1200 Hub with ball bearings 16.07
628918 300 78 360 175X140 1400 Hub with ball bearings 19.19
