Strona główna Sklep Ruedas Vulkollan® wheel, fixed castor with a top plate — TR-63GH-SF-MOL

Fabricante: Tellure Rôta

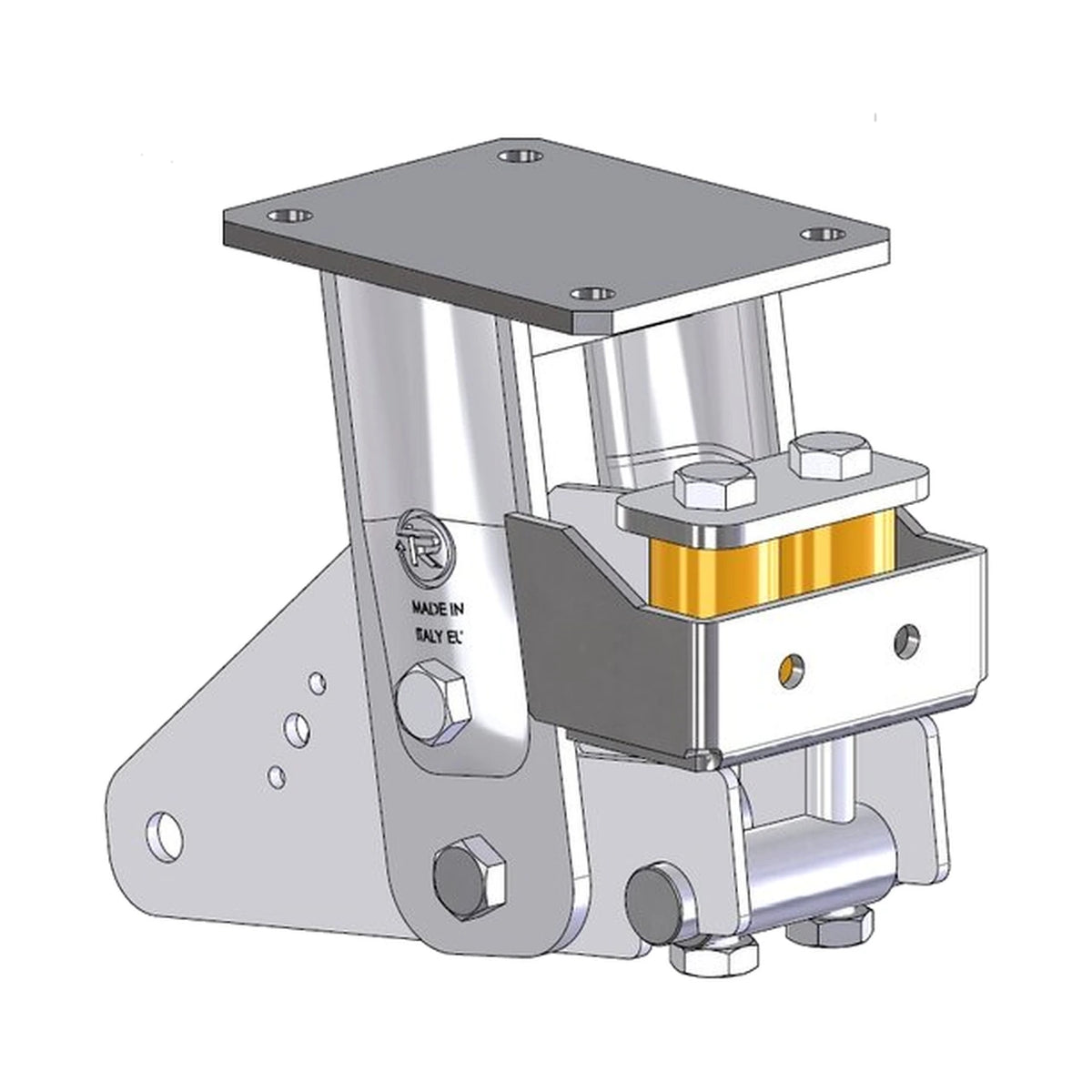

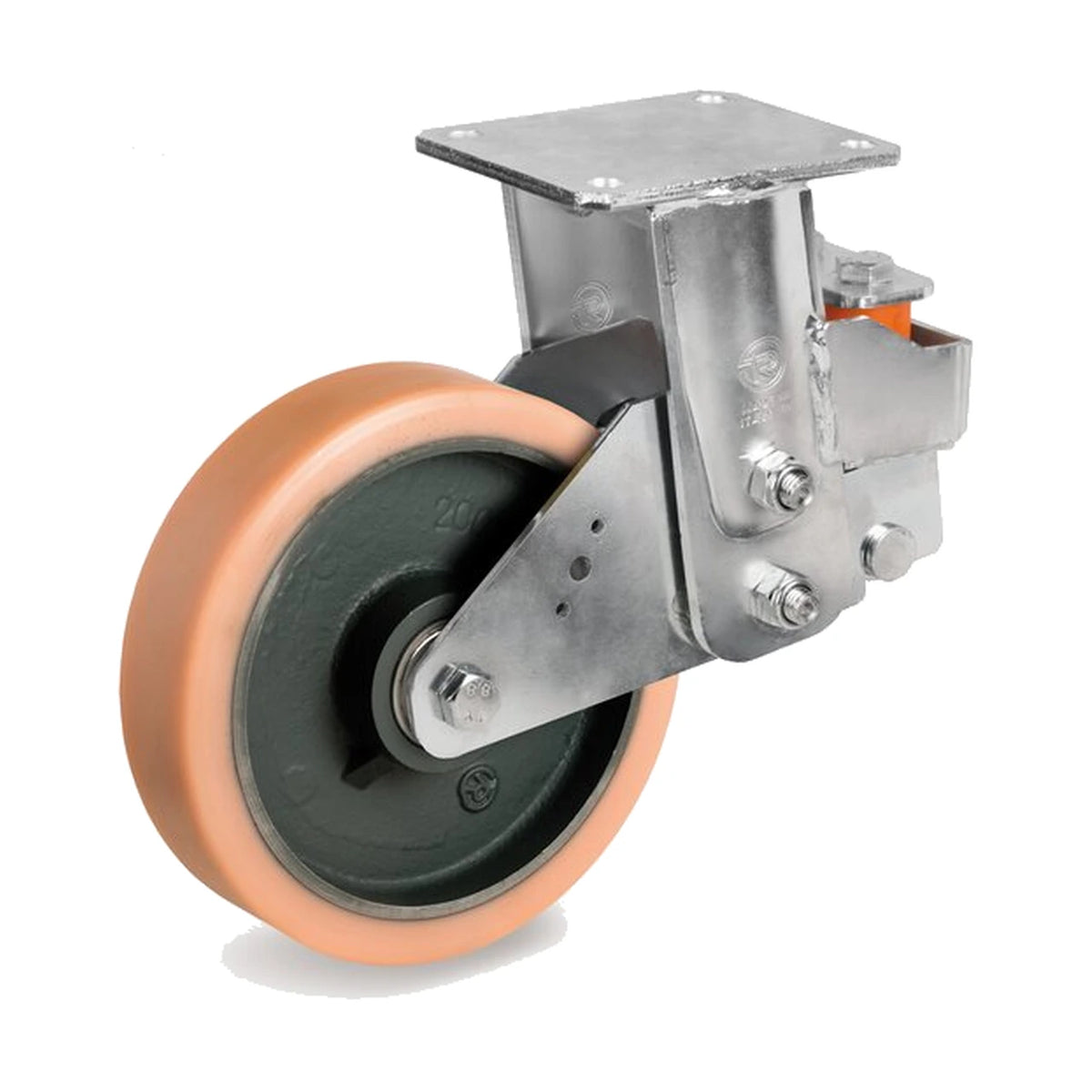

Vulkollan® wheel, fixed castor with a top plate — TR-63GH-SF-MOL

1.333,09 zł neto / ud.

1.639,70 złbrutto

Dimensiones (Ø×ancho)

Ø160×50 mm

Ø200×50 mm

Rodamiento

Hub with ball bearings

Kod produktu:

SKU:639404

Cena jednostkowa: 1.333,09 zł netto

Wartość netto (1 szt.) 1.333,09 zł

Podatek VAT (23%) 306,61 zł

Razem brutto 1.639,70 zł

Ver todos los detalles

The wheel has a Vulkollan® tread and a cast iron centre. This is a fixed castor with a top plate. This version is available in diameters of 160–200 mm, widths of 50 mm and load capacities of 750–1000 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-63GH-EESMHD
Design	fixed castor / top plate
Tread material	Vulkollan®
Centre material	cast iron

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
639404	160	50	248	135X110	750	Hub with ball bearings	7.22
639406	200	50	268	135X110	1000	Hub with ball bearings	7.82
