Strona główna Sklep Ruedas Thermoplastic rubber wheel, swivel castor NL with a top plate and a brake — TR-71CC-SRP-NL-FR

Fabricante: Tellure Rôta

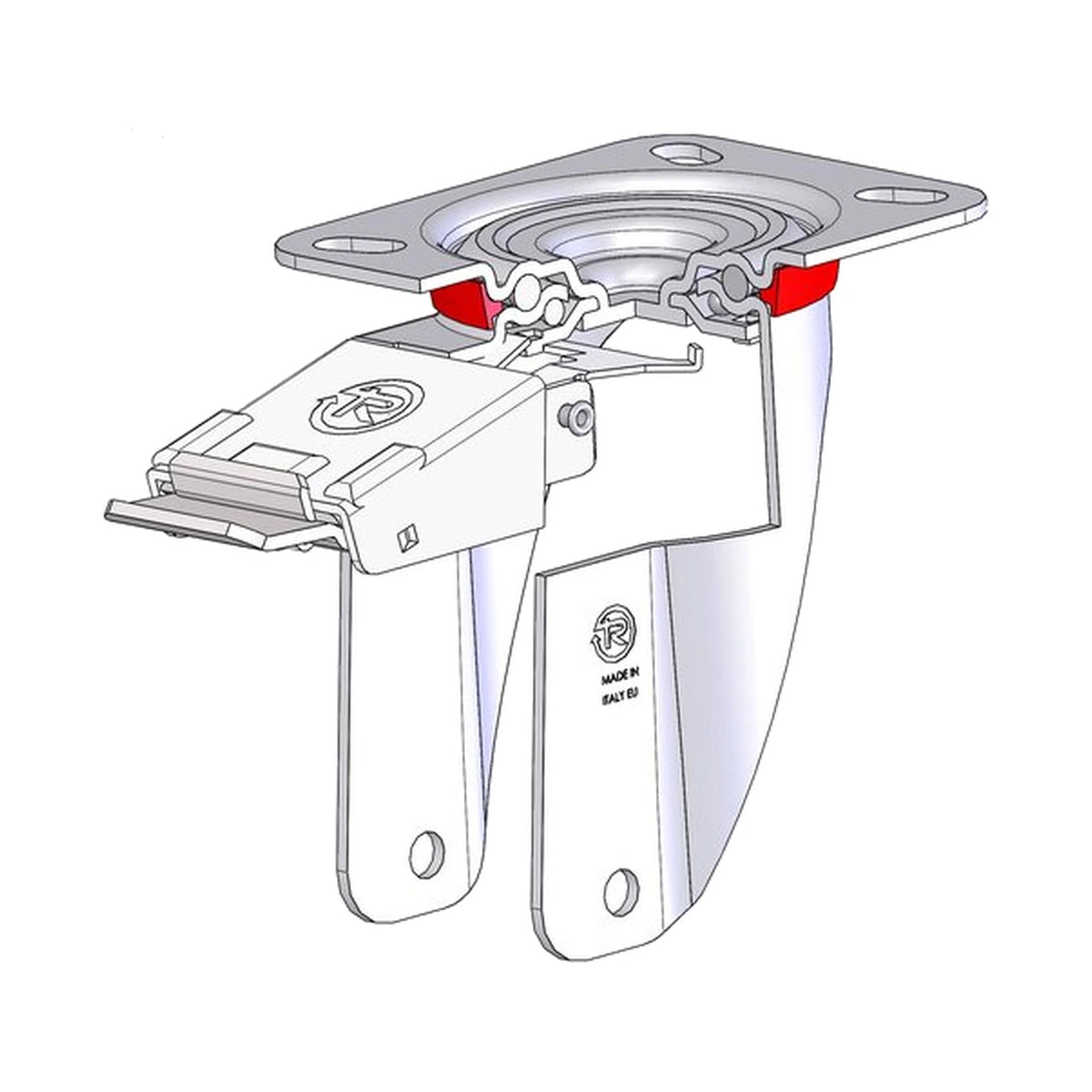

Thermoplastic rubber wheel, swivel castor NL with a top plate and a brake — TR-71CC-SRP-NL-FR

94,49 zł neto / ud.

116,22 złbrutto

Dimensiones (Ø×ancho)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×45 mm

Ø160×50 mm

Ø200×50 mm

Rodamiento

ball bearing

Kod produktu:

SKU:714901

Cena jednostkowa: 94,49 zł netto

Wartość netto (1 szt.) 94,49 zł

Podatek VAT (23%) 21,73 zł

Razem brutto 116,22 zł

Ver todos los detalles

The wheel has a thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a top plate and a brake. This version is available in diameters of 80–200 mm, widths of 30–50 mm and load capacities of 70–225 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-71CC-NL
Design	swivel castor / top plate / brake
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
714901	80	30	107	100X85	70	Hub with ball bearings	0.75
714902	100	30	128	100X85	100	Hub with ball bearings	0.85
714903	125	35	156	100X85	120	Hub with ball bearings	0.97
714911	150	45	194	140X110	180	Hub with ball bearings	2.15
714910	160	50	199	140X110	200	Hub with ball bearings	2.24
714906	200	50	240	140X110	225	Hub with ball bearings	2.51
