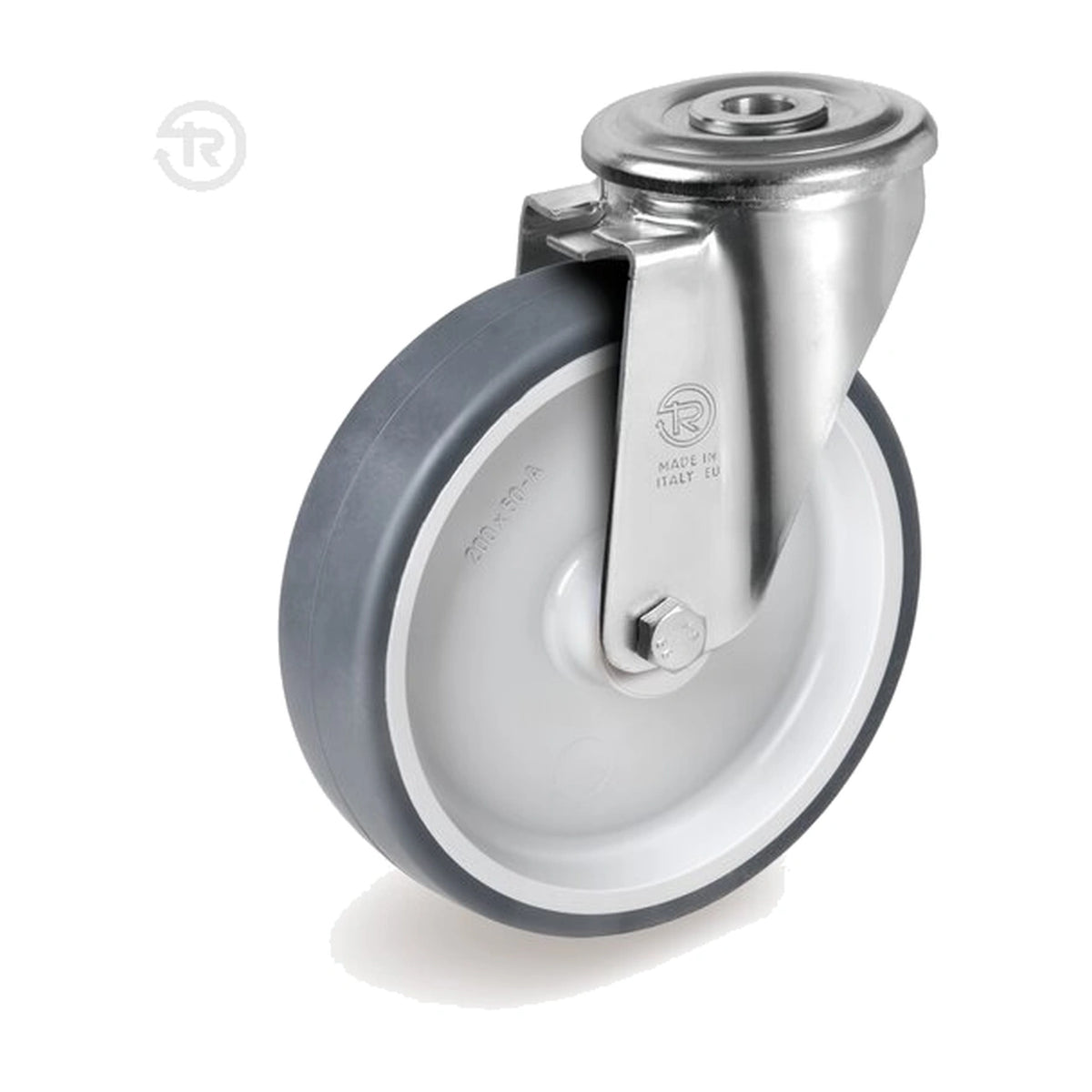

Thermoplastic rubber wheel, swivel castor with bolt hole NL — TR-71-SR-FP

45,33 zł net / pc

55,76 złbrutto

Dimensions (Ø × width)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×35 mm

Ø150×45 mm

Ø200×50 mm

Bearing

plain bore

roller bearing

Product code:

SKU:717401

Unit price: 45,33 zł netto

Net value (1 pcs) 45,33 zł

VAT (23%) 10,43 zł

Total gross 55,76 zł

View full details

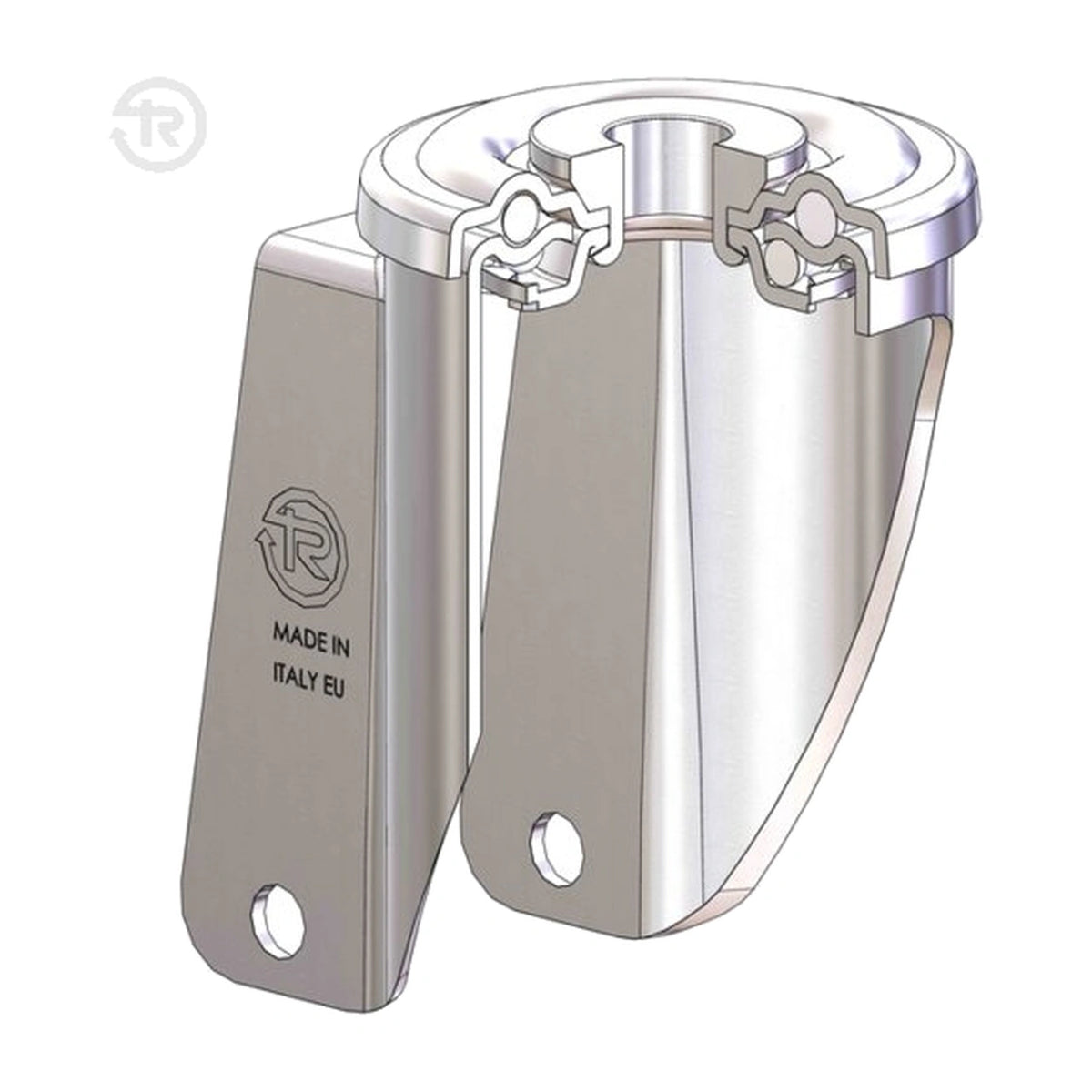

A grey, non-marking thermoplastic rubber tread with a hardness of 85 Shore A is paired with a polypropylene centre. The swivel NL bracket with a bolt hole is made of pressed, zinc-plated steel and has a greased double ball race. This castor is intended for trolleys used in internal logistics and lean operations. This version is available with diameters of 80–200 mm, widths of 30–50 mm and load capacities of 70–225 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-71-NL
Configuration	swivel castor / bolt hole
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

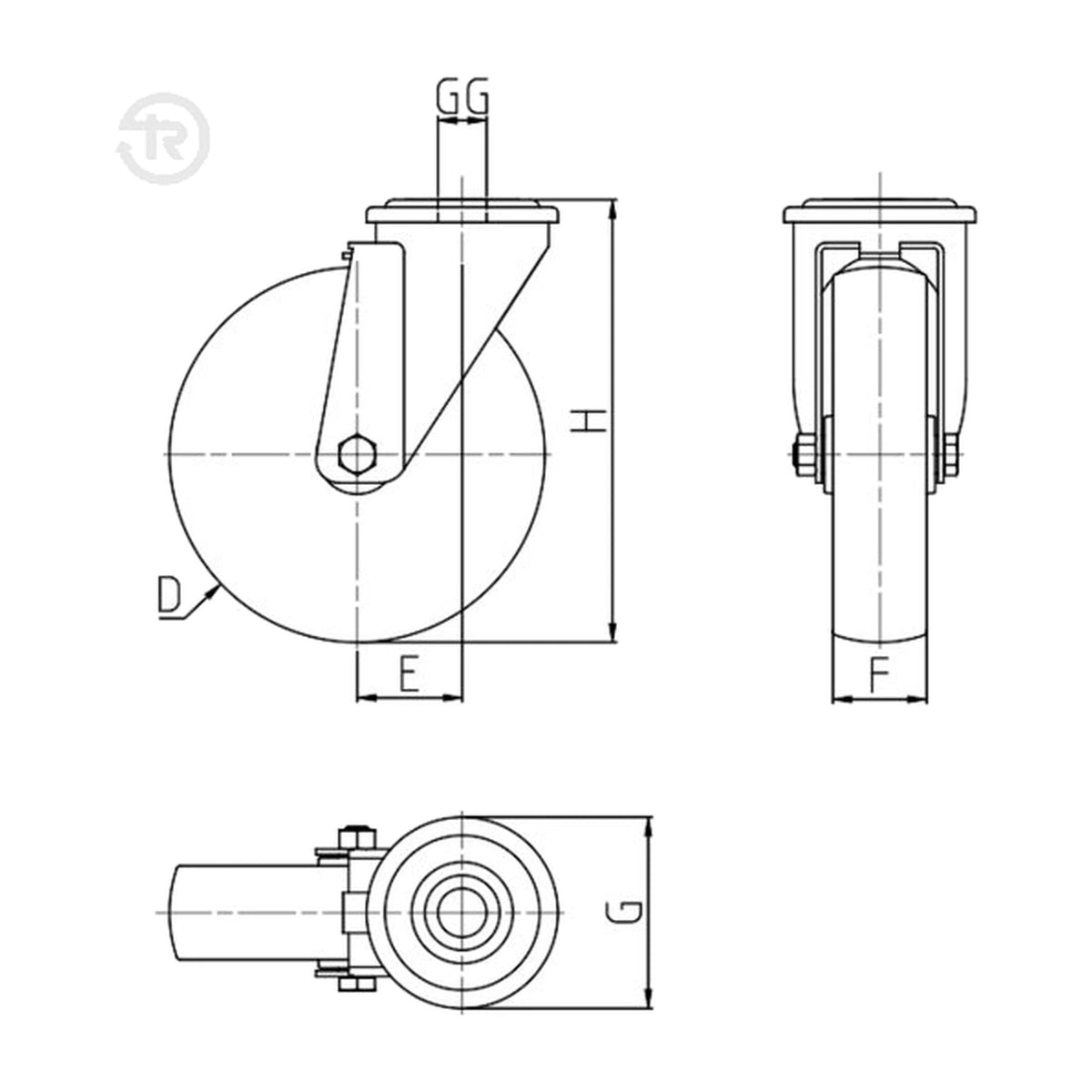

Code	Ø D (mm)	Width F (mm)	Height H (mm)	Plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
717401	80	30	107	—	—	—	40	70	Plain bore	0.53
717801	80	30	107	—	—	—	40	70	Hub with roller bearings	0.55
717402	100	30	128	—	—	—	35	100	Plain bore	0.63
717802	100	30	128	—	—	—	35	100	Hub with roller bearings	0.64
717403	125	35	156	—	—	—	37	120	Plain bore	0.8
717803	125	35	156	—	—	—	37	120	Hub with roller bearings	0.82
717404	150	35	182	—	—	—	34	140	Plain bore	0.9
717804	150	35	182	—	—	—	34	140	Hub with roller bearings	0.93
717411	150	45	188	—	—	—	56	180	Plain bore	1.58
717811	150	45	188	—	—	—	56	180	Hub with roller bearings	1.85
717406	200	50	236	—	—	—	56	225	Plain bore	1.97
717806	200	50	236	—	—	—	56	225	Hub with roller bearings	2.02
