Strona główna Sklep Ruedas TR polyurethane wheel, swivel castor NL with a top plate — TR-65-ALL-CC-SRP-NL

Fabricante: Tellure Rôta

TR polyurethane wheel, swivel castor NL with a top plate — TR-65-ALL-CC-SRP-NL

191,96 zł neto / ud.

236,11 złbrutto

Dimensiones (Ø×ancho)

Ø125×35 mm

Ø80×25 mm

Ø100×30 mm

Ø150×40 mm

Ø160×50 mm

Ø200×50 mm

Rodamiento

Hub with ball bearings

Placa de montaje

140×110 mm

100×85 mm

Kod produktu:

SKU:659313

Cena jednostkowa: 191,96 zł netto

Wartość netto (1 szt.) 191,96 zł

Podatek VAT (23%) 44,15 zł

Razem brutto 236,11 zł

Ver todos los detalles

The wheel has a TR polyurethane tread and an aluminium centre. This is a swivel castor with a top plate. This version is available in diameters of 80–200 mm and widths of 25–50 mm. The load capacity is 200–300 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65AL-NL
Design	swivel castor / top plate
Tread material	TR polyurethane
Centre material	aluminium

Select dimensions and rolling elements — full variant specifications are shown in the data table.

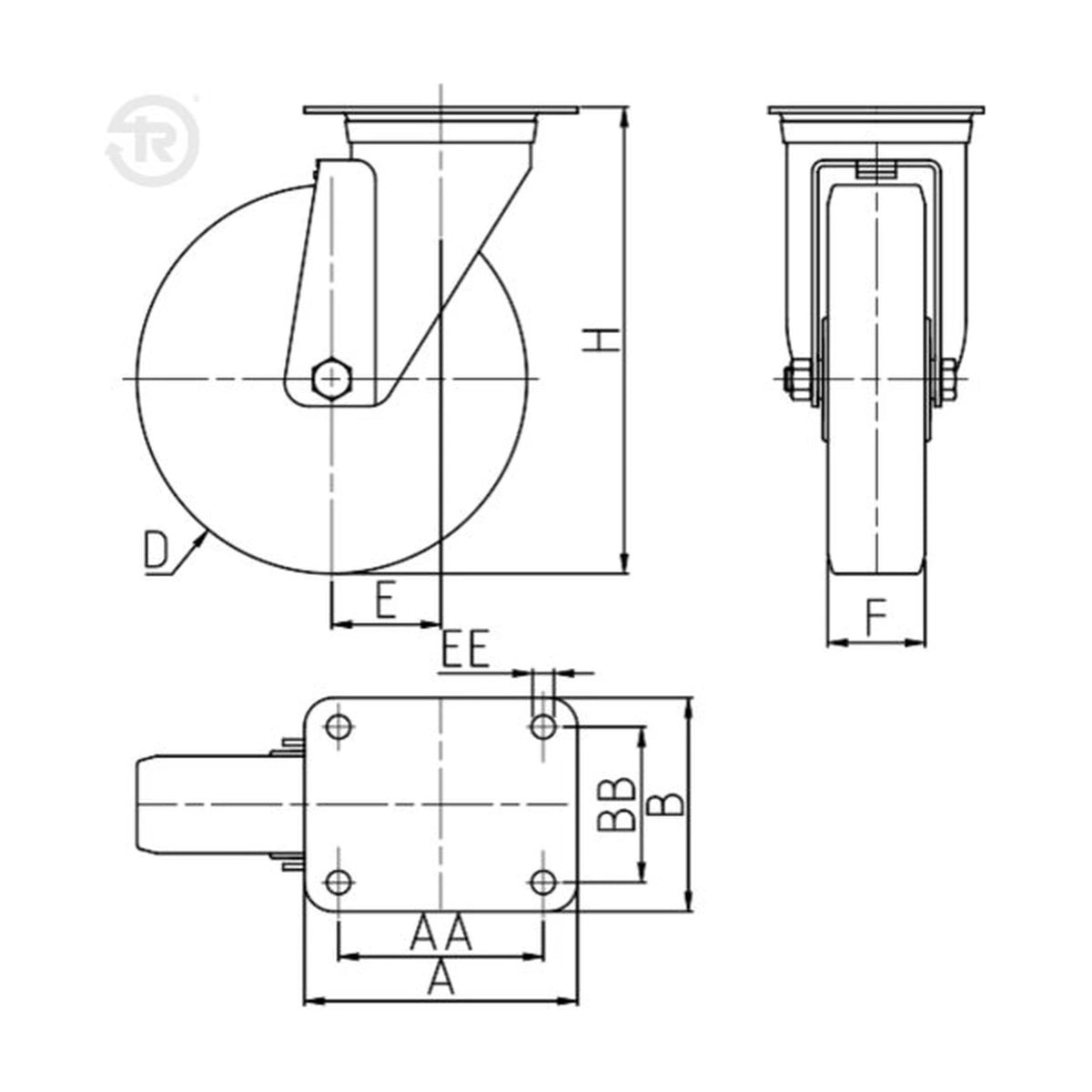

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
659313	125	35	156	140X110	105X80	11	37	220	Hub with ball bearings	1.251
659301	80	25	107	100X85	80X60	9	40	200	Hub with ball bearings	0.652
659302	100	30	128	100X85	80X60	9	35	200	Hub with ball bearings	0.815
659303	125	35	156	100X85	80X60	9	37	220	Hub with ball bearings	1.052
659312	150	40	182	100X85	80X60	9	50	220	Hub with ball bearings	1.507
659304	150	40	194	140X110	105X80	11	56	300	Hub with ball bearings	2.192
659514	160	50	198	140X110	105X80	11	56	300	Hub with ball bearings	2.4
659306	200	50	240	140X110	105X80	11	56	300	Hub with ball bearings	2.861
