Strona główna Sklep Ruedas TR polyurethane wheel, swivel castor NL with a top plate and brake — TR-65-SRP-NL-FRATT

Fabricante: Tellure Rôta

TR polyurethane wheel, swivel castor NL with a top plate and brake — TR-65-SRP-NL-FRATT

350,50 zł neto / ud.

431,12 złbrutto

Dimensiones (Ø×ancho)

Ø160×50 mm

Ø200×50 mm

Rodamiento

Hub with ball bearings

Kod produktu:

SKU:654804

Cena jednostkowa: 350,50 zł netto

Wartość netto (1 szt.) 350,50 zł

Podatek VAT (23%) 80,62 zł

Razem brutto 431,12 zł

Ver todos los detalles

The wheel has a TR polyurethane tread and an aluminium centre. This is a swivel castor with a top plate and a brake. This version is available in diameters of 160–200 mm and widths of 50 mm. The load capacity is 300 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65AL-NL
Design	swivel castor / top plate / brake
Tread material	TR polyurethane
Centre material	aluminium

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

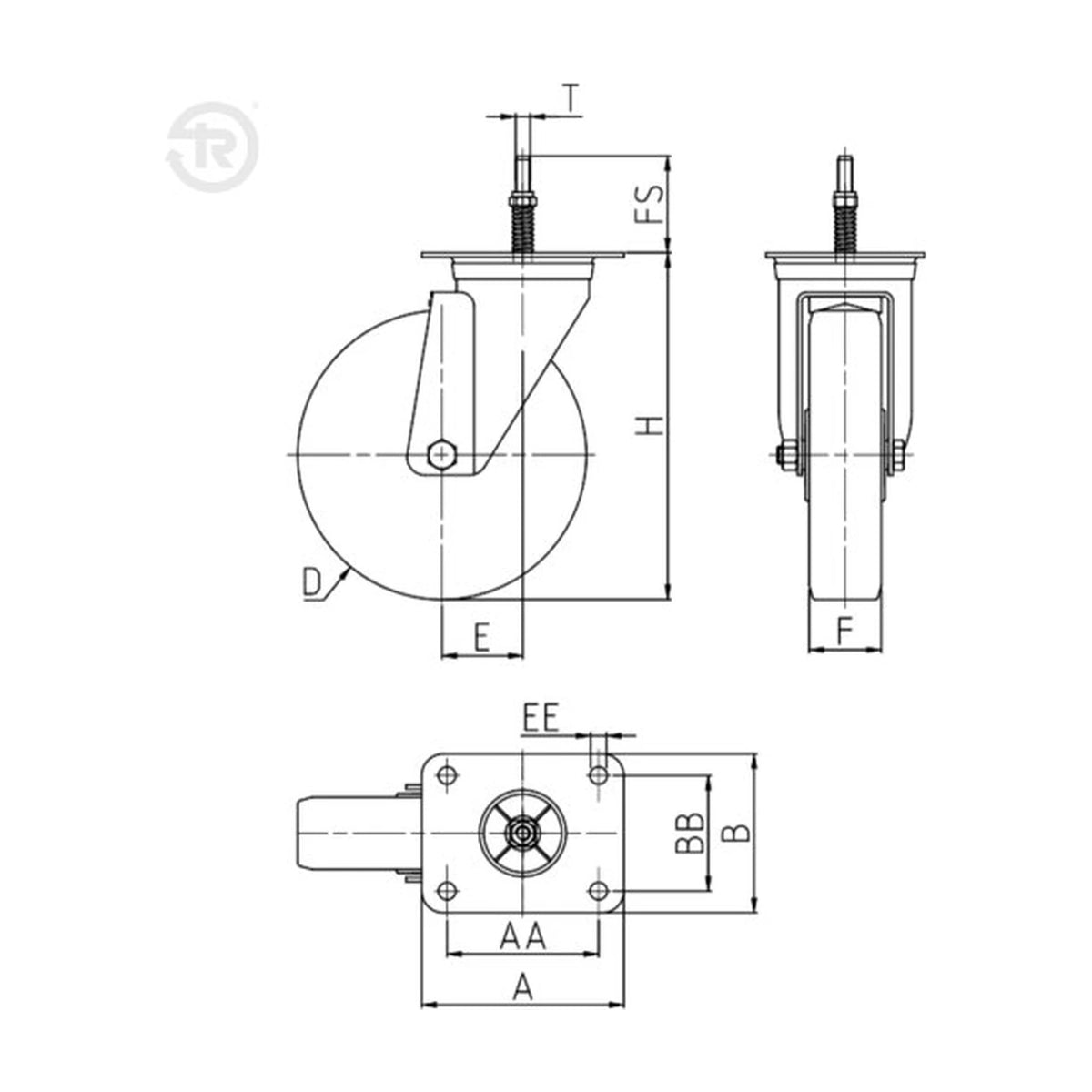

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
654804	160	50	199	140X110	105X80	11	56	300	Hub with ball bearings	2.61
654806	200	50	240	140X110	105X80	11	56	300	Hub with ball bearings	2.96
