Strona główna Sklep Roues Non-marking thermoplastic rubber wheel, swivel castor with a bolt hole — TR-38NX-SR-FP

Fabricant : Tellure Rôta

Non-marking thermoplastic rubber wheel, swivel castor with a bolt hole — TR-38NX-SR-FP

74,22 zł HT / pce

91,29 złbrutto

Dimensions (Ø×largeur)

Ø50×24 mm

Ø60×25 mm

Ø75×23 mm

Roulement

Plain bore

Kod produktu:

SKU:383211NX

Cena jednostkowa: 74,22 zł netto

Wartość netto (1 szt.) 74,22 zł

Podatek VAT (23%) 17,07 zł

Razem brutto 91,29 zł

Afficher tous les détails

The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a bolt hole. The bracket is made of stainless steel. The variants of this version cover diameters of 50–75 mm and widths of 23–25 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-38-X
Design	swivel castor / bolt hole
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

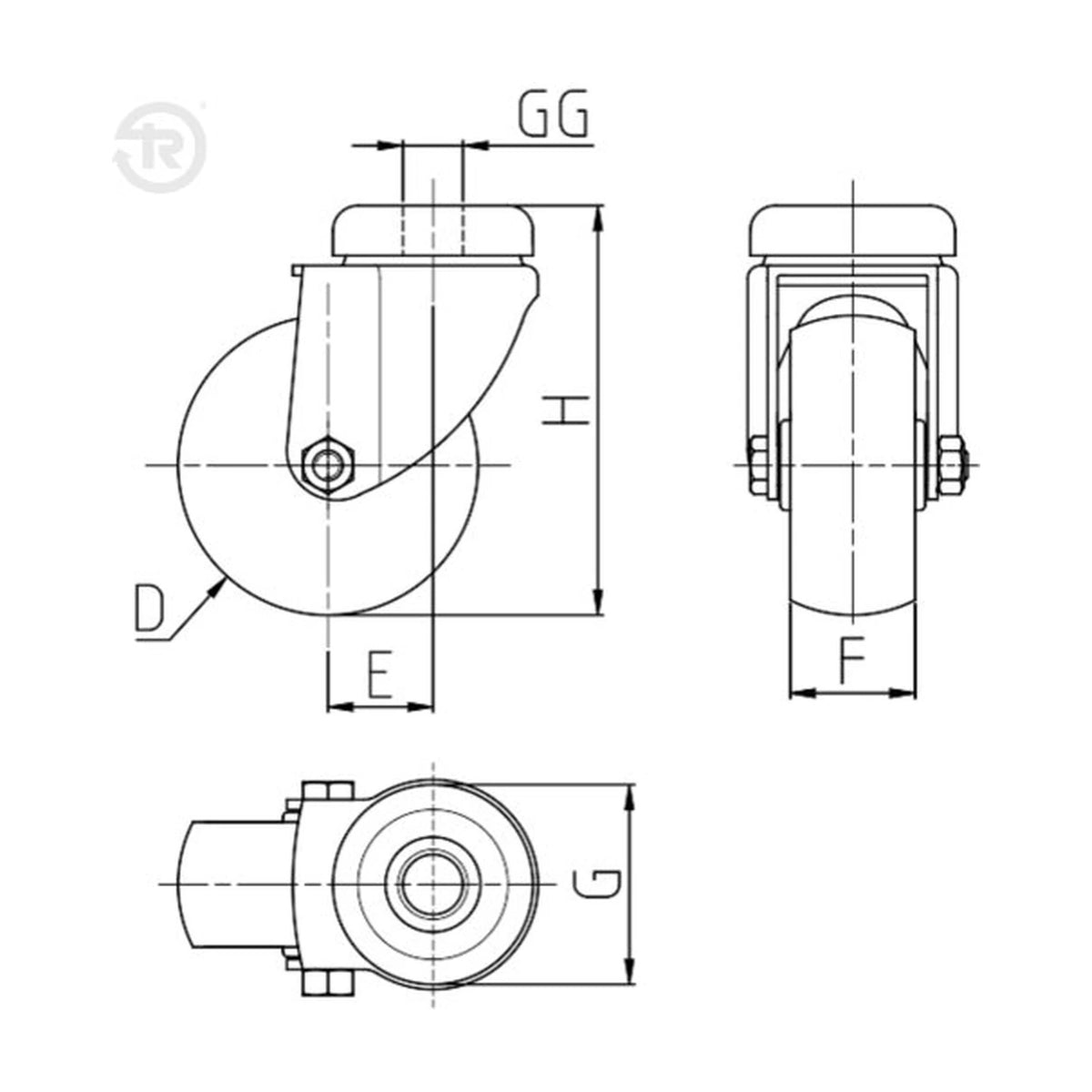

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
383211NX	50	24	71	—	—	12	22	—	Plain bore	0.17
383202NX	60	25	83	—	—	12	21	—	Plain bore	0.19
383303NX	75	23	101	—	—	12	30	—	Plain bore	0.21
