Strona główna Sklep Roues TR-PowerHigh polyurethane wheel, electrowelded swivel castor with a top plate – TR-58-SRP-EE-MHD
Passer aux informations produits
1 de 3
Fabricant : Tellure RôtaTellure Rôta

TR-PowerHigh polyurethane wheel, electrowelded swivel castor with a top plate – TR-58-SRP-EE-MHD

TR-PowerHigh polyurethane wheel, electrowelded swivel castor with a top plate – TR-58-SRP-EE-MHD

Prix habituel 710,88 zł HT / pce
874,38 złbrutto
Dimensions (Ø×largeur)

Dimensions (Ø×largeur)

Roulement

Roulement

Kod produktu:

SKU:588303

Cena jednostkowa: 710,88 zł netto
Wartość netto (1 szt.) 710,88 zł
Podatek VAT (23%) 163,50 zł
Razem brutto 874,38 zł
Quantité

Remises sur les quantités importantes

Un client inscrit peut négocier des conditions individuelles — écrivez-nous avant de passer votre commande.

Wyślij zapytanie ofertowe
Afficher tous les détails

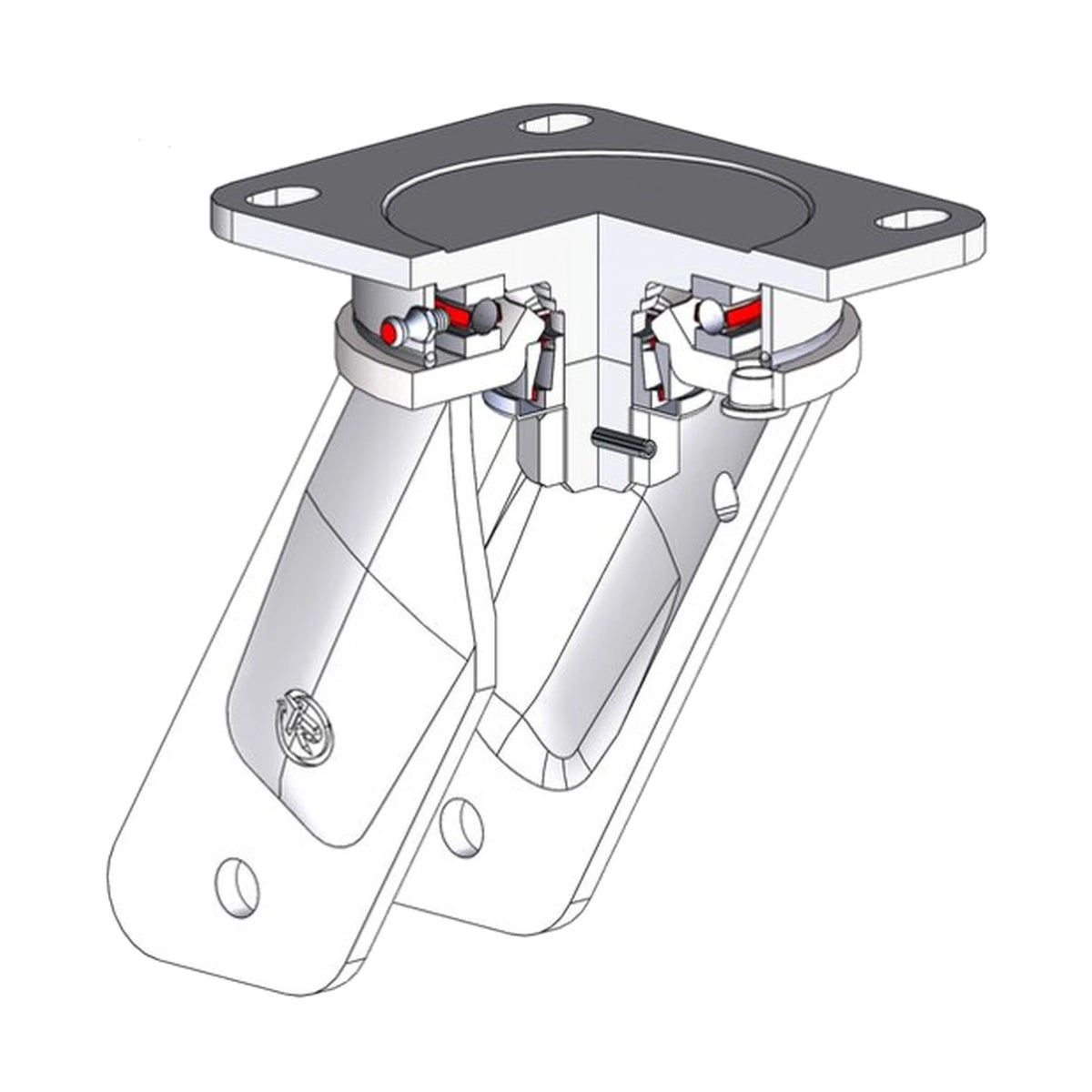

The wheel has a TR-PowerHigh polyurethane tread and a cast iron centre. This is a swivel castor with a top plate. This version is available in diameters of 125–250 mm, widths of 50 mm and load capacities of 750–1250 daN at 4 km/h.

Manufacturer Tellure Rôta (distributed by Myzer)
Series TR-58GH-EEMHD
Design swivel castor / top plate
Tread material TR-PowerHigh polyurethane
Centre material cast iron

Selection table — item specifications

Code Ø D (mm) Width F (mm) Total height H (mm) Top plate A×B (mm) Load capacity at 4 km/h (daN) Rolling elements Weight (kg)
588303 125 50 182 135X110 750 Hub with ball bearings 4.88
588304 150 50 210 135X110 900 Hub with ball bearings 5.5
588314 160 50 215 135X110 900 Hub with ball bearings 5.65
588306 200 50 252 135X110 1100 Hub with ball bearings 6.77
588337 250 50 300 135X110 1250 Hub with ball bearings 6.77
