Strona główna Sklep Roues Thermoplastic polyurethane wheel, swivel castor NL with a top plate and a brake — TR-61CC-SRP-NL-FR

Fabricant : Tellure Rôta

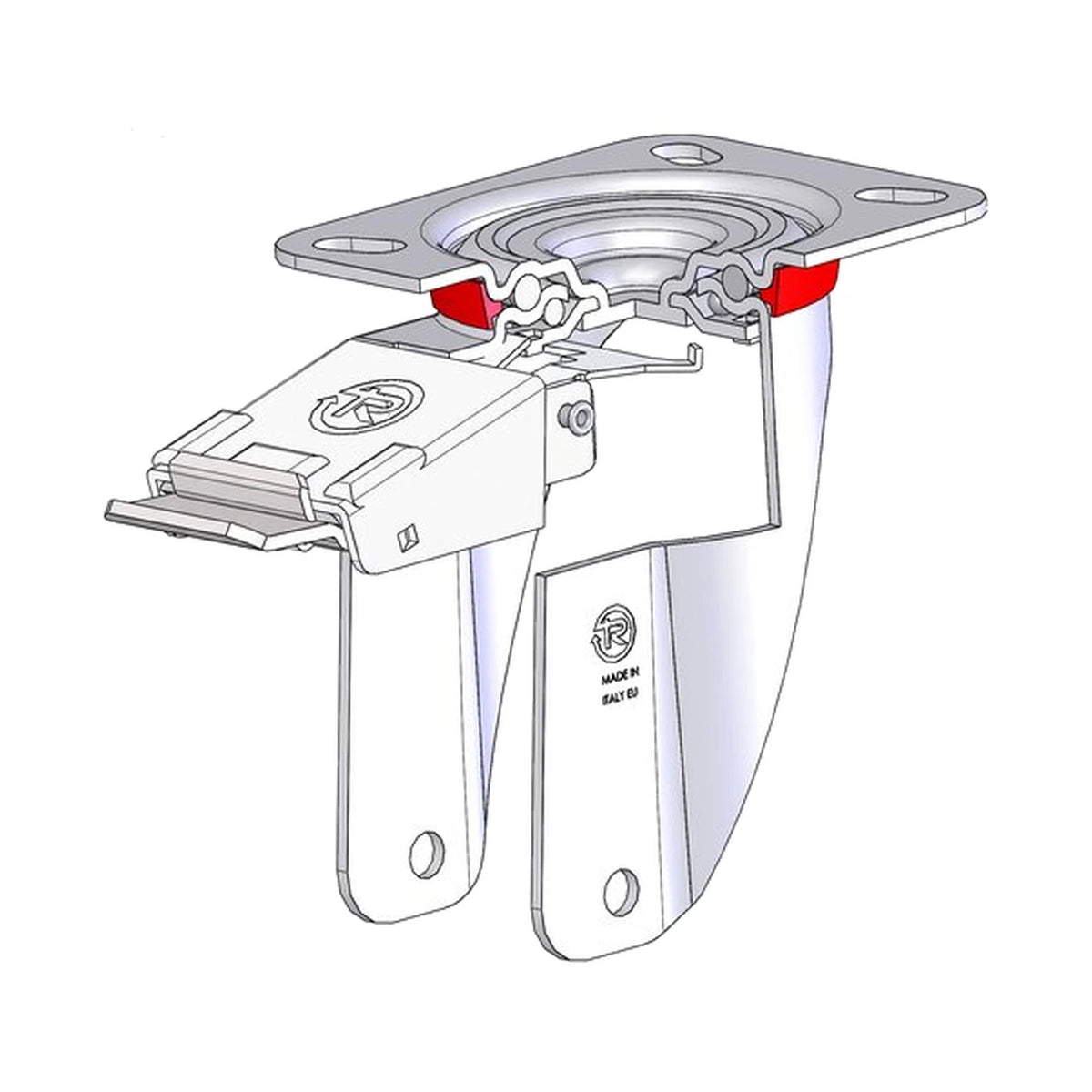

Thermoplastic polyurethane wheel, swivel castor NL with a top plate and a brake — TR-61CC-SRP-NL-FR

102,99 zł HT / pce

126,68 złbrutto

Dimensions (Ø×largeur)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×45 mm

Ø160×50 mm

Ø200×50 mm

Roulement

Hub with ball bearings

Kod produktu:

SKU:614901

Cena jednostkowa: 102,99 zł netto

Wartość netto (1 szt.) 102,99 zł

Podatek VAT (23%) 23,69 zł

Razem brutto 126,68 zł

Afficher tous les détails

The wheel has a thermoplastic polyurethane tread and a polyamide 6 centre. The swivel castor uses a top plate mounting with a brake. This version covers wheel diameters of 80–200 mm, widths of 30–50 mm and load capacities of 85–300 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-61CC-NL
Configuration	swivel castor / top plate / brake
Tread material	thermoplastic polyurethane
Centre material	polyamide 6

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
614901	80	30	107	100X85	85	Hub with ball bearings	0.77
614902	100	30	128	100X85	120	Hub with ball bearings	0.84
614903	125	35	156	100X85	180	Hub with ball bearings	1.02
614911	150	45	194	140X110	250	Hub with ball bearings	2.29
614910	160	50	199	140X110	275	Hub with ball bearings	2.39
614906	200	50	240	140X110	300	Hub with ball bearings	2.75
