TR polyurethane wheel, swivel castor M with a top plate and brake — TR-65AL-SRP-FR-M

330,58 zł HT / pce

406,61 złbrutto

Dimensions (Ø×largeur)

Ø150×40 mm

Ø160×50 mm

Ø200×50 mm

Roulement

Hub with ball bearings

Kod produktu:

SKU:659704

Cena jednostkowa: 330,58 zł netto

Wartość netto (1 szt.) 330,58 zł

Podatek VAT (23%) 76,03 zł

Razem brutto 406,61 zł

Afficher tous les détails

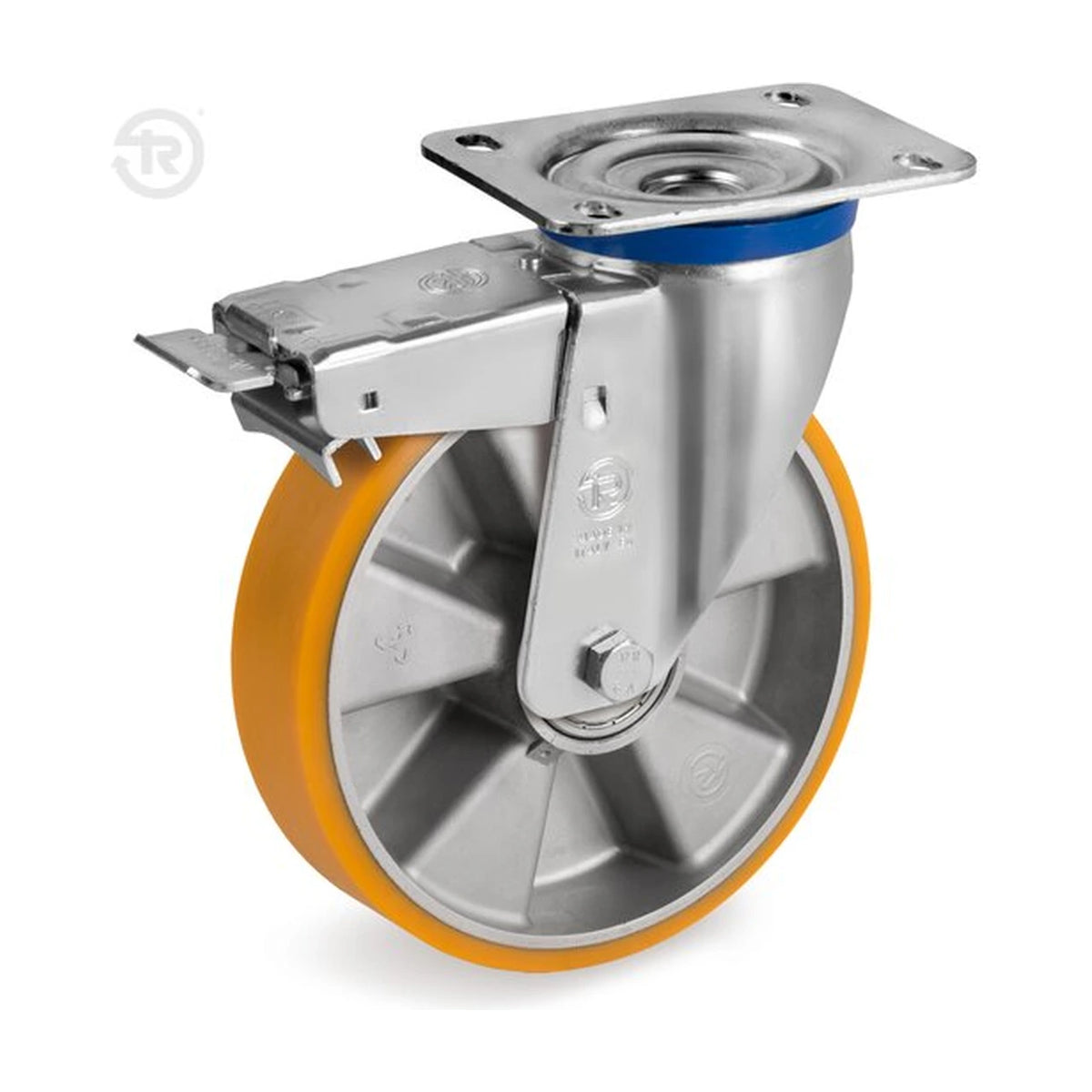

The wheel has a TR polyurethane tread and an aluminium centre. This is a swivel castor with a top plate and a brake. This version is available in diameters of 150–200 mm and widths of 40–50 mm. The load capacity is 500 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65AL-NL
Design	swivel castor / top plate / brake
Tread material	TR polyurethane
Centre material	aluminium

Select dimensions and rolling elements — full variant specifications are shown in the data table.

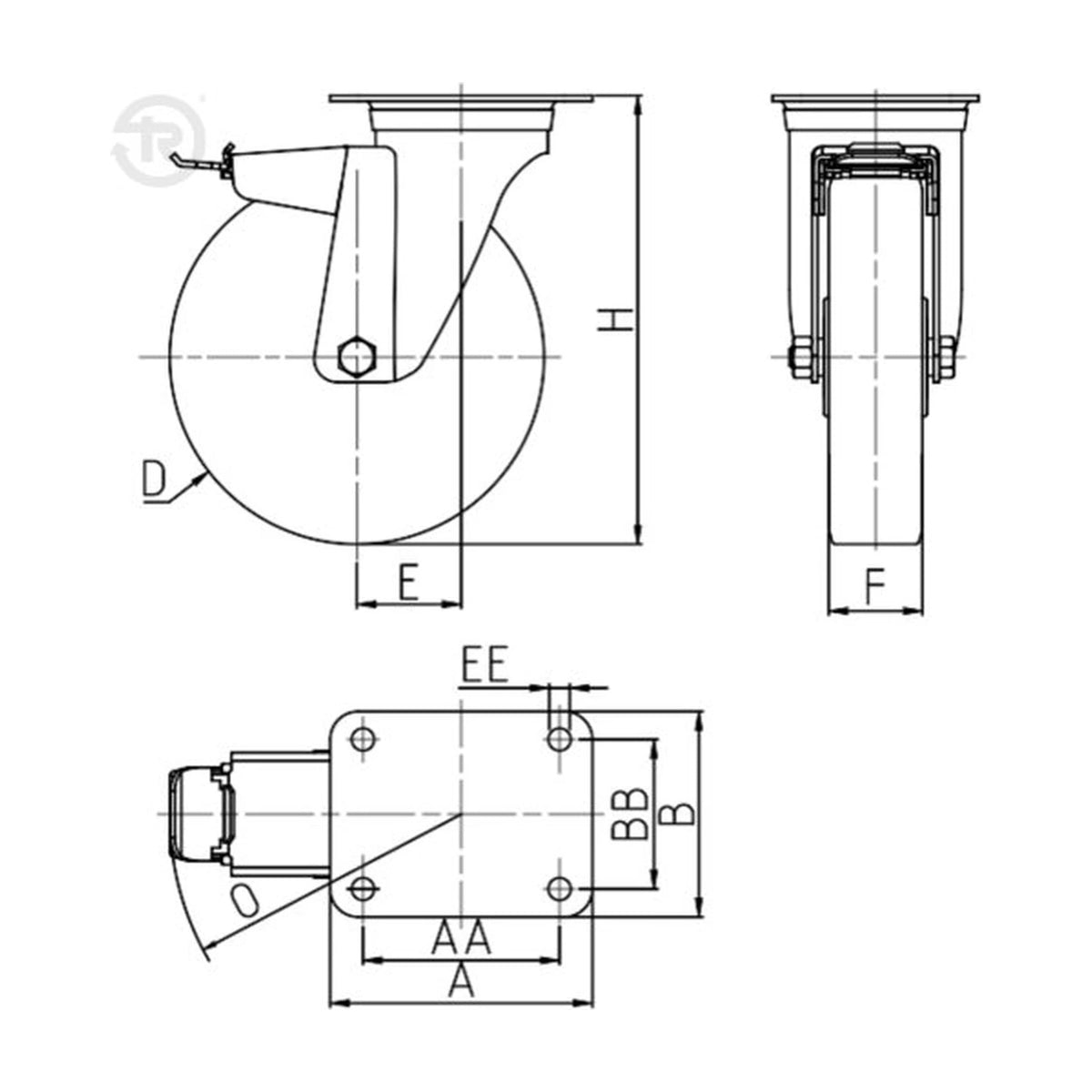

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
659704	150	40	194	140X110	105X80	11	58	500	Hub with ball bearings	2.91
659714	160	50	199	140X110	105X80	11	58	500	Hub with ball bearings	3.155
659706	200	50	240	140X110	105X80	11	50	500	Hub with ball bearings	3.74
