Strona główna Sklep Roues ESD TR polyurethane wheel, swivel castor (P) with a top plate — TR-65ESD-SRP-P

Fabricant : Tellure Rôta

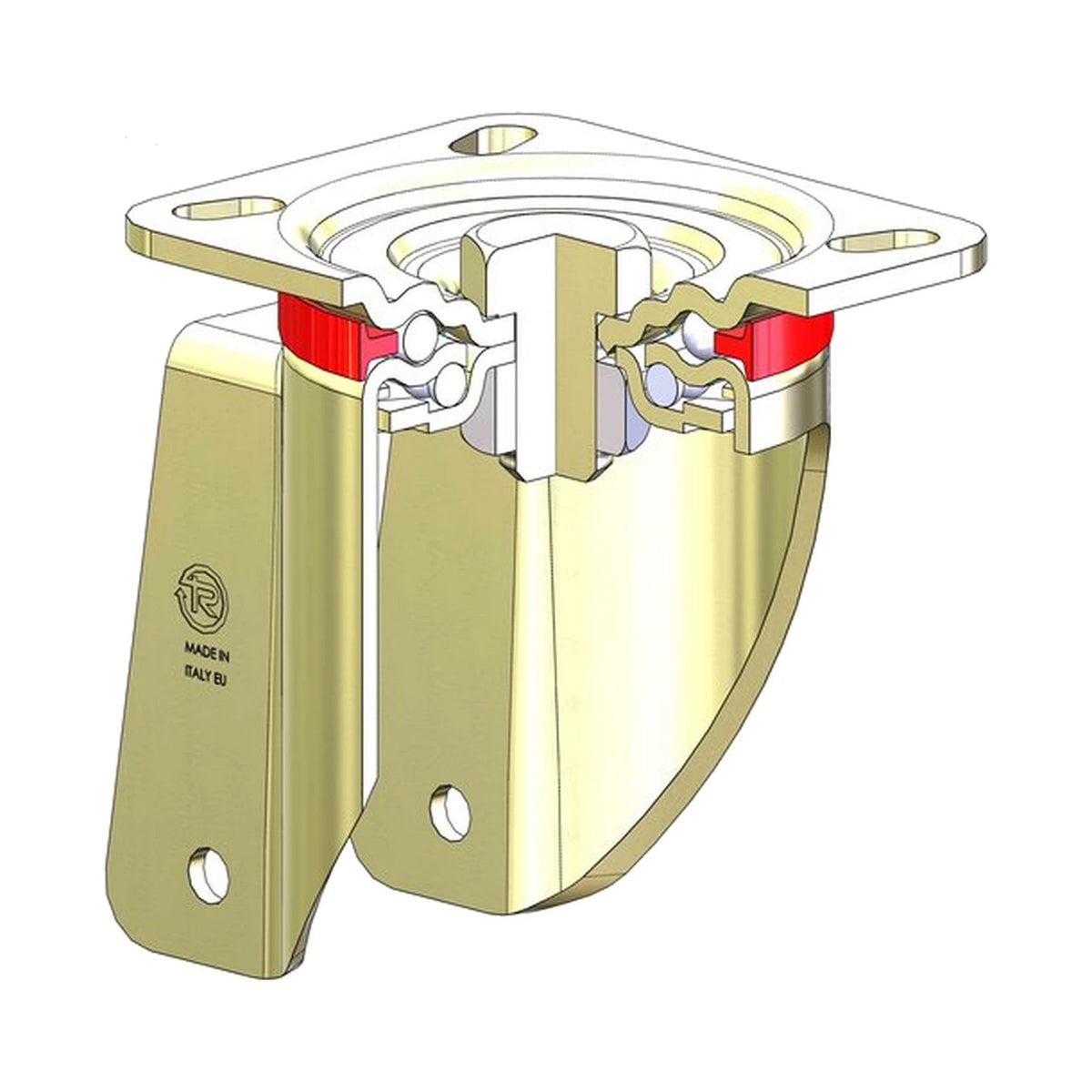

ESD TR polyurethane wheel, swivel castor (P) with a top plate — TR-65ESD-SRP-P

255,92 zł HT / pce

314,78 złbrutto

Dimensions (Ø×largeur)

Ø100×30 mm

Ø125×35 mm

Ø150×40 mm

Ø160×50 mm

Ø200×50 mm

Roulement

Hub with ball bearings

Kod produktu:

SKU:657602ESD

Cena jednostkowa: 255,92 zł netto

Wartość netto (1 szt.) 255,92 zł

Podatek VAT (23%) 58,86 zł

Razem brutto 314,78 zł

Afficher tous les détails

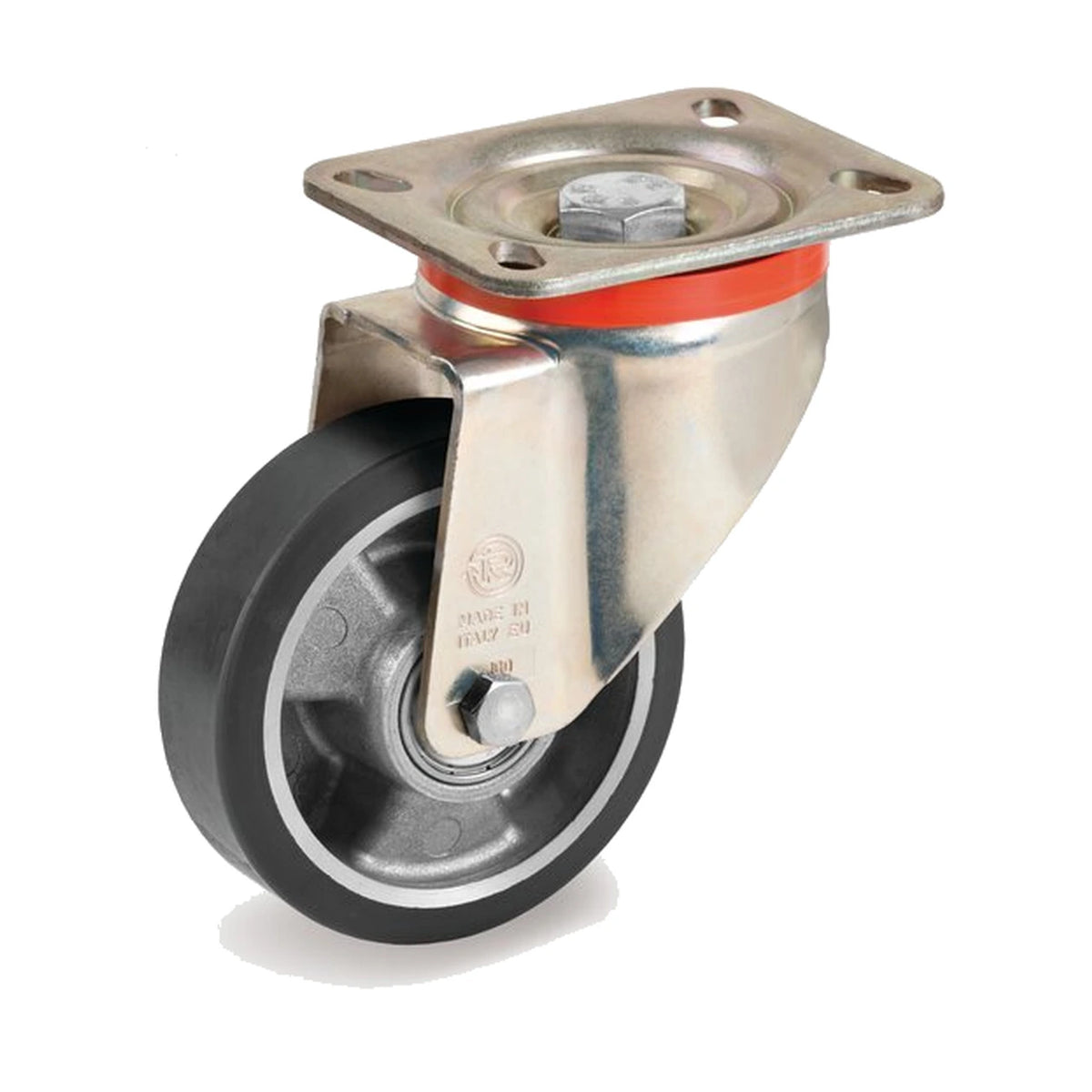

The wheel has an ESD TR polyurethane tread and an aluminium centre. This is a swivel castor with a top plate. The variants of this model cover diameters of 100–200 mm, widths of 30–50 mm and load capacities of 200–680 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65ESD-P-PT
Configuration	swivel castor / top plate
Tread material	ESD TR polyurethane
Centre material	aluminium

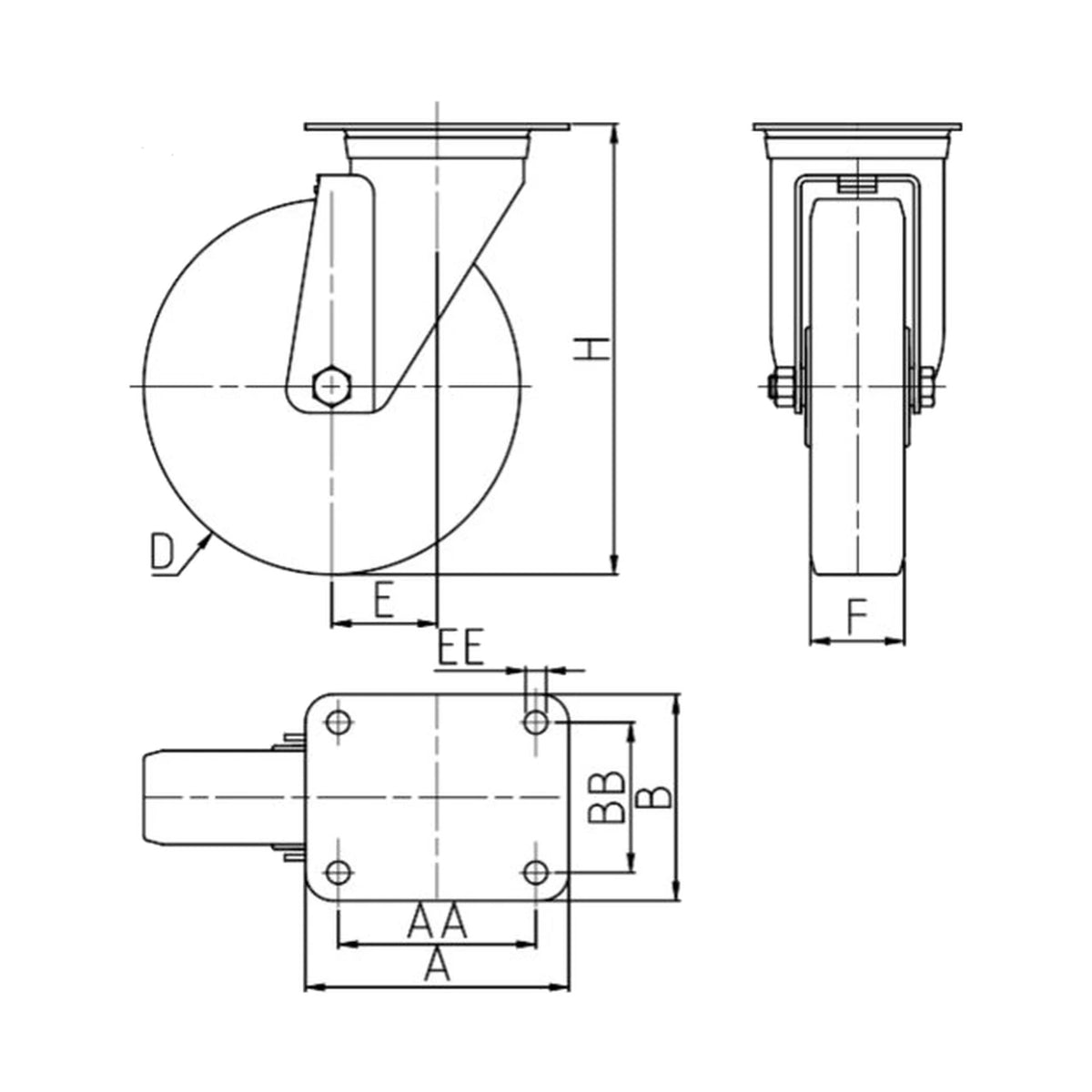

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Overall height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
657602ESD	100	30	138	100X85	200	Hub with ball bearings	1.2
657603ESD	125	35	161	100X85	320	Hub with ball bearings	1.39
657604ESD	150	40	200	140X110	480	Hub with ball bearings	3.18
657514ESD	160	50	205	140X110	640	Hub with ball bearings	3.52
657606ESD	200	50	250	140X110	680	Hub with ball bearings	3.94
