Strona główna Sklep Roues TR polyurethane wheel, swivel castor with a top plate and a brake — TR-65HT-SRP-EE-MHD-FR

Fabricant : Tellure Rôta

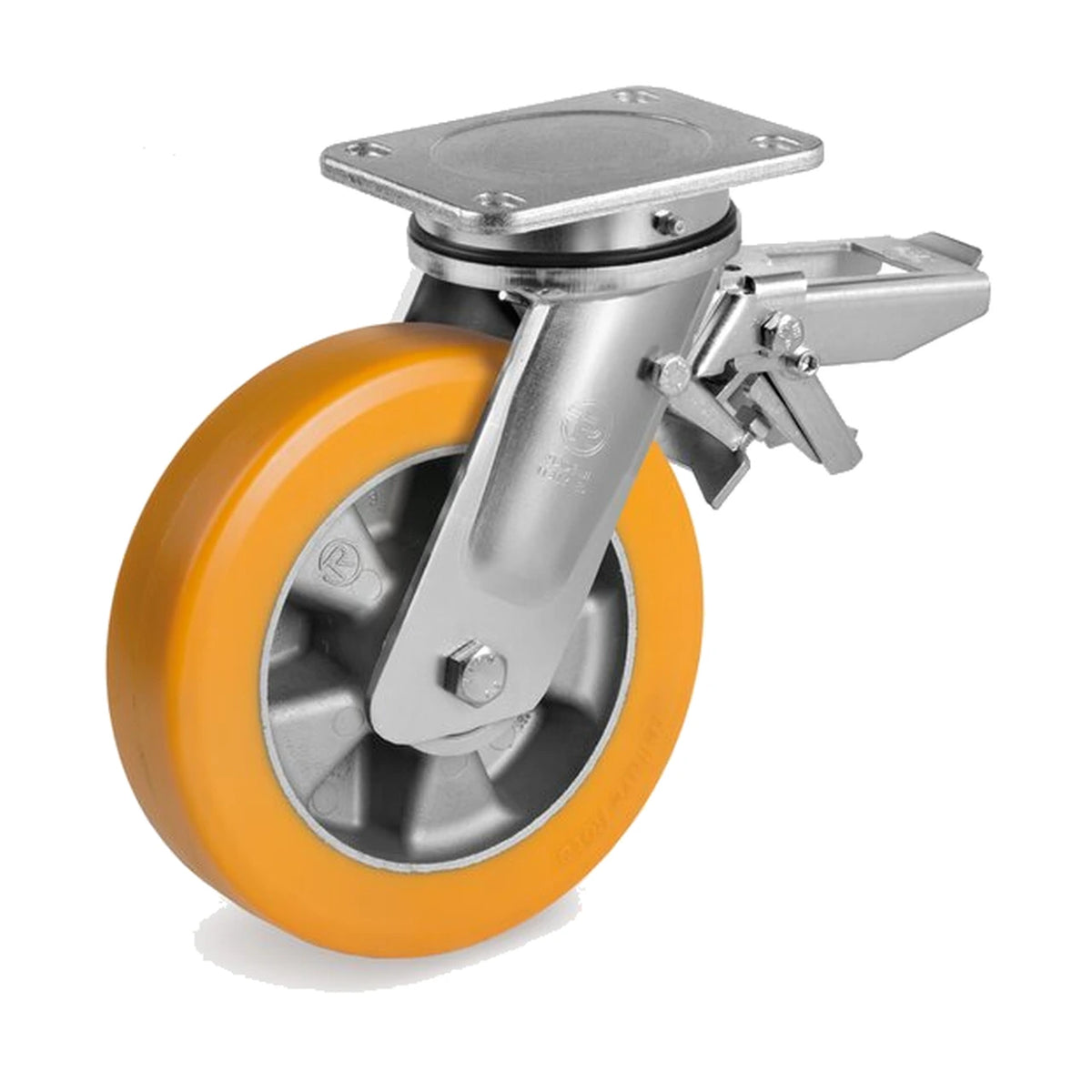

TR polyurethane wheel, swivel castor with a top plate and a brake — TR-65HT-SRP-EE-MHD-FR

710,75 zł HT / pce

874,22 złbrutto

Dimensions (Ø×largeur)

Ø100×40 mm

Ø125×40 mm

Ø160×50 mm

Ø180×50 mm

Ø200×50 mm

Roulement

Hub with ball bearings

Kod produktu:

SKU:655802

Cena jednostkowa: 710,75 zł netto

Wartość netto (1 szt.) 710,75 zł

Podatek VAT (23%) 163,47 zł

Razem brutto 874,22 zł

Afficher tous les détails

The wheel has a TR polyurethane tread and an aluminium centre. This is a swivel castor with a top plate and a brake. The variants of this model cover diameters of 100–200 mm, widths of 40–50 mm and load capacities of 350–800 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65HT-EEMHD
Configuration	swivel castor / top plate / brake
Tread material	TR polyurethane
Centre material	aluminium

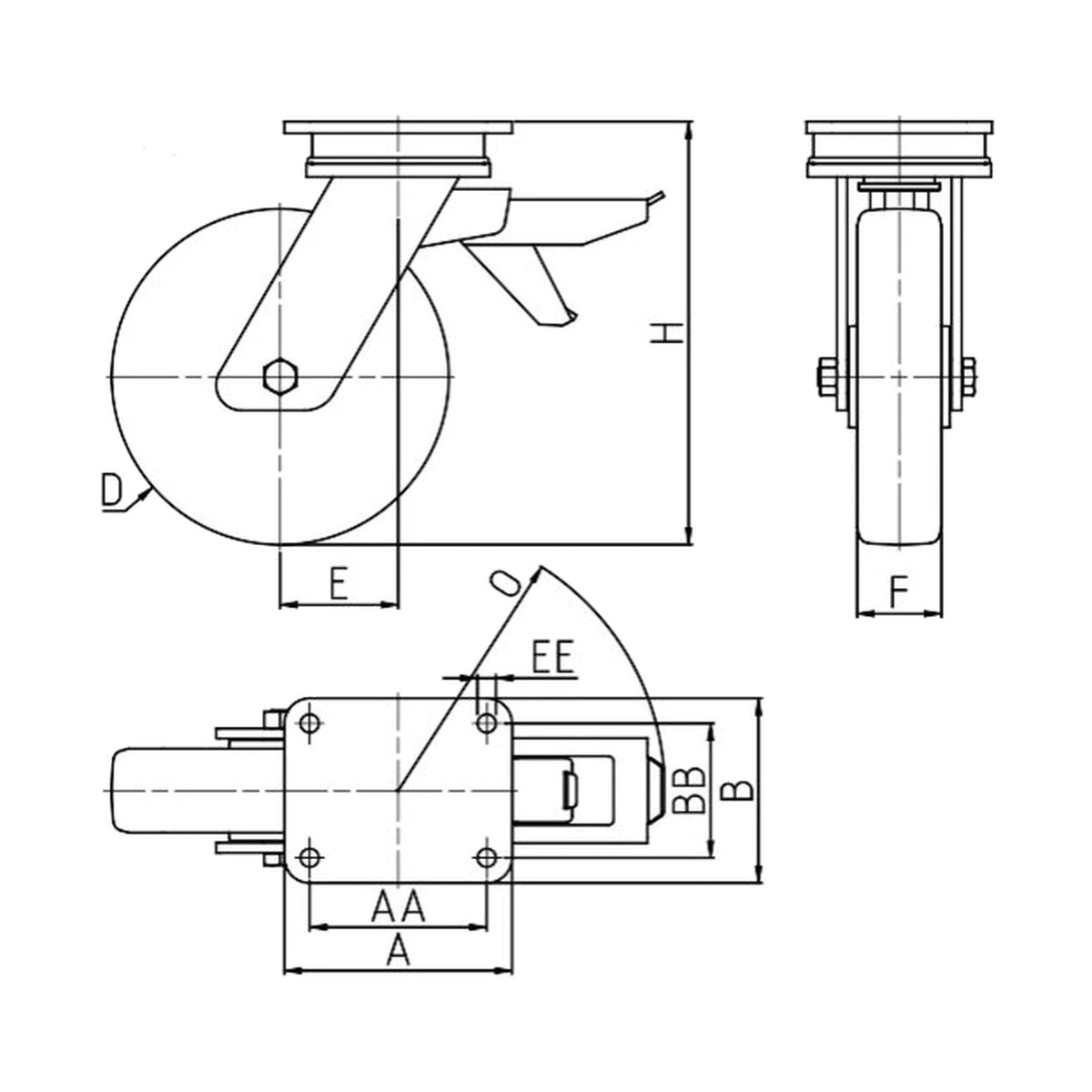

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Overall height H (mm)	Top plate A×B (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
655802	100	40	170	135X110	350	Hub with ball bearings	4.24
655803	125	40	182	135X110	450	Hub with ball bearings	4.56
655814	160	50	215	135X110	700	Hub with ball bearings	5.06
655805	180	50	242	135X110	750	Hub with ball bearings	5.45
655806	200	50	252	135X110	800	Hub with ball bearings	6.22
