TR polyurethane wheel, swivel castor NL with a bolt hole and brake — TR-65-ALL-CC-SRF-NL-FR

The wheel has a TR polyurethane tread and an aluminium centre. This is a swivel castor with a bolt hole and a brake. This version is available in diameters of 80–200 mm and widths of 25–50 mm. The load capacity is 200–300 daN at 4 km/h.
| Manufacturer | Tellure Rôta (distributed by Myzer) |
| Series | TR-65AL-NL |
| Design | swivel castor / bolt hole / brake |
| Tread material | TR polyurethane |
| Centre material | aluminium |
Select dimensions and rolling elements — full variant specifications are shown in the data table.
Selection table — item specifications

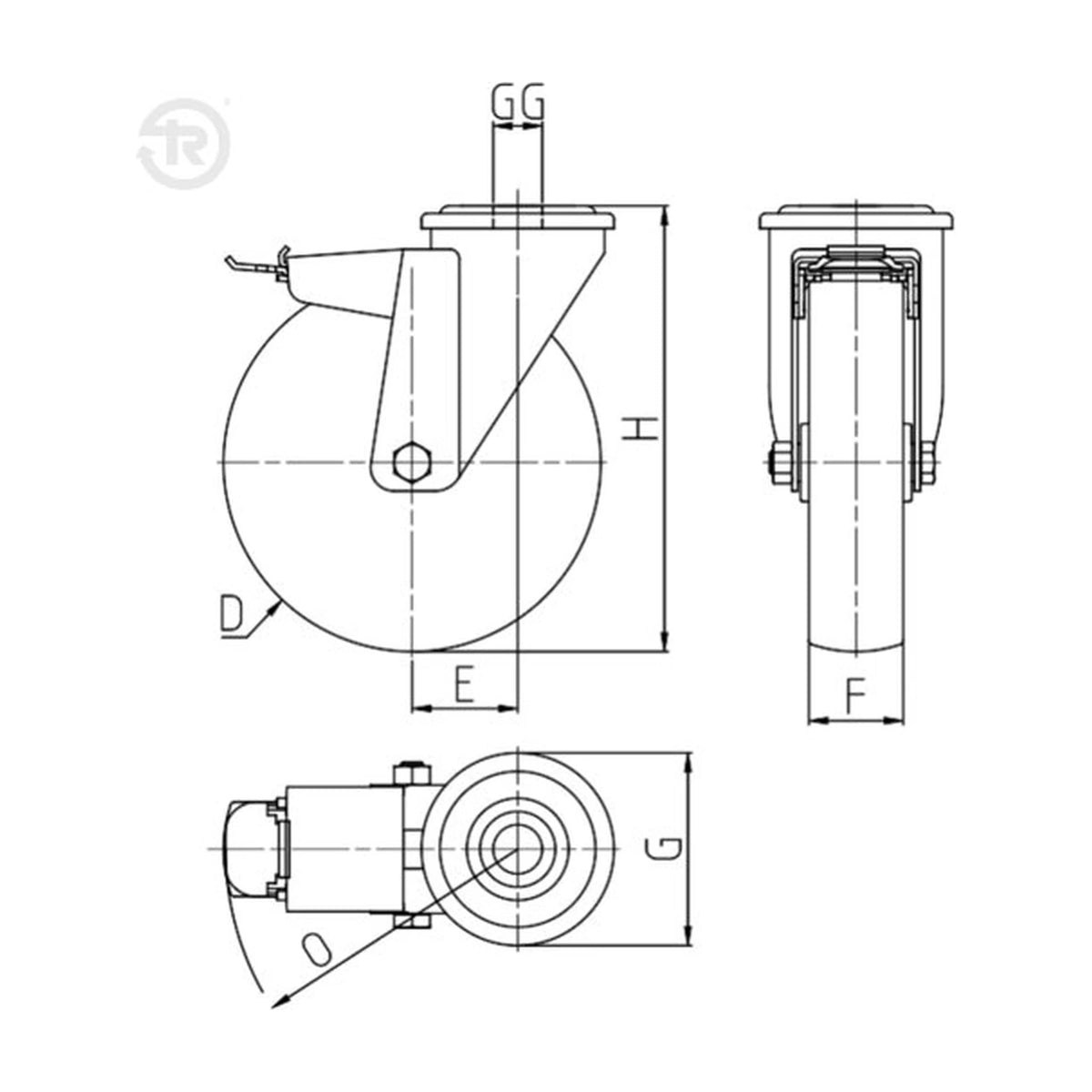

| Code | Ø D (mm) | Width F (mm) | Total height H (mm) | Top plate A×B (mm) | Mounting hole spacing AA×BB (mm) | Hole EE (mm) | Offset E (mm) | Load capacity at 4 km/h (daN) | Rolling elements | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 656801 | 80 | 25 | 107 | — | — | 12 | 40 | 200 | Hub with ball bearings | 0.69 |
| 656802 | 100 | 30 | 128 | — | — | 12 | 35 | 200 | Hub with ball bearings | 0.94 |
| 656803 | 125 | 35 | 156 | — | — | 12 | 37 | 220 | Hub with ball bearings | 1.097 |
| 656804 | 150 | 40 | 188 | — | — | 20 | 56 | 300 | Hub with ball bearings | 2.34 |
| 656814 | 160 | 50 | 193 | — | — | 20 | 56 | 300 | Hub with ball bearings | 2.827 |
| 656806 | 200 | 50 | 236 | — | — | 20 | 56 | 300 | Hub with ball bearings | 3.031 |
