TR polyurethane wheel, swivel castor NL with a top plate and brake — TR-65-SRP-NL-FRE

350,50 zł bez DPH / ks

431,12 złbrutto

Rozmer (Ø×šírka)

Ø160×50 mm

Ø200×50 mm

Ložisko

Hub with ball bearings

Kod produktu:

Jednotka SKU:654710

Cena jednostkowa: 350,50 zł netto

Wartość netto (1 szt.) 350,50 zł

Podatek VAT (23%) 80,62 zł

Razem brutto 431,12 zł

Zobraziť všetky podrobnosti

The wheel has a TR polyurethane tread and an aluminium centre. This is a swivel castor with a top plate and brake. This version is available in diameters of 160–200 mm and widths of 50 mm. The load capacity is 300 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-65AL-NL
Design	swivel castor / top plate / brake
Tread material	TR polyurethane
Centre material	aluminium

Select dimensions and rolling elements — full variant specifications are listed in the data table.

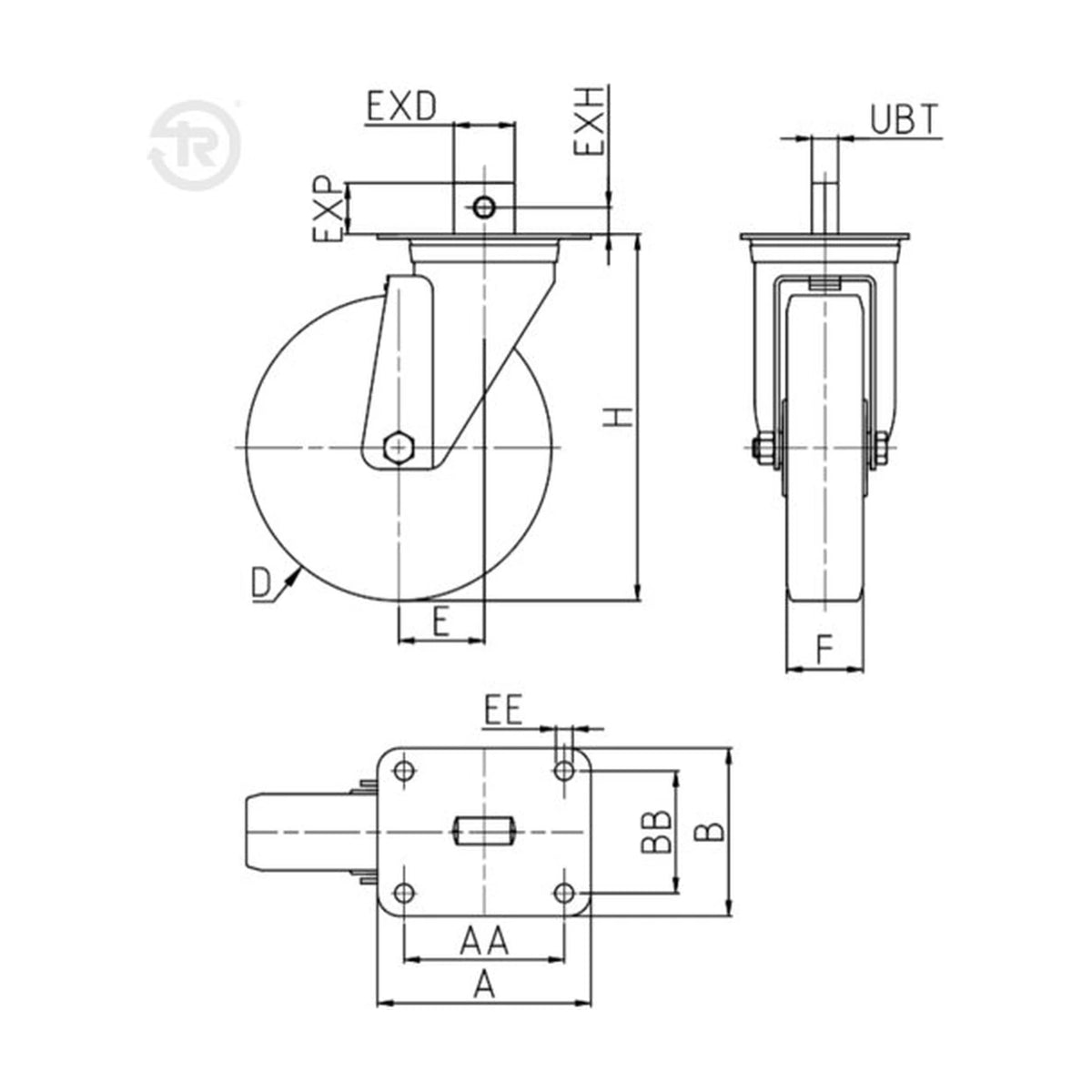

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Plate hole diameter EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
654710	160	50	199	140X110	105X80	11	56	300	Hub with ball bearings	2.84
654716	200	50	240	140X110	105X80	11	56	300	Hub with ball bearings	3.05
