Strona główna Sklep Roues Twin non-marking thermoplastic rubber wheels, swivel castor with a stem — TR-38-GEM-L-SRC

Fabricant : Tellure Rôta

Twin non-marking thermoplastic rubber wheels, swivel castor with a stem — TR-38-GEM-L-SRC

52,92 zł HT / pce

65,09 złbrutto

Dimensions (Ø×largeur)

Ø50×18+18 mm

Ø75×23+23 mm

Roulement

Plain bore

Kod produktu:

SKU:389302

Cena jednostkowa: 52,92 zł netto

Wartość netto (1 szt.) 52,92 zł

Podatek VAT (23%) 12,17 zł

Razem brutto 65,09 zł

Afficher tous les détails

The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a stem. The bracket is made of pressed galvanised steel. The variants of this version cover diameters of 50–75 mm and widths of 18+18–23+23 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-38-GEM
Design	swivel castor / stem
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

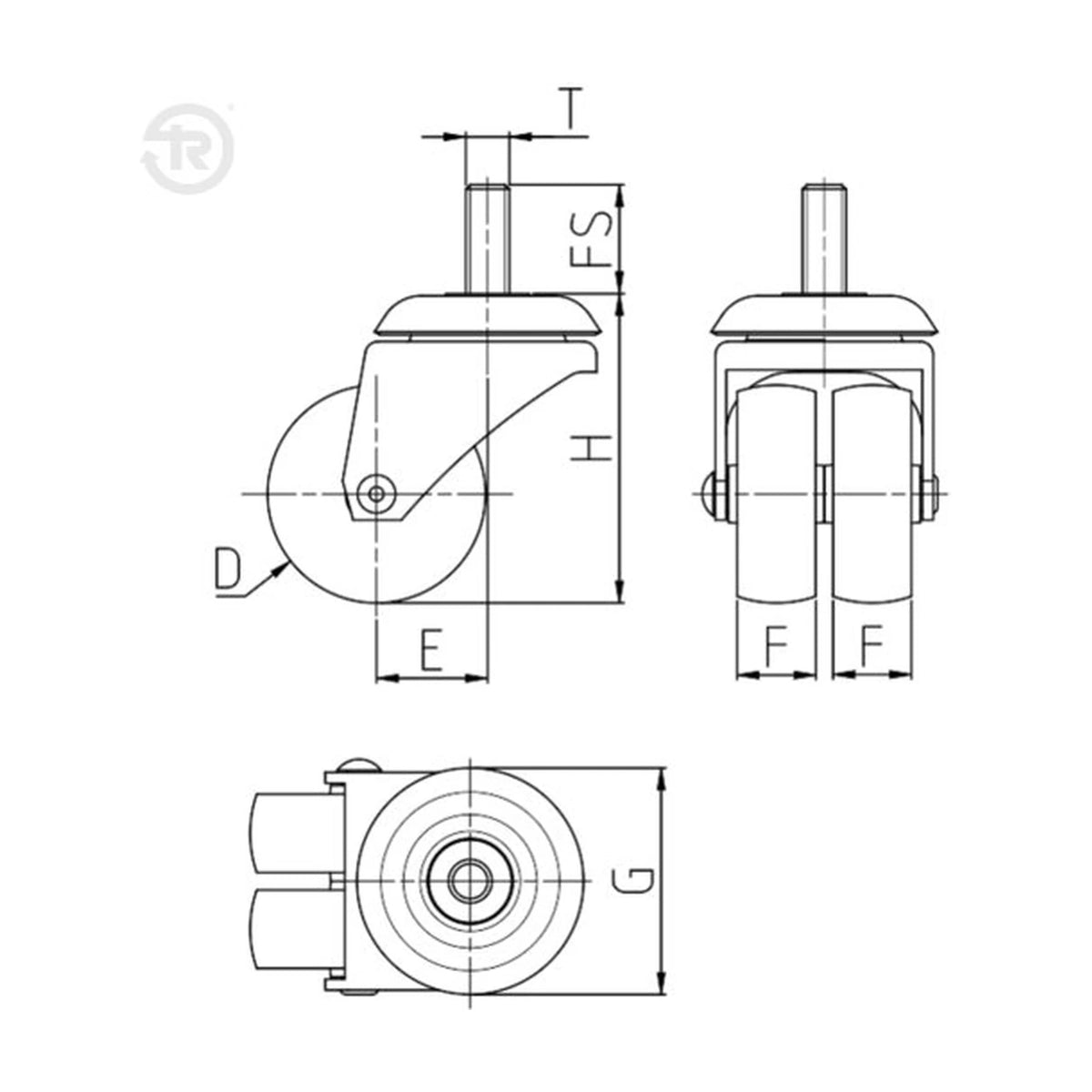

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
389302	50	18+18	71	—	—	—	31	—	Plain bore	0.24
389314	75	23+23	99	—	—	—	33	—	Plain bore	0.24

Autres produits de cette catégorie

Twin non-marking thermoplastic rubber wheels, swivel castor with a bolt hole and a brake — TR-38-GEM-L-SRF-FR

72,76 zł

Twin non-marking thermoplastic rubber wheels, swivel castor with a bolt hole — TR-38-GEM-L-SRF

52,06 zł

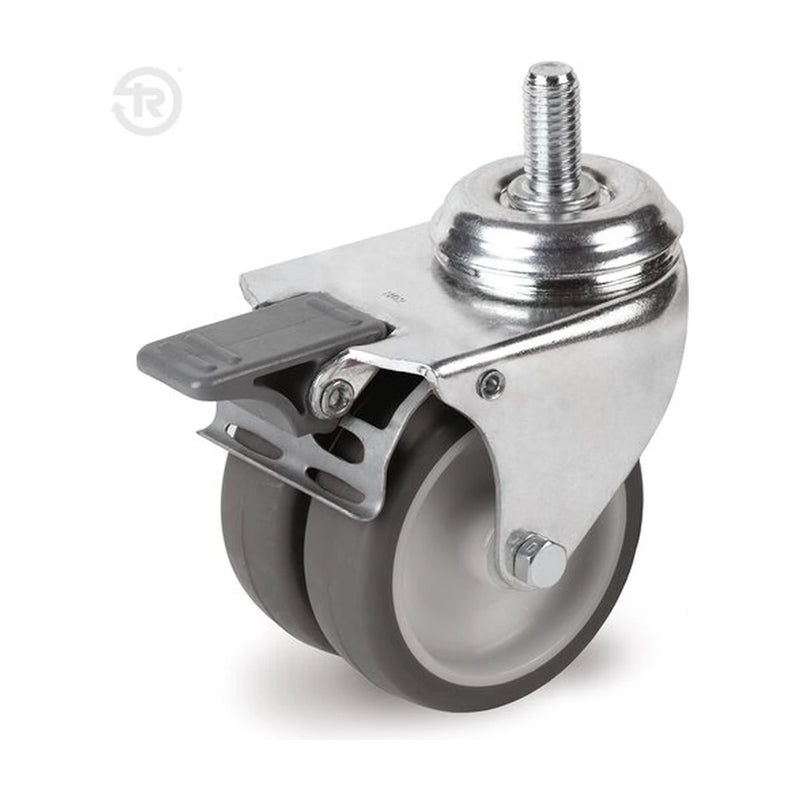

Twin non-marking thermoplastic rubber wheels, swivel castor with a stem and a brake — TR-38-GEM-L-SRC-FR
