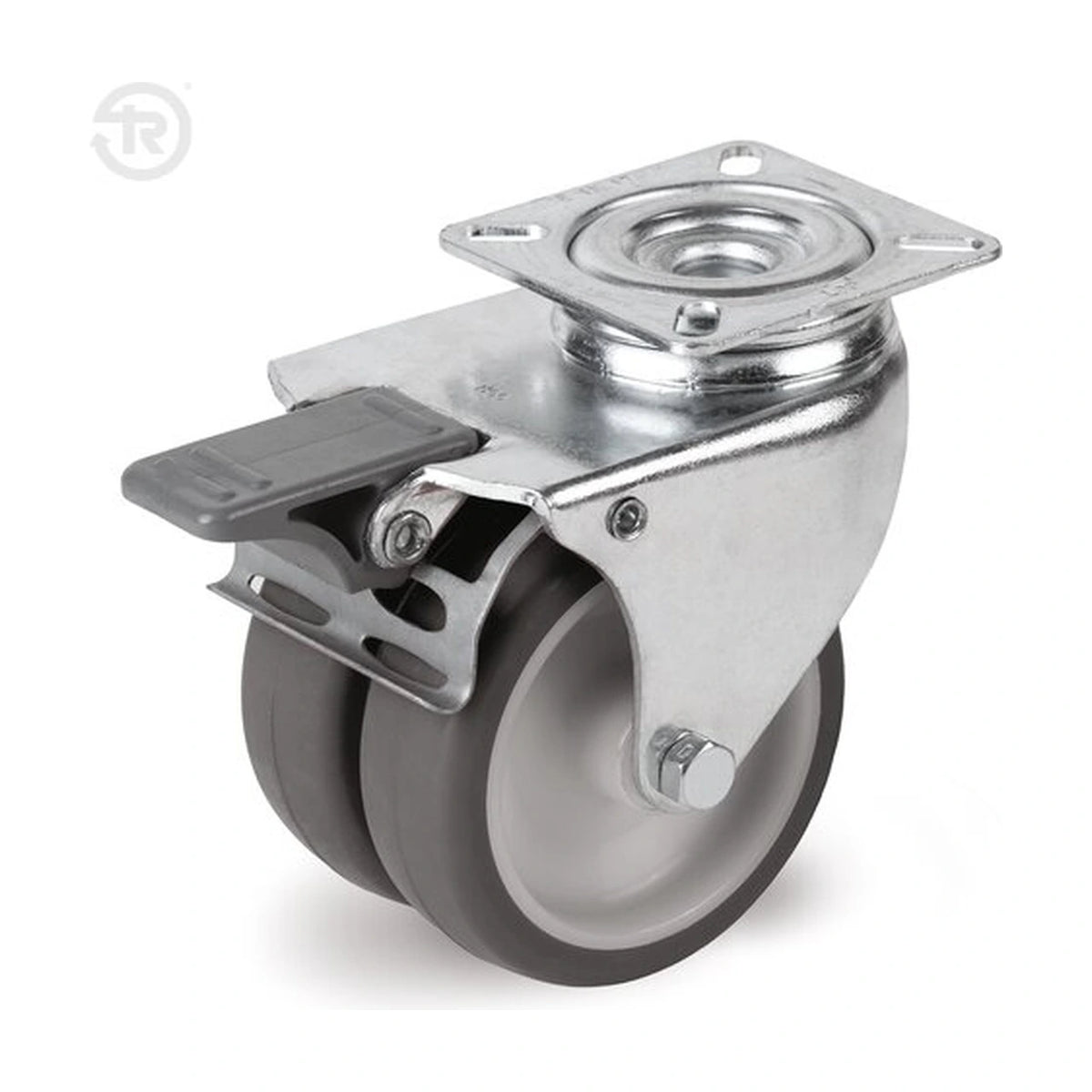

Twin non-marking thermoplastic rubber wheels, swivel castor with a top plate and a brake — TR-38-GEM-L-SRP-FR
Twin non-marking thermoplastic rubber wheels, swivel castor with a top plate and a brake — TR-38-GEM-L-SRP-FR
SKU:388402
The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a top plate and a brake. The bracket is made of pressed galvanised steel. The variants of this version cover diameters of 50–75 mm and widths of 18+18–23+23 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.
| Manufacturer | Tellure Rôta (distributed by Myzer) |
| Series | TR-38-GEM |
| Design | swivel castor / top plate / brake |
| Tread material | non-marking thermoplastic rubber |
| Centre material | polypropylene |
Select dimensions and rolling elements — full variant specifications are shown in the data table.
Selection table — item specifications

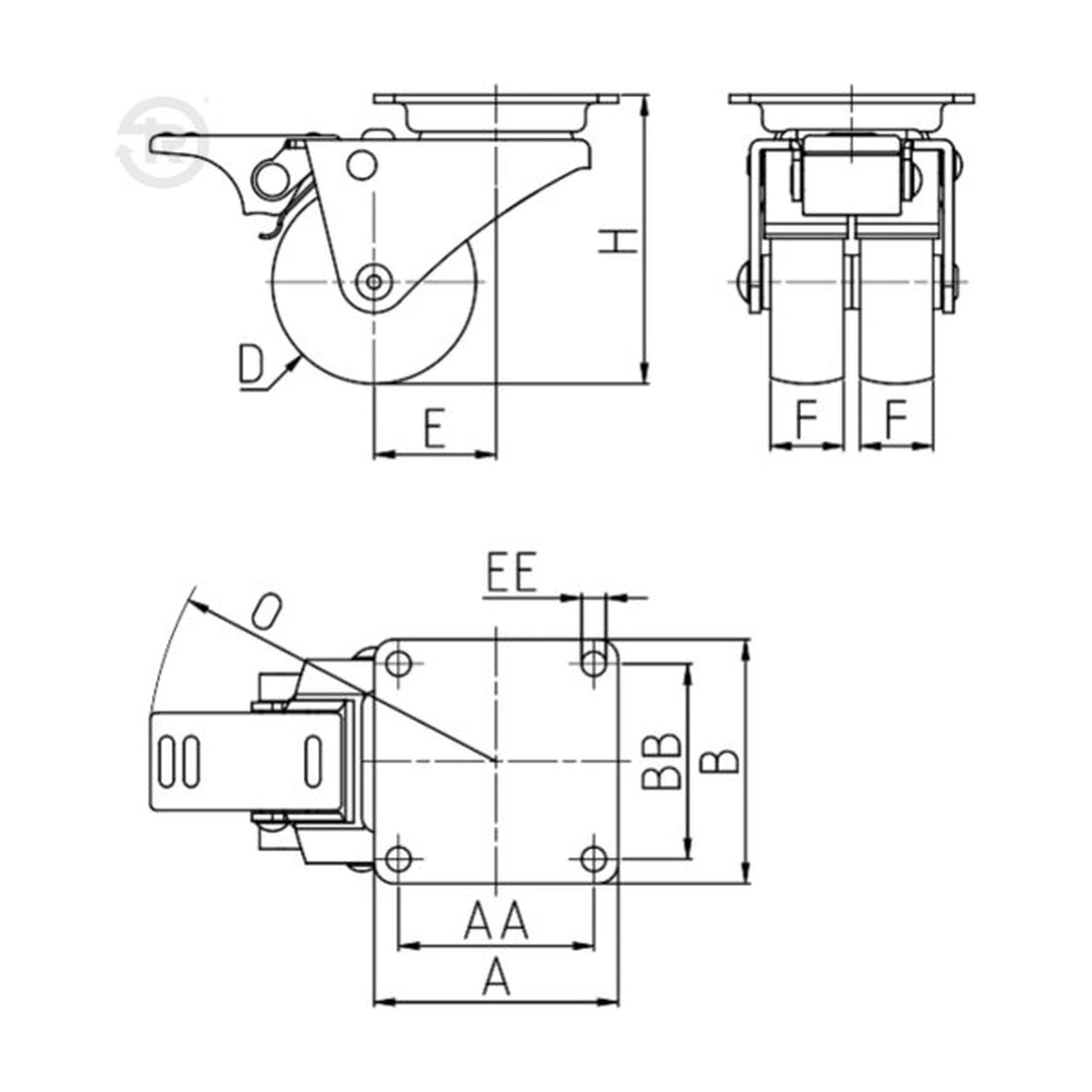

| Code | Ø D (mm) | Width F (mm) | Total height H (mm) | Top plate A×B (mm) | Mounting hole spacing AA×BB (mm) | Hole EE (mm) | Offset E (mm) | Load capacity at 4 km/h (daN) | Rolling elements | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 388402 | 50 | 18+18 | 71 | 60X60 | 45X45 | 6 | 28 | — | Plain bore | 0.24 |
| 388414 | 75 | 23+23 | 99 | 60X60 | 45X45 | 6 | 33 | — | Plain bore | 0.24 |
