Strona główna Sklep Roues Non-marking thermoplastic rubber wheel, swivel castor with a stem — TR-38-SRC

Fabricant : Tellure Rôta

Non-marking thermoplastic rubber wheel, swivel castor with a stem — TR-38-SRC

21,18 zł HT / pce

26,05 złbrutto

Dimensions (Ø×largeur)

Ø40×18 mm

Ø50×18 mm

Ø60×25 mm

Ø75×23 mm

Ø80×24 mm

Roulement

Plain bore

Tige

M8×15

M10×20

M12×25

Kod produktu:

SKU:386200

Cena jednostkowa: 21,18 zł netto

Wartość netto (1 szt.) 21,18 zł

Podatek VAT (23%) 4,87 zł

Razem brutto 26,05 zł

Afficher tous les détails

The wheel has a non-marking thermoplastic rubber tread and a polypropylene centre. This is a swivel castor with a stem. The bracket is made of pressed galvanised steel. The variants of this version cover diameters of 40–80 mm and widths of 18–25 mm. The manufacturer specifies the load capacity of this series at 3 km/h — the values are given in the technical data sheet.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-38-S
Design	swivel castor / stem
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

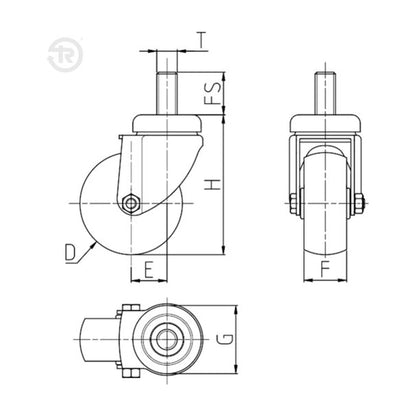

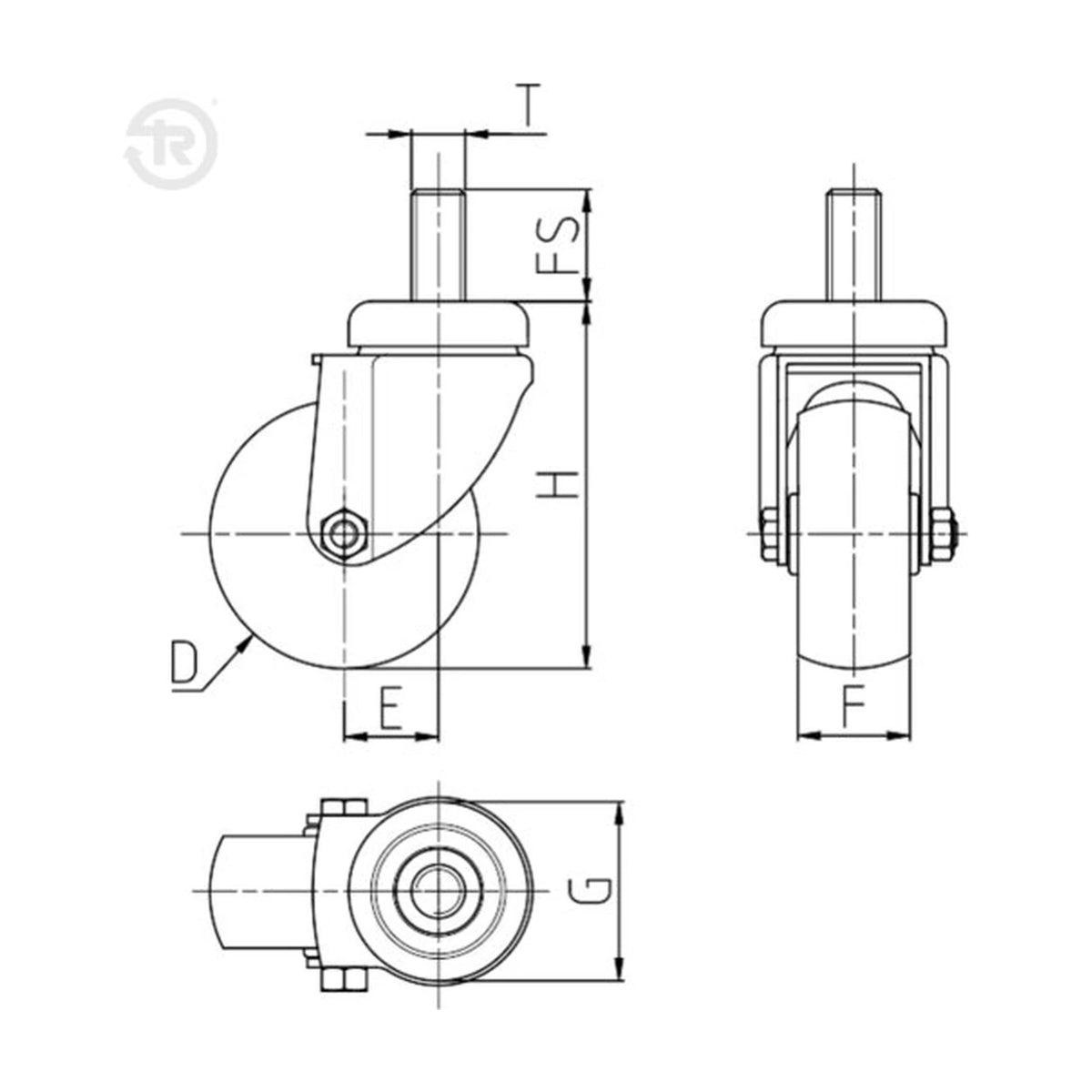

Code	Ø D (mm)	Width F (mm)	Total height H (mm)	Top plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
386200	40	18	59	—	—	—	24	—	Plain bore	0.095
386100	40	18	59	—	—	—	24	—	Plain bore	0.095
386201	50	18	66	—	—	—	24	—	Plain bore	0.11
386101	50	18	66	—	—	—	24	—	Plain bore	0.11
386402	60	25	83	—	—	—	21	—	Plain bore	0.22
386202	60	25	83	—	—	—	21	—	Plain bore	0.22
386603	75	23	101	—	—	—	30	—	Plain bore	0.26
386303	75	23	101	—	—	—	30	—	Plain bore	0.26
386403	80	24	104	—	—	—	30	—	Plain bore	0.28
386203	80	24	104	—	—	—	30	—	Plain bore	0.28

Autres produits de cette catégorie

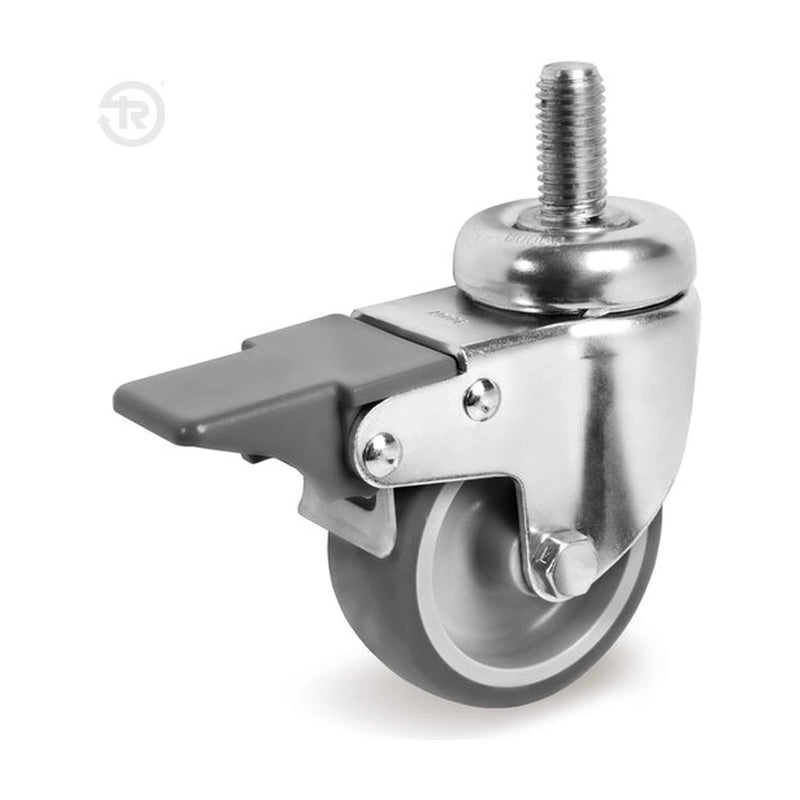

Non-marking thermoplastic rubber wheel, swivel castor with a stem and a brake — TR-38-SRC-FR
