Strona główna Sklep Roues Thermoplastic rubber wheel, fixed castor NL with a top plate — TR-71-SF-NL

Fabricant : Tellure Rôta

Thermoplastic rubber wheel, fixed castor NL with a top plate — TR-71-SF-NL

31,91 zł HT / pce

39,25 złbrutto

Dimensions (Ø×largeur)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×35 mm

Ø150×45 mm

Ø200×50 mm

Roulement

Plain bore

Hub with roller bearings

Kod produktu:

SKU:715701

Cena jednostkowa: 31,91 zł netto

Wartość netto (1 szt.) 31,91 zł

Podatek VAT (23%) 7,34 zł

Razem brutto 39,25 zł

Afficher tous les détails

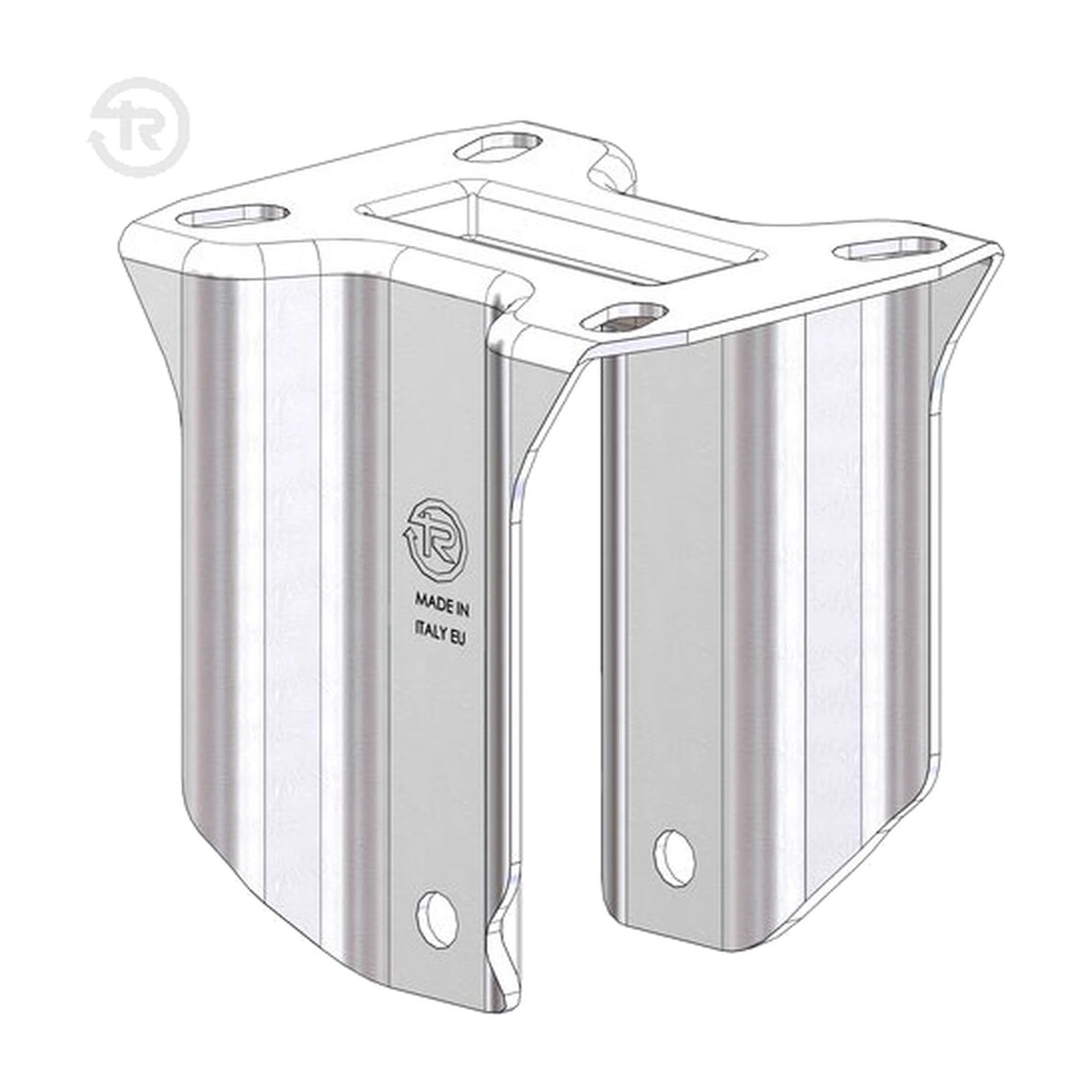

A grey, non-marking thermoplastic rubber tread with a hardness of 85 Shore A is paired with a polypropylene centre. The fixed NL bracket is made of pressed, zinc-plated steel. This castor is intended for trolleys used in internal logistics and lean operations. This version is available with diameters of 80–200 mm, widths of 30–50 mm and load capacities of 70–225 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-71-NL
Configuration	fixed castor / top plate
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Height H (mm)	Plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
715701	80	30	107	100X85	80X60	9	—	70	Plain bore	0.36
715901	80	30	107	100X85	80X60	9	—	70	Hub with roller bearings	0.38
715702	100	30	128	100X85	80X60	9	—	100	Plain bore	0.39
715902	100	30	128	100X85	80X60	9	—	100	Hub with roller bearings	0.39
715703	125	35	156	100X85	80X60	9	—	120	Plain bore	0.61
715903	125	35	156	100X85	80X60	9	—	120	Hub with roller bearings	0.62
715704	150	35	182	100X85	80X60	9	—	140	Plain bore	0.76
715904	150	35	182	100X85	80X60	9	—	140	Hub with roller bearings	0.81
715711	150	45	194	140X110	105X80	11	—	180	Plain bore	1.35
715911	150	45	194	140X110	105X80	11	—	180	Hub with roller bearings	1.4
715706	200	50	240	140X110	105X80	11	—	225	Plain bore	1.86
715906	200	50	240	140X110	105X80	11	—	225	Hub with roller bearings	2.02
