Strona główna Sklep Roues Thermoplastic rubber wheel, swivel castor NL with a top plate — TR-71-SRP-NL

Fabricant : Tellure Rôta

Thermoplastic rubber wheel, swivel castor NL with a top plate — TR-71-SRP-NL

45,33 zł HT / pce

55,76 złbrutto

Dimensions (Ø×largeur)

Ø80×30 mm

Ø100×30 mm

Ø125×35 mm

Ø150×35 mm

Ø150×45 mm

Ø200×50 mm

Roulement

Plain bore

Hub with roller bearings

Kod produktu:

SKU:714201

Cena jednostkowa: 45,33 zł netto

Wartość netto (1 szt.) 45,33 zł

Podatek VAT (23%) 10,43 zł

Razem brutto 55,76 zł

Afficher tous les détails

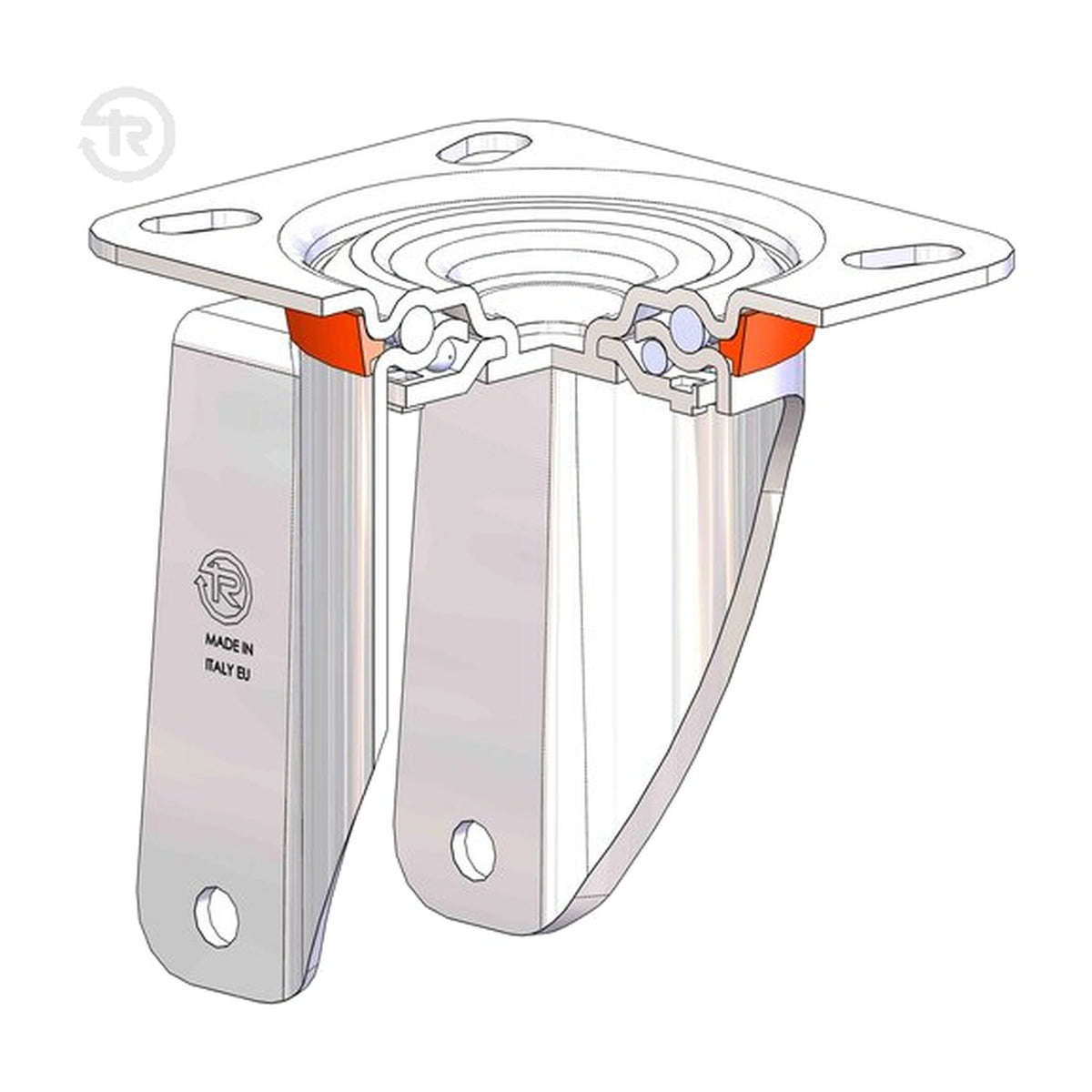

A grey, non-marking thermoplastic rubber tread with a hardness of 85 Shore A is paired with a polypropylene centre. The swivel NL bracket, made of pressed, zinc-plated steel, has a greased double ball race with a dust seal. This castor is intended for trolleys used in internal logistics and lean operations. This version is available with diameters of 80–200 mm, widths of 30–50 mm and load capacities of 70–225 daN at 4 km/h.

Manufacturer	Tellure Rôta (distributed by Myzer)
Series	TR-71-NL
Configuration	swivel castor / top plate
Tread material	non-marking thermoplastic rubber
Centre material	polypropylene

Select dimensions and rolling elements — full variant specifications are shown in the data table.

Selection table — item specifications

Code	Ø D (mm)	Width F (mm)	Height H (mm)	Plate A×B (mm)	Mounting hole spacing AA×BB (mm)	Hole EE (mm)	Offset E (mm)	Load capacity at 4 km/h (daN)	Rolling elements	Weight (kg)
714201	80	30	107	100X85	80X60	9	40	70	Plain bore	0.6
714501	80	30	107	100X85	80X60	9	40	70	Hub with roller bearings	0.61
714202	100	30	128	100X85	80X60	9	35	100	Plain bore	0.7
714502	100	30	128	100X85	80X60	9	35	100	Hub with roller bearings	0.71
714203	125	35	156	100X85	80X60	9	37	120	Plain bore	0.86
714503	125	35	156	100X85	80X60	9	37	120	Hub with roller bearings	0.87
714204	150	35	182	100X85	80X60	9	34	140	Plain bore	0.96
714504	150	35	182	100X85	80X60	9	34	140	Hub with roller bearings	1.11
714211	150	45	194	140X110	105X80	11	56	180	Plain bore	1.72
714511	150	45	194	140X110	105X80	11	56	180	Hub with roller bearings	1.87
714206	200	50	240	140X110	105X80	11	56	225	Plain bore	2.07
714506	200	50	240	140X110	105X80	11	56	225	Hub with roller bearings	2.1
