Thermoplastic rubber wheel, swivel castor NL with Zama expansion stem and a brake — TR-71-SRC-ZAMA-FR
Thermoplastic rubber wheel, swivel castor NL with Zama expansion stem and a brake — TR-71-SRC-ZAMA-FR
SKU:719303

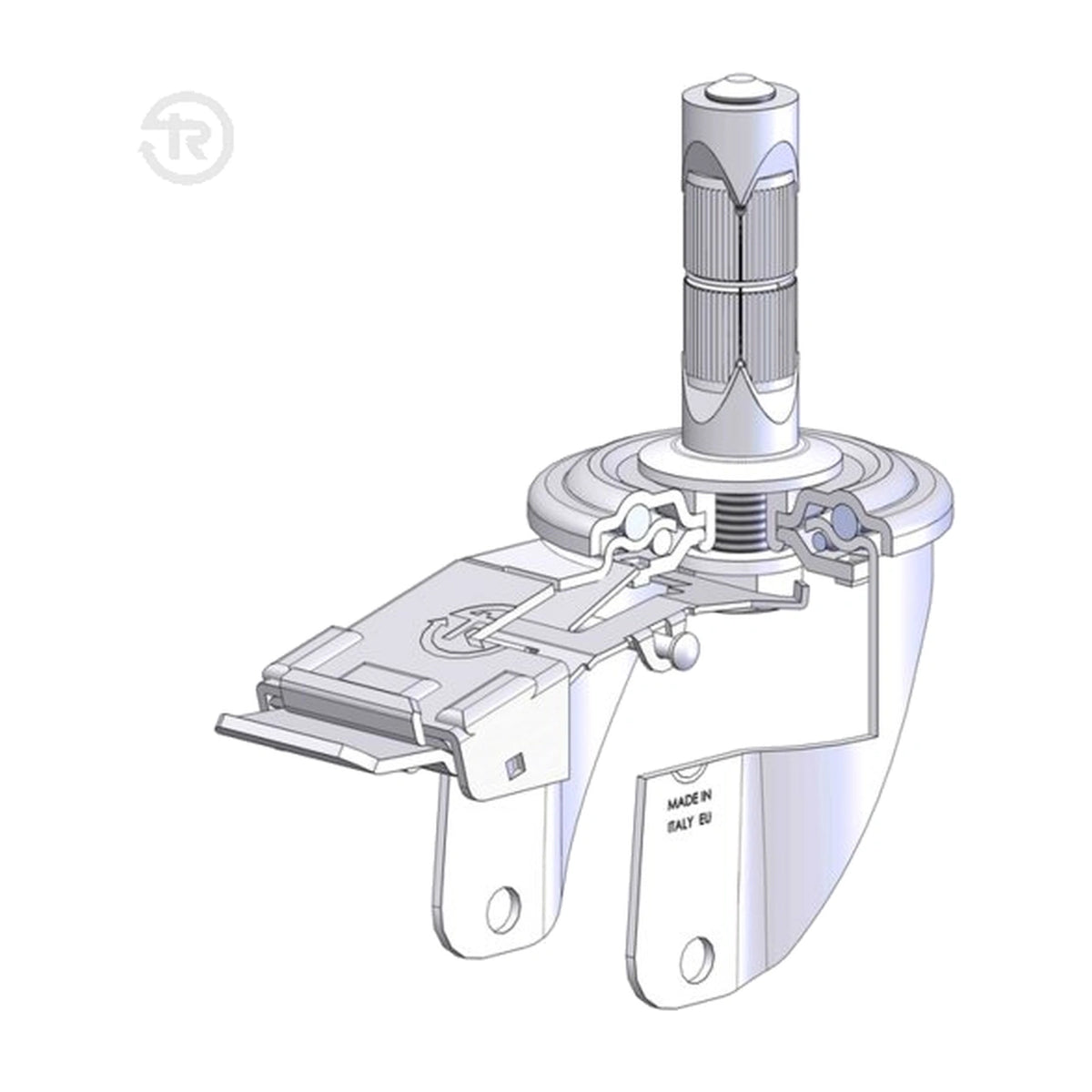

A grey, non-marking thermoplastic rubber tread with a hardness of 85 Shore A is paired with a polypropylene centre. The swivel NL bracket of pressed, zinc-plated steel has an expansion stem made of Zama alloy; the front brake locks both wheel rotation and swivel rotation. This castor is intended for trolleys used in internal logistics and lean operations. This version is available with diameters of 80–125 mm, widths of 30–35 mm and load capacities of 70–120 daN at 4 km/h.
| Manufacturer | Tellure Rôta (distributed by Myzer) |
| Series | TR-71-NL |
| Configuration | swivel castor / Zama expansion stem / brake |
| Tread material | non-marking thermoplastic rubber |
| Centre material | polypropylene |
Select dimensions and rolling elements — full variant specifications are shown in the data table.
Selection table — item specifications
| Code | Ø D (mm) | Width F (mm) | Height H (mm) | Plate A×B (mm) | Mounting hole spacing AA×BB (mm) | Hole EE (mm) | Offset E (mm) | Load capacity at 4 km/h (daN) | Rolling elements | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 719303 | 125 | 35 | 158 | — | — | — | 37 | 120 | Plain bore | 1.07 |
| 719301 | 80 | 30 | 109 | — | — | — | 40 | 70 | Plain bore | 0.83 |
| 719302 | 100 | 30 | 130 | — | — | — | 35 | 100 | Plain bore | 0.96 |
